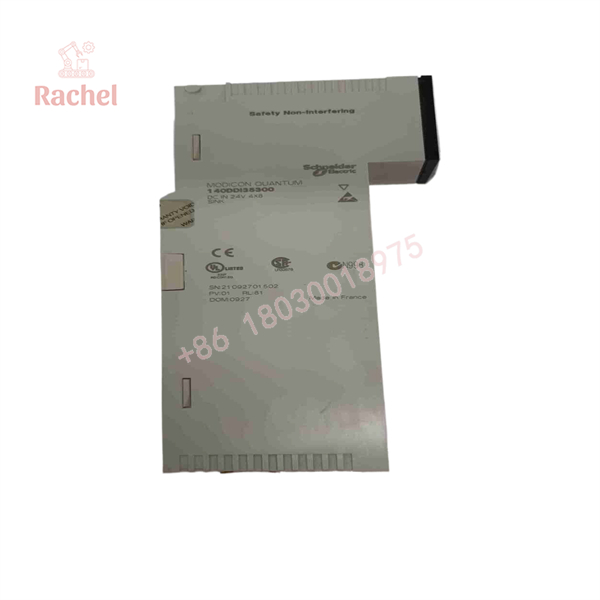

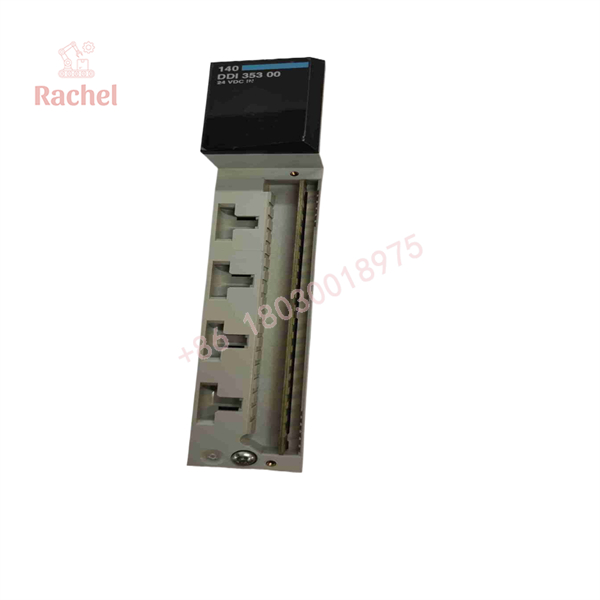

Schneider 140DDI35300 Quantum 32-Point 24VDC Input

Description

Product Introduction & Engineering Value

The 140DDI35300 is a high-density digital input module for Quantum PLC racks. Its 32 channels are arranged as four groups of eight, making it suitable for collecting field signals such as limit switches, motor auxiliary contacts, valve-position feedback, pressure-switch contacts, and equipment permissives.

The electrical characteristics matter more than the channel count when replacing one in an operating plant. The module expects a 24 VDC signal, recognizes 15–30 VDC as a guaranteed logic-1 range, and provides ≤1 ms transition response.



Technical Specifications

Specification	140DDI35300
Platform	Modicon Quantum
Module Type	Low-voltage DC discrete input
Number of Inputs	32
Channel Grouping	4 × 8 channels
Nominal Input Voltage	24 VDC
Input Voltage Range	19.2–30 VDC
Logic 1 Guaranteed	15–30 VDC
Logic 0 Guaranteed	−3 to 5 VDC
Input Impedance	2,500 Ω
Response Time	≤1 ms OFF→ON; ≤1 ms ON→OFF
Bus Current Requirement	330 mA
Isolation: Group to Bus	1,780 Vrms for 1 minute
Isolation: Group to Group	500 Vrms for 1 minute
Operating Temperature	0–60°C
Storage Temperature	−40–85°C
Relative Humidity	Up to 95%, non-condensing
Weight	0.30 kg

The published electrical specifications include 19.2–30 VDC input limits, 2,500 Ω input impedance, ≤1 ms response time in either direction, 1,780 Vrms group-to-bus isolation, and 330 mA bus consumption.

Front-Panel Diagnostics

The module provides:

• 32 green LEDs for individual input status
• Green LED indicating bus communication
• Red fault LED for an external fault condition

This makes channel-level troubleshooting considerably easier than diagnosing an input failure solely through the PLC application.

Field Application & “Trench” Experience

Field Scenario: Motor Permissive Signals Suddenly Drop

Consider a legacy Quantum rack controlling several process pumps. The 140DDI35300 receives motor auxiliary contacts, local/remote selectors, overload relay contacts, and permissive signals.

An operator reports that several permissives disappear simultaneously.

A technician who immediately replaces the CPU may waste hours. If multiple inputs disappear together, first inspect:

1. The 24 VDC field supply.
2. Common wiring shared by the affected input group.
3. Terminal blocks and fuse distribution.
4. The module’s individual input LEDs.
5. The Quantum I/O diagnostic status.
6. The module-to-rack connection.
7. Only then, the 140DDI35300 itself.

The four groups of eight inputs are particularly useful diagnostically. If all eight signals in one group disappear together while other groups remain healthy, investigate the common field supply/wiring path before replacing the entire module.

Niche Applications

• Motor control permissive collection for pumps, compressors, and conveyors.
• Valve-position feedback in process skids and utility systems.
• Boiler and burner auxiliary status monitoring where numerous discrete contacts terminate in a Quantum rack.
• Remote equipment interlock panels requiring dense 24 VDC digital input capacity.



QA & Testing SOP

For a New Surplus or Refurbished 140DDI35300, a meaningful acceptance test should verify both individual channels and group behavior.

Recommended inspection sequence

1. Part-number verification

Confirm the physical label reads:

140DDI35300

Do not substitute a visually similar Quantum digital input module without checking voltage, logic type, channel count, and electrical characteristics.

2. Physical inspection

Check:

• Backplane connector
• Terminal/field connector interface
• Housing
• LED panel
• Mounting hardware
• Signs of corrosion or contamination
• Evidence of overheating

3. Input simulation

Apply controlled 24 VDC signals to all 32 channels individually.

Verify:

• Correct ON indication
• Correct OFF indication
• No stuck channel
• No intermittent LED behavior
• ≤1 ms response where appropriate test equipment is available

4. Group testing

Test all four 8-channel groups independently. This is important because a fault affecting an entire group may indicate a wiring or isolation problem rather than 32 independent channel failures.

5. Rack-level verification

Install the module in a known-good Quantum rack and confirm:

• Bus communication
• I/O registration
• Correct input-state reporting
• No external-fault indication
• Stable operation during repeated signal transitions



⚠️ Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing 24 VDC with 24 VAC Quantum modules

The 140DDI35300 is specifically a 24 VDC input module. The Quantum family also contains AC and other discrete-input variants. Confirm the exact electrical designation before installation.

⚠️ Trap #2 — Ignoring the positive/sink input logic

The module uses positive (sink) input logic. A field circuit wired according to a different sourcing/sinking convention can produce inputs that appear permanently OFF or behave unexpectedly.

⚠️ Trap #3 — Replacing the module because one LED is dark

A single inactive input may simply represent a genuine field OFF condition. Before condemning the module, measure the voltage at the actual input terminal and compare it with the PLC’s expected logic state.

PRO TIP — Use the 4 × 8 grouping during troubleshooting

When eight related signals disappear at once, the group structure is a diagnostic clue. Check common field power, wiring, and terminal distribution before replacing the Quantum module.



Lifecycle & Replacement Strategy

The 140DDI35300 is a legacy Quantum component.

Schneider’s U.S. product page records the module as discontinued on December 31, 2022, while its current U.S. listing gives December 31, 2030 as the end-of-service date. Schneider regional pages can show different commercial dates, so the applicable market should be checked for a specific plant.

Schneider’s recommended replacement is the Modicon X80 BMXDDI3202K, a 32-input, 24 VDC positive-logic module.

That replacement should not be treated as a simple plug-in substitute. A migration assessment should consider:

• Quantum rack architecture
• Field connector and wiring
• I/O addressing
• Controller platform
• Application software
• I/O mapping
• Existing safety architecture
• M340/M580/X80 rack requirements

Spare Inventory Recommendation

For an operating Quantum installation:

• Keep at least one tested 140DDI35300 for each high-criticality application.
• Separate New Surplus and Refurbished inventory records.
• Record hardware revision and serial/traceability information.
• Keep compatible field connectors available.
• Maintain a validated I/O channel list for each rack.
• Monitor the number of installed Quantum racks using this exact module.
• Plan a controlled migration before the final spare is consumed.



Dynamic FAQ

What is the Schneider 140DDI35300?

It is a 32-channel, 24 VDC discrete input module for the Modicon Quantum PLC platform. The inputs are arranged as four groups of eight.

What voltage does the 140DDI35300 use?

The nominal input voltage is 24 VDC, with a specified input range of 19.2–30 VDC. A guaranteed logic-1 signal is 15–30 VDC, while a guaranteed logic-0 range is −3 to 5 VDC.

How many inputs does it have?

The module has 32 discrete inputs, divided into four groups of eight. It requires two input words for addressing.

What replaces the 140DDI35300?

Schneider recommends BMXDDI3202K, a Modicon X80 32-input, 24 VDC positive-logic discrete input module. It should be evaluated as part of an X80/M340/M580 migration rather than assumed to be a direct Quantum drop-in replacement.

Is a New Surplus 140DDI35300 still useful?

Yes. For plants still operating Quantum racks, a tested original 140DDI35300 can be a valuable maintenance spare because migrating the rack to X80 requires engineering work.

How should a refurbished 140DDI35300 be tested?

At minimum, verify the exact part number, inspect the connector and housing, power the module in a compatible Quantum rack, and individually stimulate the 32 inputs. For critical applications, verify all four input groups and confirm correct PLC I/O status.

What warranty applies to a surplus unit?

Warranty coverage depends on the supplier and condition. New Surplus, Refurbished, and Used units should be quoted and warranted separately. For critical spare inventory, obtain the functional warranty and return conditions in writing.



Bottom Line

Schneider Electric 140DDI35300 is a 32-point, 24 VDC discrete input module for Modicon Quantum, organized as four groups of eight positive/sink inputs. Its ≤1 ms response time, 330 mA bus requirement, and group-to-bus isolation make it well suited to dense digital signal collection in legacy Quantum control systems.

For existing Quantum installations, the part remains a practical critical spare. For long-term modernization, Schneider points to the BMXDDI3202K X80 module, but the migration must account for rack, addressing, wiring, software, and controller architecture rather than treating the replacement as a simple one-for-one swap.
