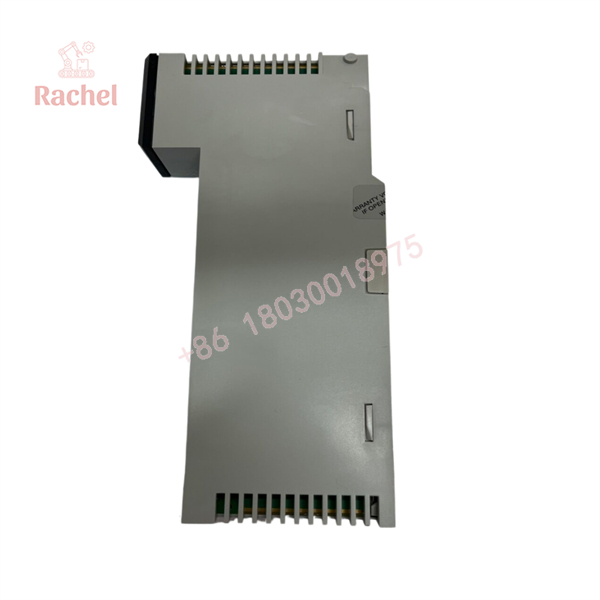

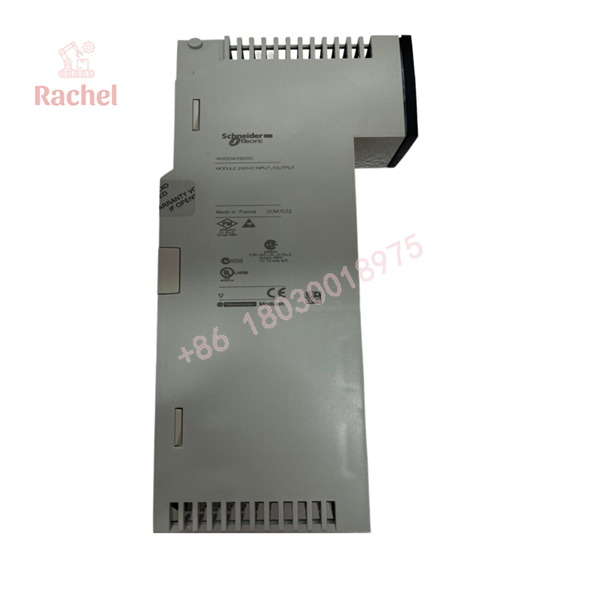

Schneider 140DDM39000 Quantum 16-In/8-Out I/O Module

Description

Product Introduction & Engineering Value

The 140DDM39000 combines digital input and output functions in a single Quantum module. It provides 16 DC inputs for status and permissive signals while eight solid-state outputs can drive 24 VDC loads such as interposing relays, solenoid valves, indicator circuits, and other control devices.

The output stage is sink-type and supports up to 0.5 A per output, with a 2 A maximum per output group and 4 A per module. Internal group fusing and transient-voltage protection provide defined fault behavior, but external load protection and proper field wiring remain essential.



Technical Specifications

Specification	140DDM39000
Platform	Modicon Quantum
Module Type	Mixed discrete I/O
Total I/O Points	24
Discrete Inputs	16
Input Grouping	2 × 8
Input Logic	Sink
Nominal Input Voltage	24 VDC
Guaranteed Logic 0	−3 to 5 V
Guaranteed Logic 1	15–30 V
Input Impedance	2,500 Ω
Discrete Outputs	8
Output Grouping	2 × 4
Output Type	Solid state
Output Logic	Sink
Output Voltage	24 VDC
Output Load	≤0.5 A/point; ≤2 A/group; ≤4 A/module
Output Response	≤1 ms ON/OFF
Bus Current	330 mA
Group-to-Bus Isolation	1,780 Vrms for 1 minute
Group-to-Group Isolation	500 Vrms for 1 minute
Operating Temperature	0–60°C
Storage Temperature	−40–85°C
Relative Humidity	Up to 95%, non-condensing
Weight	Approx. 0.3 kg

The 140DDM39000 has two groups of eight inputs and two groups of four outputs. Schneider documentation specifies 24 VDC operation, 2,500 Ω input impedance, 0.5 A maximum per output, and 330 mA Quantum bus consumption.

Output Protection

The output circuitry includes:

• 5 A internal fuse per output group
• Transient-voltage suppression
• Fault indication for output fuse failure
• Field-power fault indication
• ≤0.4 V voltage drop at 0.5 A
• 0.4 mA maximum specified leakage current at 30 VDC

These characteristics are especially relevant when the module drives solenoids or relay coils with frequent switching.

Field Application & “Trench” Experience

Field Scenario: Valve Commands and Position Feedback on One Quantum Rack

A legacy process skid uses a Quantum rack to control several pneumatically actuated valves. The 140DDM39000 handles both valve-position feedback and 24 VDC control outputs.

A technician reports that one valve has stopped responding while several other position indications remain normal.

The correct diagnostic approach is to separate the input problem from the output problem:

1. Confirm the PLC logic is commanding the output.
2. Check the corresponding output LED.
3. Measure voltage/current at the field terminal.
4. Check whether the output-group fuse has opened.
5. Inspect the solenoid coil for a short circuit or excessive current.
6. Verify the input signal from the valve-position switch separately.
7. Compare the affected channel with another output in the same four-channel group.

The 140DDM39000’s grouped architecture matters here: one failed output fuse can affect a group without necessarily affecting every I/O point on the module. Schneider documentation specifically identifies 5 A internal output protection per group.

Niche Applications

• Pneumatic valve control and position feedback on process skids.
• Pump and motor auxiliary circuits combining run-status inputs with control outputs.
• Burner management auxiliary sequencing where discrete permissives and 24 VDC commands coexist.
• Packaging and material-handling machinery requiring dense digital I/O in a legacy Quantum rack.



QA & Testing SOP

For a New Surplus or Refurbished 140DDM39000, test both halves of the module. Testing only the inputs is insufficient.

1. Identity and condition

Verify:

• Exact part number: 140DDM39000
• Schneider Electric / Modicon labeling
• Hardware/revision information
• Serial or date-code information
• Connector condition
• Housing and mounting hardware

2. Input-channel test

Apply controlled 24 VDC signals to all 16 inputs.

Verify:

• Correct ON/OFF indication
• No intermittent channels
• Correct logic response
• Correct PLC input image

The guaranteed logic-1 range is 15–30 VDC, while −3 to 5 VDC is specified as the guaranteed logic-0 range.

3. Output-channel test

Command all eight outputs individually.

Check:

• Output switching
• Output voltage
• Load response
• LED indication
• Group-fuse condition
• No abnormal leakage or heating

Where possible, use representative loads rather than testing the outputs completely unloaded.

4. Full rack test

Install the module in a known-good Quantum rack and verify:

• Bus communication
• I/O addressing
• All 16 input states
• All 8 output states
• Fault indication
• Repeated switching under load

Procurement standard: For a critical spare, request a test report showing that all 24 channels were exercised.



⚠️ Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating it as a 24-channel input module

The 140DDM39000 has 24 total I/O points, but only 16 are inputs. The remaining eight are outputs. A replacement must account for the mixed I/O configuration and the corresponding PLC address allocation.

⚠️ Trap #2 — Exceeding the output-group current

The maximum output rating is not simply 0.5 A × 8 without qualification.

The published limits are:

• 0.5 A per point
• 2 A per group
• 4 A per module

A design that satisfies the per-channel limit can still violate the group limit.

⚠️ Trap #3 — Ignoring sink logic

Both the inputs and outputs use sink logic. Field wiring must match the module’s sourcing/sinking arrangement. A mechanically compatible module with a different logic configuration can produce very confusing field behavior.

PRO TIP — Check the load before blaming the output module

If an output repeatedly blows its internal group fuse, replacing the 140DDM39000 without investigating the field load is usually wasted effort. Check solenoid coils, wiring insulation, suppression components, and external power distribution first.



Lifecycle & Spare-Inventory Strategy

The 140DDM39000 is a legacy Quantum component. Schneider’s U.S. product page lists it as discontinued on December 31, 2022, with end-of-service currently shown as December 31, 2030. Schneider regional lifecycle dates differ, so procurement should verify the market applicable to the installation.

Schneider recommends the Modicon X80 BMXDDM16022, an 8-input/8-output 24 VDC positive-logic mixed I/O module, as the replacement.

That replacement is not a one-for-one electrical or architectural assumption. The original 140DDM39000 provides 16 inputs and 8 outputs, while the recommended X80 module provides 8 inputs and 8 outputs. I/O allocation and control-system architecture therefore need to be reviewed before migration.

Recommended Spare Strategy

For a plant still operating Quantum:

• Keep tested 140DDM39000 units for high-criticality racks.
• Separate New Surplus from Refurbished/Used inventory.
• Record the hardware revision and date code.
• Keep compatible field connectors in stock.
• Document the 16 input / 8 output channel allocation.
• Track output-group loading, particularly for inductive loads.
• Preserve PLC application and I/O configuration backups.
• Establish a migration plan before the remaining spare population becomes difficult to source.



Dynamic FAQ

What is the Schneider 140DDM39000?

It is a Modicon Quantum mixed discrete I/O module providing 16 24 VDC digital inputs and 8 24 VDC solid-state digital outputs.

What is the maximum output current?

Each output supports up to 0.5 A, each four-output group is limited to 2 A, and the module is limited to 4 A total output current.

Are the outputs relay outputs?

No. The eight outputs are solid-state, 24 VDC sink outputs. They are not mechanical relay contacts.

What is the input voltage?

The nominal input voltage is 24 VDC. A guaranteed logic-1 condition is 15–30 VDC, while −3 to 5 VDC is the guaranteed logic-0 range.

What replaces the 140DDM39000?

Schneider recommends BMXDDM16022 from the Modicon X80 family. Because the channel allocation differs from the original 16-in/8-out Quantum module, migration engineering is required.

Is New Surplus 140DDM39000 still worth buying?

For a plant with operating Quantum racks, yes. A tested original module can be an important maintenance spare because replacing the installed Quantum architecture requires engineering, testing, and potentially downtime.

How should a refurbished 140DDM39000 be tested?

Test all 16 inputs and all 8 outputs, preferably in a compatible Quantum rack. Output testing should use representative loads and verify group-fuse behavior, while input testing should verify the actual PLC input image.

What warranty applies to a surplus unit?

Warranty coverage depends on the supplier and condition. Schneider’s original warranty should not automatically be assumed for a secondary-market New Surplus or refurbished unit. Obtain the supplier’s functional warranty and return conditions in writing.



Bottom Line

Schneider Electric 140DDM39000 is a 24 VDC Modicon Quantum mixed I/O module with 16 sink inputs and 8 solid-state sink outputs. Its 0.5 A-per-point output capability, 2 A-per-group limitation, 4 A module limit, grouped protection, and fast ≤1 ms output response make it a practical module for dense discrete control applications.

For an installed Quantum system, the 140DDM39000 remains a valuable legacy spare. Schneider’s recommended successor is BMXDDM16022, but its different input-channel count means that migration requires an I/O and application review rather than a blind one-for-one substitution.
