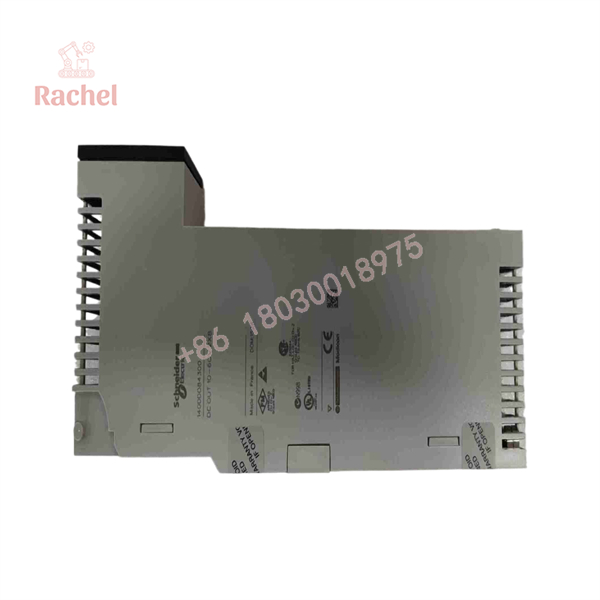

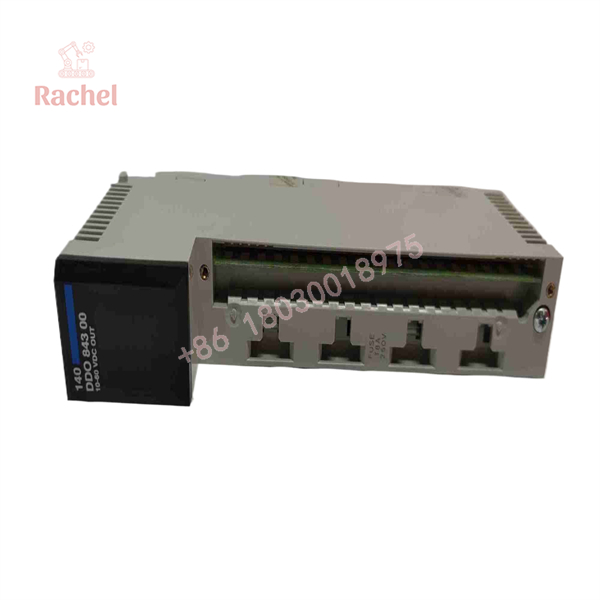

Schneider 140DDO84300 Quantum 16-Point DC Output

Description

Product Introduction & Engineering Value

The 140DDO84300 is designed for Quantum installations that need to switch relatively high-current DC loads from a PLC output rack. Unlike the 24 VDC-only DDO modules in the Quantum family, this module accepts a substantially wider 10–60 VDC external supply range, making it useful for legacy control circuits operating at different DC voltages.

Its 16 outputs are divided into two groups of eight, with up to 2 A per output, 6 A per group, and 12 A per module. The outputs are positive-logic/source type, so the field wiring must provide the correct common/reference arrangement.



Technical Specifications

Specification	140DDO84300
Platform	Modicon Quantum
Module Type	DC discrete output
Number of Outputs	16
Channel Grouping	2 × 8
Output Logic	Positive logic / source
Nominal Operating Range	10–60 VDC
Output Voltage Limits	10.2–72 VDC
Absolute Maximum	72 VDC continuous
Maximum Current / Point	2 A
Maximum Current / Group	6 A
Maximum Current / Module	12 A
Surge Current	7.5 A for 50 ms
Voltage Drop	<1 V at 2 A
Leakage Current	≤1 mA at 60 VDC
Response Time	≤1 ms ON and ≤1 ms OFF
Point Fuse Recommendation	2 A
Group Protection	Internal 8 A fuse per group
Group-to-Bus Isolation	2,500 Vrms DC, 1 minute
Group-to-Group Isolation	700 Vrms DC, 1 minute
Bus Current Requirement	160 mA
Power Dissipation	1 W + (1 V × total module load current)
Operating Temperature	0–60°C
Storage Temperature	−40–85°C
Relative Humidity	Up to 95%, non-condensing
Weight	Approx. 0.45 kg

The detailed Quantum documentation confirms the 10–60 VDC operating range, 2 A point rating, 6 A group limit, 12 A module limit, 160 mA bus requirement, and 2,500 Vrms group-to-bus isolation.

Output Protection

The 140DDO84300 incorporates internal output protection with an 8 A fuse for each eight-channel group. Schneider documentation also specifies a recommended 2 A fuse per individual output.

That distinction matters in field troubleshooting: an individual overload and a group-level fault do not necessarily produce the same failure pattern.

Field Application & “Trench” Experience

Field Scenario: 48 VDC Solenoid Bank Stops Responding

Consider a legacy process plant using a Quantum rack to control pneumatic valves. Several 48 VDC solenoids are driven through a 140DDO84300.

One valve suddenly stops actuating.

A technician should not immediately replace the output module.

A disciplined sequence is:

1. Confirm the PLC logic is commanding the output.
2. Check the corresponding output LED.
3. Measure the external DC supply at the field wiring.
4. Measure voltage directly at the affected output.
5. Check the solenoid coil resistance.
6. Inspect the individual output fuse/protection.
7. Check the total current of the eight-channel group.
8. Compare the affected channel with another known-good output.
9. Replace the module only after the external circuit has been ruled out.

The module’s broad 10–60 VDC range makes it useful in legacy systems, but the load still has to remain within both the individual-channel and group-current limits.

Niche Applications

• 48 VDC valve and solenoid banks in older process-control systems.
• DC motor contactor/interposing-relay control where the field circuit exceeds conventional 24 VDC.
• Industrial burner and utility skids using mixed-voltage DC control circuits.
• Legacy material-handling systems with high-current DC actuators.



QA & Testing SOP

For a New Surplus or Refurbished 140DDO84300, output testing should include both low-current switching and representative load testing.

1. Identity Verification

Confirm:

• Exact part number: 140DDO84300
• Schneider Electric / Modicon labeling
• Hardware revision
• Serial/date information
• Correct connector and housing configuration

Do not substitute a visually similar Quantum output module without checking the voltage range and logic type.

2. Physical Inspection

Inspect:

• Backplane connector
• Field connector
• Output-status LEDs
• Housing
• Mounting clips
• Signs of overheating
• Evidence of corrosion or contamination

3. Channel-by-Channel Test

Command each of the 16 outputs individually.

Verify:

• Output LED operation
• Correct switching
• ON-state voltage drop
• OFF-state leakage
• No intermittent operation
• Correct PLC output image

The documented switching response is ≤1 ms in both directions under the specified conditions.

4. Load Test

Where possible, test outputs using representative DC loads rather than relying entirely on an unloaded voltage measurement.

Particular attention should be given to:

• Solenoids
• Relay coils
• Contactors
• DC motors
• Inductive loads

The published documentation provides an inductive-load relationship and surge-current limit, so inductive loads should be evaluated according to their actual switching frequency and current.

5. Group Test

Test both eight-channel groups independently. Verify that the module can operate multiple outputs simultaneously without exceeding the 6 A group or 12 A module limits.



⚠️ Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing source and sink logic

The 140DDO84300 is a positive-logic/source output module. Schneider’s older Quantum documentation explicitly describes it as a source module switching externally powered 10–60 VDC loads whose common is wired to 0 V.

A sink-output replacement is not automatically electrically equivalent.

⚠️ Trap #2 — Using 12 A as the allowable current for every output combination

The 12 A rating is the module maximum, not 12 A per channel.

The actual limits are:

• 2 A per output
• 6 A per eight-output group
• 12 A per module

Exceeding the group limit can cause protection to operate even when every individual channel remains below 2 A.

⚠️ Trap #3 — Forgetting the 10.2 V minimum operating voltage

The published output-voltage limit begins at 10.2 VDC, despite the product’s nominal 10–60 VDC range. Do not assume the module is suitable for a marginally regulated DC source hovering around 10 V.

PRO TIP — Check the load’s inrush current

A solenoid or contactor may have an initial current substantially higher than its holding current. The 140DDO84300 specifies a 7.5 A surge-current capability for 50 ms, but the field circuit still needs to be evaluated against point and group limitations.



Lifecycle & Spare-Inventory Strategy

The 140DDO84300 is now a legacy Quantum spare. Schneider’s U.S. page records it as discontinued on December 31, 2022, with end-of-service scheduled for December 31, 2030. Regional lifecycle dates differ; for example, Schneider’s Canada page lists August 8, 2025, while the Czech regional page lists April 8, 2026 as its discontinuation date and April 8, 2027 for service.

An important point for procurement: Schneider’s Philippines product page currently states that 140DDO84300 has not been replaced. Therefore, this should not be treated like some other Quantum modules for which Schneider provides a direct X80 replacement reference.

Recommended Spare Strategy

For an operating Quantum installation:

• Keep at least one tested 140DDO84300 for each high-criticality application.
• Record the exact hardware revision and date code.
• Separate New Surplus, Refurbished, and Used inventory.
• Keep appropriate field fuses available.
• Document the voltage and current requirements of every connected load.
• Maintain a channel-by-channel I/O list.
• Record which outputs drive inductive loads.
• Preserve the Quantum application and hardware configuration.
• Establish a migration plan for the wider Quantum system rather than waiting for this output module to become unavailable.



Dynamic FAQ

What is the Schneider 140DDO84300?

It is a 16-point Modicon Quantum DC discrete output module designed for externally powered 10–60 VDC loads. It uses positive/source logic and two groups of eight outputs.

What voltage can the 140DDO84300 switch?

The specified operating range is 10–60 VDC, with output voltage limits of 10.2–72 VDC and an absolute maximum of 72 VDC continuous.

What is the maximum output current?

Each output is rated for 2 A, each group for 6 A, and the complete module for 12 A.

Is the 140DDO84300 a source or sink output?

It is a positive-logic/source output module. Field circuits should be wired according to the documented source-output architecture.

How fast are the outputs?

The specified response time is ≤1 ms from OFF to ON and ≤1 ms from ON to OFF.

Is the 140DDO84300 still manufactured?

No. Schneider lists it as discontinued. The U.S. listing shows December 31, 2022 as the discontinuation date and December 31, 2030 as end of standard service.

Does Schneider list a direct replacement?

Not consistently across regional Schneider sites. The Philippines Schneider listing explicitly states that 140DDO84300 has not been replaced, so procurement should not assume a current X80 module is a direct substitute.

Is New Surplus 140DDO84300 still worth buying?

Yes, particularly for a plant with installed Quantum racks and high-cost production downtime. A tested original module can provide substantially lower restoration risk than attempting an unplanned control-system migration during a failure.

How should a refurbished 140DDO84300 be tested?

Test all 16 outputs, verify both eight-channel groups, check output voltage drop and leakage, and perform representative load testing where practical. For critical inventory, request documentation showing that the module was tested under load.

What warranty applies to a surplus unit?

Warranty depends on the supplier and product condition. New Surplus and Refurbished units should be quoted separately with written functional warranty terms. Do not assume Schneider’s original factory warranty transfers to a secondary-market unit.



Bottom Line

Schneider Electric 140DDO84300 is a 16-channel Modicon Quantum DC output module for 10–60 VDC loads, using positive/source logic and two groups of eight outputs. It supports up to 2 A per point, 6 A per group, and 12 A per module, with ≤1 ms switching response and 160 mA Quantum backplane current consumption.

For existing Quantum systems, this is a high-value legacy spare rather than a part to casually substitute. Schneider currently lists it as discontinued, and its regional documentation does not establish a universal direct replacement. That makes tested New Surplus or Refurbished inventory, exact part-number verification, and planned Quantum migration especially important.
