Description
Product Introduction
The Schneider Electric Modicon 140SAI94000S is an 8-channel safety analog input module designed specifically for the Modicon Quantum Safety PLC platform. TÜV-certified up to SIL3 (Safety Integrity Level 3) according to IEC 61508, it is built to handle critical process variables—such as pressure, temperature, level, and flow—where sensor measurement failure could lead to dangerous process conditions.
Featuring extensive internal hardware self-testing, cross-channel diagnostics, and galvanic isolation, the 140SAI94000S ensures high data reliability. It can operate in single-channel or dual-redundant safety configurations, constantly checking for open wire faults, short circuits, and out-of-range signal drift before passing process values to the Quantum Safety CPU.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Safety Analog Input Module (SIL3 Certified) |
| Part Number | 140SAI94000S |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Safety Racks |
| Safety Certification | TÜV Certified up to SIL 3 (IEC 61508 / IEC 61511) |
| Number of Channels | 8 Individually Monitored Channels |
| Input Signal Range | 0 to 20 mA / 4 to 20 mA |
| Resolution | 12 to 16 bits (application/config dependent) |
| Diagnostic Coverage | Internal RAM/ROM checks, channel-to-channel cross checks, broken wire detection |
| Isolation Rating | 1000 VAC RMS Channel-to-Backplane / 500 VDC Channel-to-Channel |
| Bus Current Requirement | ~300 mA max at 5.1V DC (from backplane) |
| Terminal Block | 140XTS00200 (40-pin screw) or 140XTS00201 (40-pin spring) |
Application Scenarios & Field Experience
The 140SAI94000S is deployed in Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), and Fire & Gas (F&G) detection systems.
- Emergency Shutdown (ESD): Monitoring critical high-pressure gas headers and overpressure transmitters to trigger automated safety trip valves.
- Burner Management Systems (BMS): Measuring fuel gas pressure and furnace draft levels in large industrial boilers.
- Chemical Tank Farms: High-integrity liquid level monitoring to prevent hazardous material overfills in storage vessels.
- Offshore Platforms: Continuous monitoring of toxic and combustible gas transmitters across process decks.
Field Case Study: An offshore processing platform experienced intermittent safety trips caused by signal drift on a non-safety analog input card monitoring separator vessel pressure. Replacing the standard module with a SIL3-rated 140SAI94000S provided active sensor health diagnostics and out-of-range line fault filtering, eliminating nuisance trips while maintaining strict Safety Instrumented Function (SIF) compliance.
Quality Assurance & Testing Procedure
Every surplus 140SAI94000S safety module undergoes a rigorous multi-point validation process prior to dispatch:
- Visual & Structural Audit: Inspecting backplane gold contacts, safety keying latches, and terminal guide slots for physical damage.
- Backplane Handshake & Boot Test: Seated in a Quantum Safety test rack to verify 5.1V bus current draw (~300 mA), memory integrity checks, and safety executive handshake.
- 8-Channel Calibration & Signal Inject Test: Injecting precision 0–20 mA and 4–20 mA current loops across all 8 channels to verify conversion accuracy, linearity, and channel isolation.
- Fault Injection & Safety Diagnostics Check: Testing open-wire (broken loop) and out-of-range detection logic to ensure diagnostic flags trigger correctly.
- ESD-Safe Packaging: Cleaned, static-shielded, and packaged in custom protective foam cradles.

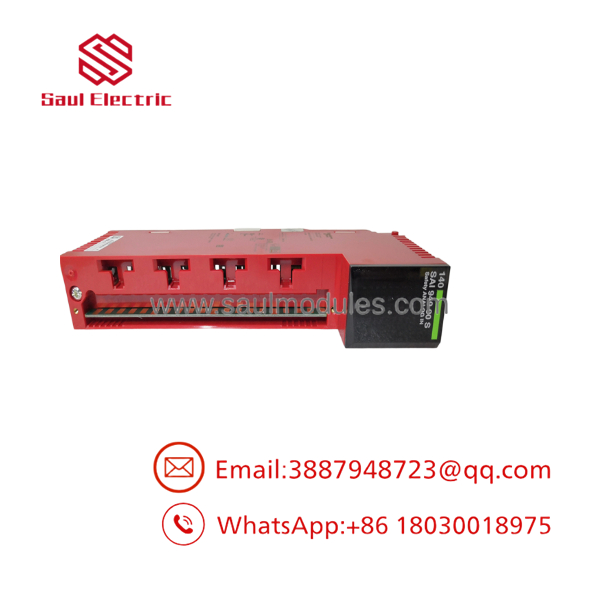

140SAI94000S

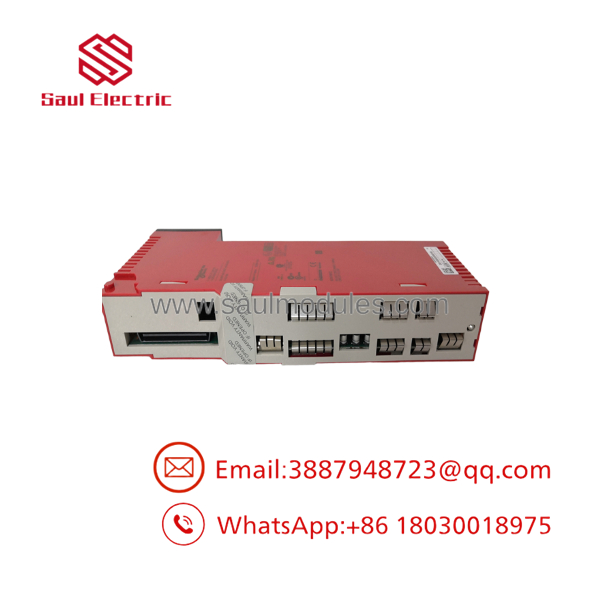

140SAI94000S

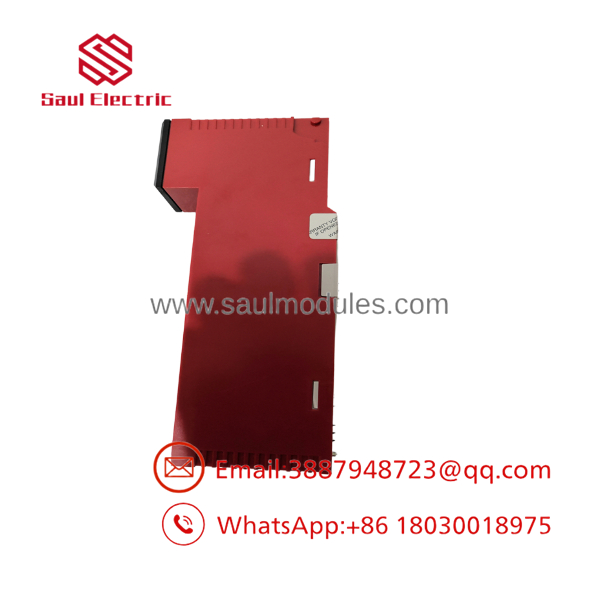

140SAI94000S
Technical Field Tips & Traps
- ⚠️ “S” Suffix Safety Distinction: The “S” designation (140SAI94000S) denotes a TÜV-certified safety card. Do not substitute a standard non-safety 140ACI03000 or similar standard analog card into a safety rack—doing so will invalidate the facility’s SIL rating and fail software safety checks.
- ❗ Firmware & Software Safety CRC: When replacing a safety module, the safety software package (Concept Safety or Unity Pro / EcoStruxure Control Expert Safety) will verify the module’s safety signature and CRC. Ensure the firmware version of the replacement matches the exact version specified in the project safety configuration.
- ⚠️ 2-Wire vs. 4-Wire Transmitter Wiring: Ensure loop power wiring matches the configuration. If using external 24V DC field loop power, verify that power supply isolation aligns with safety system grounding specifications.
- ❗ Shielding & Grounding: Analog safety loops require proper cable shielding grounded at one point (typically the cabinet entry ground bar) to prevent electrical noise from causing diagnostic fault trips.
Frequently Asked Questions
Q: What is the primary difference between 140SAI94000S and standard Quantum analog input modules?
A: The 140SAI94000S includes hardware redundancy, advanced internal self-testing, and TÜV SIL3 certification required for safety-critical shutdown applications, whereas standard modules lack safety-certified diagnostic coverage.
Q: Can the 140SAI94000S be used in a non-safety Quantum CPU rack?
A: While it can physically mount into a Quantum backplane, its safety features and advanced diagnostics require a compatible Quantum Safety CPU and programming environment to function properly as a SIL-rated module.
Q: What terminal block is required for wiring the 140SAI94000S?
A: It utilizes the standard Quantum 40-pin terminal block—either the 140XTS00200 (screw clamp) or 140XTS00201 (spring clamp).
Q: Can I hot-swap a 140SAI94000S module under power?
A: Yes, Quantum racks support Removal and Insertion Under Power (RIUP). However, in a safety system, removing an active safety input card may trigger a SIF safety trip or system alarm depending on how the safety logic voted state is configured (e.g., 1oo2, 2oo3).
