Description
Product Introduction & Engineering Value
The Schneider Electric 170AAO92100 is a four-channel analog output base for the legacy Modicon Momentum automation platform. It is intended for applications where the controller must continuously command field devices through analog signals, including 4–20 mA control loops and ±10 V applications. Schneider specifies a 2 ms update time, internal reverse-polarity protection, and internal 2 A slow-blow protection.
One important procurement detail is that this is an analog output base, not simply a generic plug-in analog card. The Momentum architecture uses I/O bases and associated communications hardware, so the installed system configuration must be checked before substitution. Schneider’s current regional lifecycle information also shows different dates by market, making exact-part-number spares particularly relevant for legacy installations.
Technical Specifications
| Specification | 170AAO92100 |
|---|---|
| Product family | Modicon Momentum |
| Component type | Analog output base |
| Number of outputs | 4 |
| Current output | 4–20 mA |
| Voltage output | ±10 V |
| Resolution | 12 bits + sign |
| Data format | Full 16-bit signed |
| 4–20 mA load | ≤600 Ω |
| ±10 V load | ≥1 kΩ |
| Maximum load capacitance | 1 µF |
| Update time | 2 ms |
| Accuracy, 4–20 mA at 25°C | ±0.4% of full scale |
| Accuracy, 4–20 mA at 60°C | ±0.5% of full scale |
| Accuracy, ±10 V at 25°C | ±0.2% of full scale |
| Accuracy, ±10 V at 60°C | ±0.25% of full scale |
| Channel-to-ground isolation | 500 VAC for 1 minute |
| Maximum power dissipation | 8.5 W |
| Internal protection | 2 A slow-blow |
| Degree of protection | IP20 |
| Certification | CE |
Schneider’s published technical data confirms the four outputs, signed 16-bit data format, output ranges, load requirements, accuracy, 2 ms update time, isolation, and 8.5 W maximum power dissipation.
Output Scaling
For a 4–20 mA loop, the module provides a process-current output rather than a voltage signal. The technical documentation describes the conversion as 12 bits plus polarity/sign, with one output word allocated to each channel.
The four analog channels therefore consume four contiguous output words in the Momentum addressing structure. This matters when troubleshooting a legacy application because a software-side addressing error can look like an output-channel failure even when the hardware is functioning correctly.
Field Application & “Trench” Experience
Example: Control Valve Output Drifting
A legacy chemical-processing skid uses a 170AAO92100 to command several pneumatic control valves through 4–20 mA loops. One valve begins responding slowly and eventually remains near its minimum position.
A technician measures the field current and finds approximately 4 mA even when the PLC program is commanding a higher output.
The correct diagnostic sequence is:
- Monitor the commanded output value in the controller.
- Confirm the corresponding Momentum output word.
- Measure the actual current at the 170AAO92100 terminals.
- Check the loop resistance and receiving device.
- Verify that the receiving device does not exceed the module’s 600 Ω maximum load for a 4–20 mA output.
- Test the channel with a calibrated loop load.
- Compare the affected channel against a known-good channel.
This separates a software scaling problem, output-channel fault, and field-loop problem without immediately replacing the module.
Niche Applications
- Control-valve positioning in legacy chemical and petrochemical process skids.
- Variable-speed drive references where ±10 V analog control is used.
- Process analyzer control loops requiring isolated analog current outputs.
- Legacy water-treatment dosing systems using 4–20 mA commands to metering equipment.

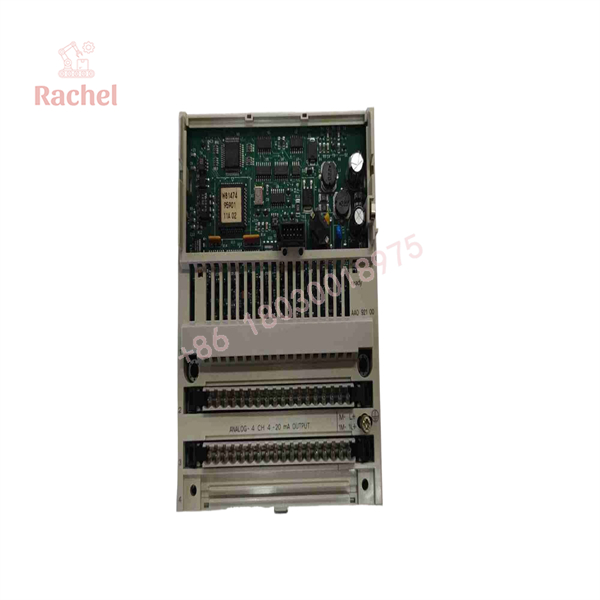

170AAO92100

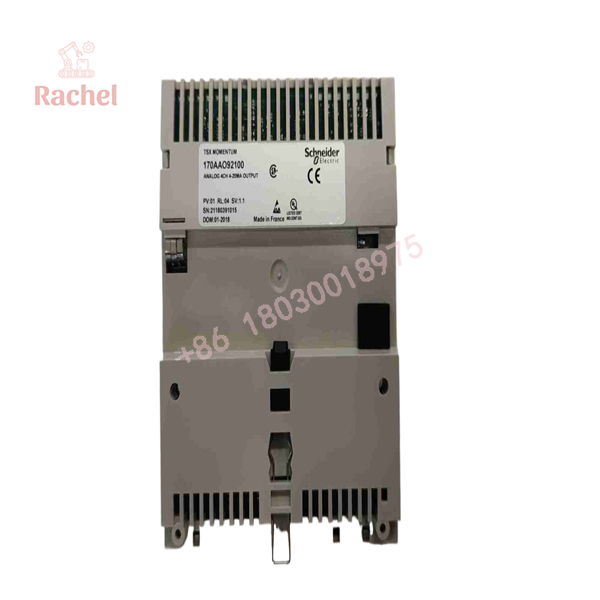

170AAO92100
QA & Testing SOP
For New Surplus or Refurbished 170AAO92100 inventory, a useful receiving test should verify both analog performance and the hardware’s physical condition.
Recommended Acceptance Procedure
1. Exact part-number check
Verify:
170AAO92100
Do not substitute 170AAO12000 simply because it is another four-channel Momentum analog-output product. The output range and application are different; Schneider’s documentation identifies 170AAO12000 as a 0–20 mA output base, while 170AAO92100 is the 4–20 mA/±10 V version.
2. Physical inspection
Check:
- Terminal/interface condition
- Housing damage
- PCB contamination
- Corrosion
- Signs of overheating
- Evidence of previous repair
3. Power-up test
Install the unit in a compatible Momentum test configuration and verify normal communication.
4. Analog output test
Test all four channels at representative values, such as:
- 4 mA
- 12 mA
- 20 mA
For voltage applications, verify representative negative, zero, and positive output values.
5. Load test
Test the output against a controlled load within the specified resistance and capacitance limits.
6. Documentation
Record serial/lot information where available, test results, condition, and supplier warranty.
A supplier’s statement that a unit is “tested” should ideally be supported by an actual analog-output test report.
⚠️ Veteran’s Tech Trap Guide
⚠️ Trap 1 — Confusing 170AAO92100 with 170AAO12000
Both are four-channel Momentum analog output bases, but their current-output specifications differ.
The 170AAO92100 is the 4–20 mA / ±10 V version, while Schneider’s Momentum documentation identifies 170AAO12000 as a 0–20 mA output base.
Do not substitute based solely on channel count.
⚠️ Trap 2 — Ignoring loop resistance
For 4–20 mA operation, Schneider specifies a maximum load of 600 Ω. Excessive cable resistance, barriers, isolators, or receiving-device impedance can push the loop outside its specified operating conditions.
PRO TIP: Calculate the complete loop burden before blaming the analog output.
⚠️ Trap 3 — Assuming the output is always 4–20 mA
The module also supports ±10 V. That means the wiring, software configuration, and receiving device must agree on the signal type.
A mismatch can produce a perfectly healthy analog module with a completely wrong process signal.
Lifecycle & Spare-Inventory Strategy
The lifecycle status of 170AAO92100 varies by Schneider region. Schneider’s U.S. page currently shows the product as normally stocked in its distribution facility, while Schneider’s Singapore, Canada, and several European pages show discontinuation scheduled for December 1, 2027, with end-of-service on December 31, 2035. The UAE page records an earlier December 1, 2024 discontinuation date.
Schneider currently recommends:
NTSAMO0400K — Modicon Edge I/O NTS, 4-channel analog output module + base
as the replacement.
That should be treated as a modernization path, not automatically as a drop-in Momentum replacement.
Recommended Spare Strategy
For an operating Momentum installation:
- Keep one tested spare for each critical application using the 170AAO92100.
- Verify whether the installed system uses 4–20 mA or ±10 V before stocking substitutes.
- Track the exact Momentum communication/base architecture.
- Separate New Surplus, Refurbished, and Used inventory.
- Require analog-output testing for refurbished units.
- Record actual supplier warranty separately from Schneider’s lifecycle status.
- Plan migration to the recommended Edge I/O architecture before the installed Momentum population becomes difficult to support.
Dynamic FAQ
What is the Schneider 170AAO92100?
It is a four-channel distributed analog output base for the Modicon Momentum platform, supporting 4–20 mA and ±10 V analog outputs.
What is the output resolution?
The published specification is 12 bits + sign, with data represented in a full 16-bit signed format.
What is the maximum 4–20 mA load?
The specified maximum load is 600 Ω. For ±10 V operation, the specified load is at least 1 kΩ.
What is the update time?
The 170AAO92100 has a specified 2 ms update time.
What replaces 170AAO92100?
Schneider identifies NTSAMO0400K, a four-output current/voltage analog module with base for the Modicon Edge I/O NTS platform.
Can I buy a New Surplus 170AAO92100?
Yes. Secondary-market inventory can include new, surplus, refurbished, and used units. The condition must be verified independently. For example, current industrial suppliers list both New and Refurbished 170AAO92100 units, with supplier-specific warranty terms.
What warranty should I expect?
Warranty depends on the seller and condition. One current industrial supplier advertises a two-year MRO warranty, while another lists separate warranties for used and repair services. These are supplier warranties and should not be confused with Schneider factory warranty coverage.
Bottom Line
Schneider Electric 170AAO92100 is a four-channel Modicon Momentum analog output base supporting 4–20 mA and ±10 V signals, with 12-bit-plus-sign conversion, 2 ms update time, 600 Ω maximum 4–20 mA load, and 500 VAC channel-to-ground isolation.
For legacy Momentum systems, the most important purchasing controls are exact catalog-number matching, output-range verification, loop-load verification, and documented analog testing. Schneider’s recommended NTSAMO0400K replacement belongs to the newer Modicon Edge I/O NTS platform, so migration engineering should precede any replacement purchase.
