Schneider Modicon 140CPU11303 Quantum 80486 Central Processing Unit

Description

Product Introduction

The Schneider Electric Modicon Quantum 140CPU11303 is an 80486-based central processing unit module engineered for mid-scale industrial control applications within the Modicon Quantum automation platform. Operating at a math coprocessor-supported clock speed, it manages discrete and analog I/O scanning, execution of ladder or function block logic, and system diagnostics across the Quantum backplane.

Equipped with 512 KB of internal RAM and integrated serial Modbus RS-232 and Modbus Plus communication ports, the 140CPU11303 delivers predictable, deterministic logic execution. Designed as a single-slot processor card, it provides a cost-effective, space-saving solution for maintaining long-standing Quantum installations without requiring major panel retrofits or wiring overhauls.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story: It is 4:15 AM at an industrial sawmill. The main log carriage system abruptly halts with a blank CPU display—the original 140CPU11303 processor has suffered a memory logic fault following a brief power spike. The plant engineer faces thousands of dollars per hour in lost throughput if timber stops moving into the headrig. Sourcing a tested, pre-configured 140CPU11303 replacement from emergency inventory, the engineer swaps the lithium backup battery, flashes the stored project via Modbus, and gets the log carriage feeding again before the main shift begins.

Application Scenarios:

• Automotive Stamping & Body Lines: Executing fast sequence logic and safety interlocks for mechanical press feeds.
• Municipal Water Treatment: Controlling standalone filtration sequences, valve banks, and dosing pumps over Modbus Plus.
• Material Handling Systems: Managing conveyor sorting algorithms, diverters, and Palletizer positioning routines.
• HVAC Central Boiler Management: Executing burner management and draft fan control loops in commercial central utility plants.

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Modicon Quantum backplanes. Every 140CPU11303 processor undergoes a strict 5-step validation procedure prior to stocking:

1. Inbound Physical Inspection: Thorough check of edge connectors, backplane interface pins, memory battery clips, front panel serial ports, and housing latches.
2. Firmware & Executive Code Verification: Loading standard Quantum Executive firmware via Concept/ProWORX software to ensure flash ROM integrity and error-free boot sequences.
3. Communication Port Sanity Check: Live handshake and data loopback testing on both the Modbus RS-232 serial port and the Modbus Plus network connector under heavy traffic.
4. Backplane Logic Scan Stress Test: Running a full 512 KB test project loaded with complex math operations and continuous cyclic I/O toggling on a multi-slot Quantum rack for 4+ hours.
5. ESD Clearance & Safe Packaging: Static discharge treatment, sealed in static-shielding bags, and packed with high-density foam to survive transport.

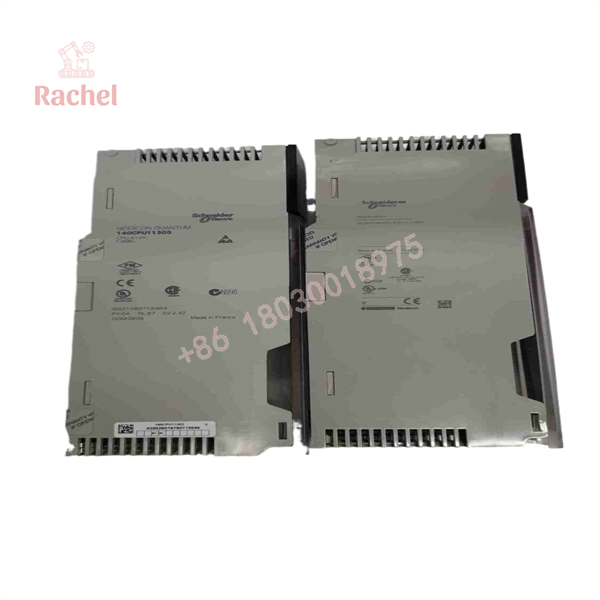

140CPU11303

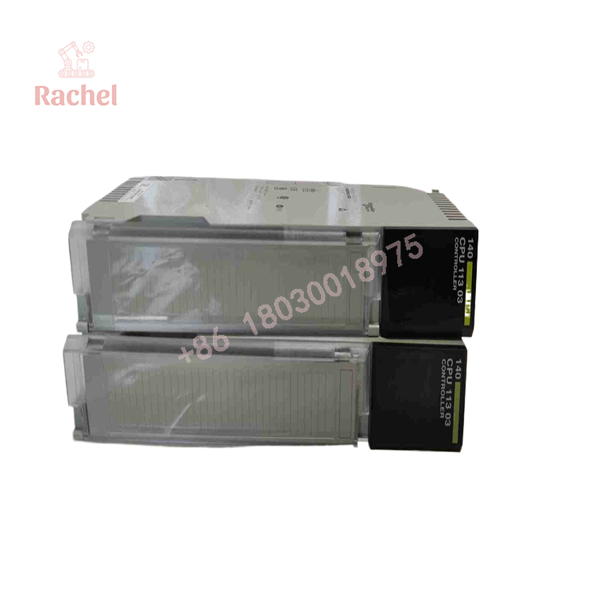

140CPU11303

The Veteran’s Tech Trap Guide

⚠️ Check the lithium memory battery before powering down! The 140CPU11303 relies on an internal coin cell battery (140XCP60000) to maintain user logic in RAM when backplane power is disconnected. If the front panel “BAT” LED is red or dim before you pull the module, replacing it without backplane power will instantly wipe the PLC memory project!

❗ Verify Modbus Plus node address rotary switches. The node address for the onboard Modbus Plus port is configured using two rotary switches on the side of the module. When installing a replacement CPU, set these switches to match the exact node address of the original board before plugging in the MB+ drop cable, or you will cause a network address collision.

⚠️ Watch out for Executive firmware mismatches. The 140CPU11303 must run an Executive firmware version compatible with your programming software (Concept, Modsoft, or ProWORX 32). Attempting to download a project built for firmware v2.0 onto a card running v1.1 will cause download errors or halt CPU execution.

❗ Observe proper keying stop pins. Ensure the slot keying pins on the backplane match the mechanical cutouts on the module housing. Forcing a CPU onto misaligned backplane keys can bend or snap fragile 5V logic pins on the rear connector board.

Frequently Asked Questions

Q: Can I hot-swap the 140CPU11303 CPU module while the Quantum rack is powered?

A: No. Unlike standard I/O cards, removing or inserting the main CPU card while the backplane is energized can cause unpredictable logic states, corrupt internal RAM, or cause backplane communication lockups. Always turn off rack power prior to CPU replacement.

Q: What programming software is used to configure the 140CPU11303?

A: The 140CPU11303 can be programmed using legacy Schneider/Modicon packages, including Concept, ProWORX 32, ProWORX NxT, and Modsoft.

Q: How do I back up my program if the battery is dead?

A: If the battery is depleted, you must upload the running project directly from the CPU using a serial Modbus connection to your PC before cycling main power to the rack.

Q: What is the key difference between the 140CPU11303 and higher-tier processors like the 140CPU43412A?

A: The 140CPU11303 is an entry-level, single-slot processor with 512 KB RAM intended for standalone applications. Higher models (like the 434 series) offer larger RAM capacities (2 MB+), faster clock speeds, dual-slot form factors, and support for redundant hot-standby architectures.

Q: What warranty comes with these legacy Quantum CPUs?

A: Every unit comes backed by a 12-month operational warranty. We bench-test backplane logic execution, battery circuits, and serial comm ports prior to stocking to guarantee out-of-the-box performance.
