Schneider Modicon 140DDO35300 32-Channel 24VDC Discrete Output Module

Description

Product Introduction

The Schneider Electric Modicon Quantum 140DDO35300 is a high-density, 32-channel discrete digital output module designed to drive solid-state field loads within the Modicon Quantum automation platform. Operating on a nominal 24 VDC external power supply, it delivers sourcing transistor outputs capable of driving solenoid valves, control relays, indicator lamps, and motor starter coils directly from PLC memory.

Engineered for continuous-duty industrial applications, the 140DDO35300 features 4 isolated groups of 8 channels each, allowing flexibility when wiring different field power zones. Built-in optocouplers isolate internal Quantum backplane logic from field voltage surges, while onboard electronic short-circuit and overcurrent protection safeguard individual output transistors from inductive kickback and accidental field wiring faults.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story: It is 1:30 AM on a high-speed beverage bottling line. Group 3 on an automatic palletizer suddenly freezes, throwing an output fault. A shorted solenoid coil on a pneumatic pusher cylinder took out a driver stage on an original 140DDO35300 card that had been in service for 12 years. The entire line is backed up, threatening to stall the filler. The maintenance technician pulls a bench-tested 140DDO35300 spare from inventory, swaps the module, clears the shorted solenoid valve, and snaps the terminal block back into place—restoring full automatic operation in less than 15 minutes.

Application Scenarios:

• High-Speed Packaging & Palletizing: Actuating pneumatic directional valves, diverter gates, and indexing cylinders.
• Automotive Welding & Assembly: Driving 24 VDC pilot relays, clamp solenoids, and cell status stack lights.
• Material Handling Conveyors: Controlling motor starter contactors, stop pins, and sorter divert shoes across large distribution centers.
• Water Treatment Chemical Skids: Operating 24 VDC solenoid-driven dosing valves and pump run/stop control relays.

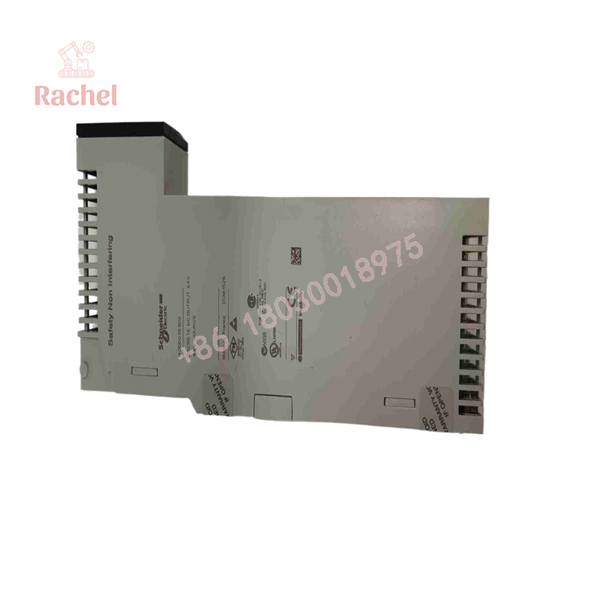

140DDO35300

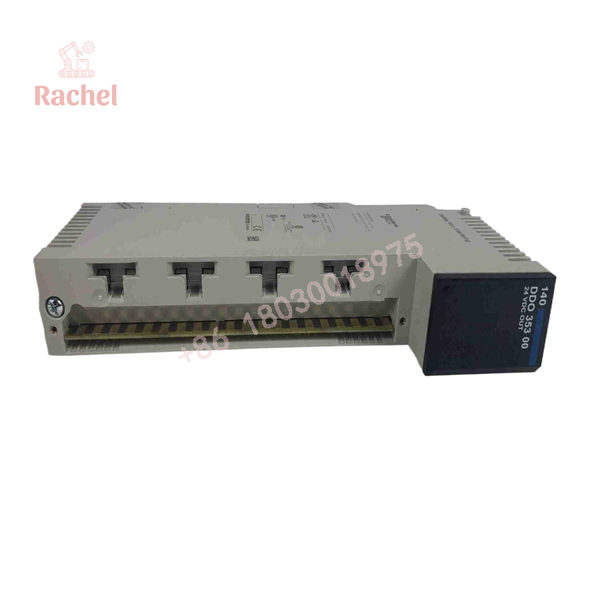

140DDO35300

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Modicon Quantum backplanes. Every 140DDO35300 digital output module undergoes a strict 5-step validation procedure before being added to inventory:

1. Inbound Physical Check: Inspection of backplane connectors, PCB components, housing locking latches, front panel LED lenses, and OEM serial labels.
2. Quantum Bus Handshake: Mounted in an active Quantum rack (e.g., 140CPU65160) to verify backplane bus synchronization and diagnostic LED indicators.
3. 32-Channel Load-Bank Testing: Connecting real-world 24 VDC inductive load banks to every channel across all 4 groups to verify full 0.5A switching capability under continuous power.
4. Short-Circuit & Thermal Protection Verification: Testing automatic electronic shutdown on individual channels by applying momentary overload conditions to ensure driver protection circuits function correctly.
5. ESD Clearance & Anti-Static Packaging: Cleaned, treated against static charge, sealed in static-shielding bags, and packaged in high-density foam for safe shipping.

The Veteran’s Tech Trap Guide

⚠️ Don’t forget to power ALL 4 field supply groups! The 32 channels on the 140DDO35300 are divided into 4 isolated groups of 8 channels. Each group requires its own 24 VDC field supply (+24V and 0V return) connected to the terminal block. If you only power Group 1, Channels 9 through 32 will not output any voltage, even though the front-panel LEDs light up!

❗ Always install flyback diodes across external DC inductive loads! Although the module has internal surge suppression, driving unsuppressed large DC relay coils or heavy solenoid valves can create massive inductive voltage spikes upon turn-off. Over time, these spikes degrade the internal sourcing transistors, leading to shorted output channels.

⚠️ Watch your total group current limits. While each channel can handle 0.5A, the maximum allowable total current per group of 8 channels is 4.0A at elevated temperatures. Running all 8 channels in a group at full 0.5A capacity continuously in a hot enclosure can trigger internal thermal shutdown.

❗ Verify software configuration when upgrading from 16-point cards. If you are replacing a 16-point output module (like the 140DDO84300) with this 32-point 140DDO35300, you must update the I/O mapping in EcoStruxure Control Expert / Unity Pro. A mismatched word-length configuration will cause an I/O drop fault on the Quantum CPU.

Frequently Asked Questions

Q: Can I hot-swap the 140DDO35300 module while the Quantum rack is powered?

A: Yes, the Quantum platform supports Hot Swap (RIOC – Removal and Insertion Under Power). However, always unlatch and pull the removable terminal block (RTB) first to prevent accidental wiring short circuits or unexpected field device actuation during swap out.

Q: Is the 140DDO35300 a sinking or sourcing output module?

A: The 140DDO35300 is a sourcing (positive logic) module. When an output channel turns ON, it switches positive +24 VDC from the field supply to your load terminal.

Q: What is the main difference between the 140DDO35300 and the 140DDO84300?

A: The primary difference is channel density and layout. The 140DDO35300 is a 32-channel 24 VDC sourcing output card (4 groups of 8), whereas the 140DDO84300 is a 16-channel 24 VDC sourcing output card (2 groups of 8).

Q: Does the module include the removable terminal block?

A: Removable Terminal Blocks (RTBs like the 140XTS00200 screw terminal or 140XTS00201 spring terminal) are typically sold separately unless specifically ordered as a bundle. You can easily transfer your existing RTB to the replacement card.

Q: What warranty coverage is provided on these discontinued Quantum output modules?

A: Every unit comes backed by a 12-month operational warranty. We bench-test all 32 output channels and diagnostic LEDs under full electrical load prior to shipment to ensure factory-spec performance.
