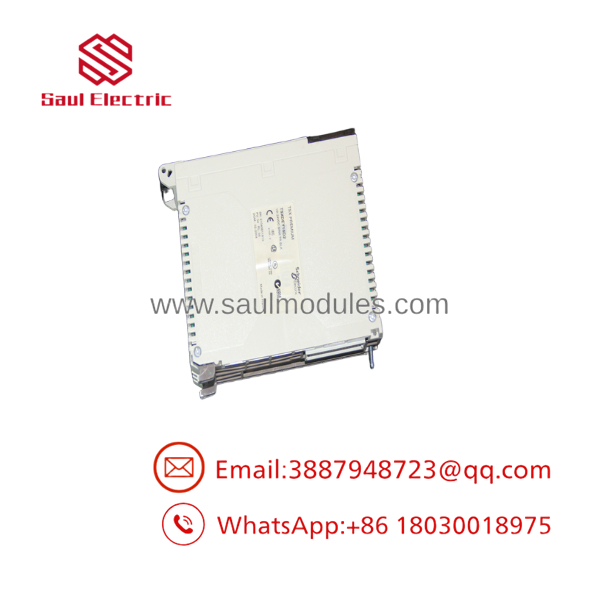

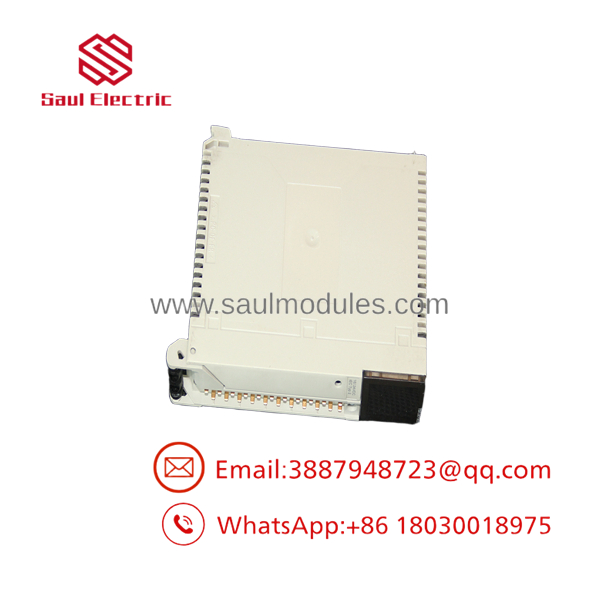

The Schneider Electric Modicon TSXDEY16D2 is a 16-channel discrete input module designed for the Modicon Premium automation platform. Operating at 24V DC, it acts as a primary interface between field binary devices (such as inductive proximity sensors, pressure switches, selector switches, and optical sensors) and the Premium CPU rack.
Featuring built-in optocoupler isolation between field inputs and internal backplane logic, the TSXDEY16D2 protects the PLC rack against electrical noise, ground loops, and transient voltage spikes. Each channel features individual front-panel LED indicators to provide technicians with instant visual diagnostic feedback during troubleshooting.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Discrete 24V DC Input Module |
| Part Number | TSXDEY16D2 |
| Manufacturer | Schneider Electric / Telemecanique / Modicon |
| Platform Compatibility | Modicon Premium TSX Racks |
| Number of Channels | 16 Individually Monitored Channels (1 Group of 16) |
| Nominal Voltage | 24V DC (19 to 30V DC operating window) |
| Input Logic | Positive Logic (Sink) or Negative Logic (Source) |
| Input Current | ~7 mA per channel at 24V DC |
| Response Time | < 1.2 ms state transition time (off-to-on / on-to-off) |
| Isolation Rating | 1500 VAC RMS Channel-to-Backplane Isolation |
| Power Consumption | ~90 mA max at 5V DC (from backplane) |
| Terminal Block Type | 20-Pin Screw Terminal Block (TSXBLY01) or Spring Terminal (TSXBLY02) |
| Diagnostics | Channel 0–15 Status LEDs, Module RUN / ERR LED |
Application Scenarios & Field Experience
The TSXDEY16D2 is heavily deployed across automotive manufacturing, food & beverage processing, material handling, and chemical batching plants using legacy Telemecanique/Modicon Premium platforms.
- Conveyor Sorting Lines: Reading high-speed optical sensors and proximity switches to verify package placement and divert gates.
- Interlock Monitoring: Tracking safety guard door limit switches, E-stop monitoring relay contacts, and manual control panel selectors.
- Pump & Motor Feedback: Capturing motor starter auxiliary contact feedback and pressure switch thresholds across fluid skids.
Field Case Study: A packaging facility experienced intermittent input drops on Channel 4 and 5 of a conveyor system. Diagnostic checks revealed worn terminal screws causing loose sensor wiring connections. Replacing the module and landing the field leads onto a fresh TSXBLY01 20-pin screw terminal block restored steady 24V DC signal readings, eliminating intermittent conveyor stop faults.
Quality Assurance & Testing Procedure
Every surplus TSXDEY16D2 module undergoes a multi-step test protocol prior to shipment:
- Visual & Mechanical Inspection: Checking edge connectors, backplane latches, and terminal block connector alignment pins.
- Backplane Handshake & Power-On Test: Mounting in a Modicon Premium test rack to verify backplane power consumption (5V DC @ ~90 mA) and CPU handshake verification.
- 16-Point Input Toggle Test: Applying 24V DC across all 16 input points individually to verify optocoupler health, threshold levels (ON > 11V, OFF < 5V), and channel LED status lights.
- Isolation Check: Verifying 1500 VAC isolation between field input commons and internal backplane circuitry.
- ESD-Safe Packaging: Static-shielded, cleaned, and packed securely in protective foam.
TSXDEY16D2
TSXDEY16D2
Technical Field Tips & Traps
- ⚠️ Logic Compatibility (Sink vs. Source): The TSXDEY16D2 can be wired for positive logic (sinking inputs) or negative logic (sourcing inputs). Ensure the common connection terminal (pin 1/pin 20 on the TSXBLY01 terminal block) matches your sensor type (PNP vs. NPN).
- ❗ Terminal Block Ordering: The module does not automatically include the front 20-pin removable terminal block. If you are not reusing an existing block, you will need to acquire a TSXBLY01 (screw terminal) or TSXBLY02 (spring terminal).
- ⚠️ Sensor Compatibility (2-Wire Proximity): When connecting 2-wire proximity sensors, ensure the sensor’s leakage current in the OFF state is lower than 1.5 mA to avoid keeping the input channel in a false “ON” state.
- ❗ Migration Path Note: Modicon Premium systems are legacy systems. Schneider Electric recommends migrating Premium installations to Modicon M580 platforms (using X80 I/O cards like the BMXDDI1602) for long-term support.
Frequently Asked Questions
Q: What is the main difference between and TSXDEY32D2?
A: The offers 16 discrete inputs using a 20-pin removable terminal block, whereas the TSXDEY32D2 offers 32 discrete inputs requiring a high-density HE10 ribbon connector cable assembly.
Q: Which programming software supports the ?
A: The module is fully supported in Schneider’s PL7 Pro and Unity Pro / EcoStruxure Control Expert software suites.
Q: Can I hot-swap this card (RIUP)?
A: Yes, Modicon Premium backplanes support Removal and Insertion Under Power (RIUP). However, ensure field 24V DC power to the terminal block is isolated prior to removing the card to prevent arc flash or wiring shorts.
Q: Does the require external 24V DC power?
A: The module draws logic power from the rack’s 5V backplane bus, but the 24V DC field supply must be provided across the terminal block common points to energize field input loops.
