Schneider 140CPU11302 Processor

Description

Product Introduction & Engineering Value

The 140CPU11302 is a legacy Quantum controller built around an 80186 processor running at 20 MHz. It provides 109 kB of internal RAM, a 250 ms watchdog timer, and support for the LL984 control environment. Its communication hardware includes dedicated Modbus RS-232 and Modbus Plus interfaces, making it particularly relevant to older Quantum installations that still depend on those networks.

This is not a CPU to substitute casually. The application may depend on the existing Concept or ProWORX environment, memory configuration, battery condition, Modbus Plus topology, and installed I/O architecture. Schneider currently recommends an M580 processor, BMEP581020, as the replacement, but that is a migration decision rather than a simple physical swap.

Technical Specifications

The Quantum hardware documentation specifies up to 8 kwords of 984 Ladder Logic, 8,192 discrete inputs and outputs, 9,999 registers, up to 31 remote drops, and a 250 ms watchdog. Schneider-derived product data also identifies 109 kB of internal RAM and a 780 mA bus-current requirement.

Field Application & the “Trench” Experience

A realistic failure scenario is an older production line that suddenly stops executing its sequence while the Quantum rack remains powered. The technician finds that the 140CPU11302 is no longer reaching the expected RUN state. Before replacing the CPU, the maintenance team checks the battery, examines the processor status, confirms the Modbus Plus network condition, and preserves the existing application backup.

That last step is critical. A replacement CPU is hardware. The control program and its configuration are another matter.

The 140CPU11302 is particularly relevant in installations such as:

• Legacy water-treatment sequencing systems using Quantum CPUs with Modbus Plus remote I/O.
• Packaging-line supervisory PLCs running LL984 logic and communicating with older Modbus serial devices.
• Process skid control panels where the original Quantum architecture must remain operational while a longer-term migration is planned.

The hardware documentation supports local, remote, and distributed I/O architectures, including up to 31 remote drops and three distributed networks.

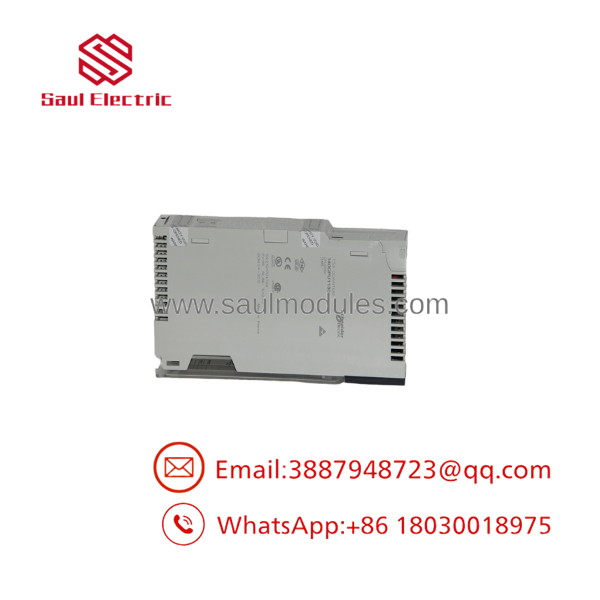

140CPU11302

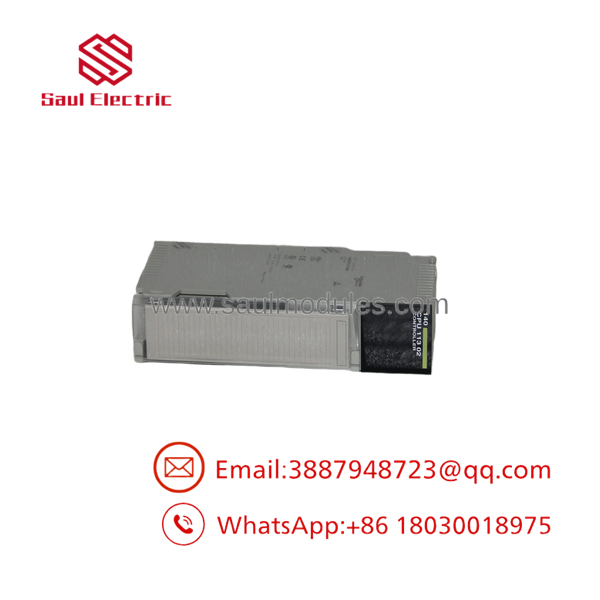

140CPU11302

Transparency SOP: QA & Testing

For a New Surplus 140CPU11302, a credible inspection process should include:

1. Identity check — verify the complete 140CPU11302 catalog number on the actual CPU.
2. Physical inspection — examine the housing, backplane connector, communication connectors, labeling, and mounting hardware.
3. Battery assessment — check the battery condition. This deserves special attention on legacy CPUs because stored inventory can approach or exceed the nominal battery service interval.
4. Processor startup test — install the CPU in an appropriate Quantum test rack and verify normal initialization.
5. Communication test — where equipment is available, verify the RS-232 Modbus and Modbus Plus interfaces.
6. Program execution test — confirm CPU operation using a controlled test application rather than relying only on power-up LEDs.
7. Stock classification — clearly identify whether the unit is New Surplus, Used, or Refurbished.

A unit can look unused and still have an aged battery. For this model, battery condition should be treated as a separate procurement question, not assumed from the external appearance.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t confuse the CPU generation.

The 140CPU11302 is an older Concept/LL984-oriented Quantum processor. It should not be treated as equivalent to later Quantum CPUs simply because they share the same general platform. Software, firmware, memory, and application compatibility need to be checked.

⚠️ Trap #2 — Battery condition matters.

The documented battery is a 3 V lithium type with a 1.2 Ah capacity and approximately 10-year service life. A CPU that has spent years on a shelf may have a very different battery condition from one that has been continuously maintained in service.

PRO TIP: If replacing a failed processor, preserve the application and configuration before changing hardware whenever the existing CPU remains accessible. Do not make the replacement CPU the first place you discover that the site has no current program backup.

⚠️ Trap #3 — Modbus Plus is part of the replacement equation.

The 140CPU11302 has a dedicated Modbus Plus port. If downstream equipment or remote I/O depends on that network, replacing the controller with a newer processor may require communication-hardware and architecture changes.

Dynamic FAQ

Q: What is the Schneider 140CPU11302?
A: It is a processor module for the Modicon Quantum automation platform, using an 80186 processor at 20 MHz with Concept/ProWORX support.

Q: Does the 140CPU11302 support Modbus Plus?
A: Yes. It has one dedicated Modbus Plus network port in addition to one Modbus RS-232 serial port.

Q: How much memory does the 140CPU11302 have?
A: Published Schneider-derived specifications identify 109 kB of internal RAM.

Q: Is the 140CPU11302 still manufactured?
A: No. Schneider Electric lists it as discontinued, with the end of commercialization dated May 31, 2015. Schneider currently identifies the M580 BMEP581020 as a recommended replacement.

Q: Is BMEP581020 a direct replacement for 140CPU11302?
A: It should be treated as a platform replacement/migration, not assumed to be a direct drop-in substitute. The M580 architecture differs substantially from the legacy Quantum/Concept environment. Schneider identifies BMEP581020 as the recommended replacement, but the actual migration scope depends on the existing application and I/O/network architecture.

Q: How should New Surplus 140CPU11302 inventory be verified?
A: Request photographs of the actual CPU label, confirm the complete catalog number, inspect the physical condition, ask for battery information, and determine whether the processor was powered and function-tested. The supplier should also state the warranty period and return conditions clearly.
