SEW 31C075-503-4-00 MOVITRAC Drive

Description

Product Introduction

The SEW-EURODRIVE 31C075-503-4-00 is a MOVITRAC 31C frequency inverter designed for variable-speed control of three-phase AC motors. Published specifications identify a 380-500 VAC three-phase input, 16.0 A output, 0-400 Hz output frequency, and 7.5 kW recommended motor power.

This is a legacy drive, and that matters. The 31C is not simply an older version of a current SEW drive with identical commissioning behavior. Existing motor data, control wiring, braking arrangements, and parameter settings need to be preserved or deliberately migrated. The manufacturer has discontinued the exact part, so repair and tested surplus units are practical maintenance options.

Key Technical Specifications

The electrical ratings above are corroborated by multiple industrial parts references. The 31C075-503-4-00 is also identified as an 11 kVA, 16 A MOVITRAC unit in current surplus listings.

One specification needs careful handling: the 7.5 kW rating is the recommended motor power, while approximately 11 kVA refers to the drive’s apparent-power classification in some listings. Do not select the replacement solely from the motor’s nameplate horsepower; check the drive current rating and application duty.

Application Scenarios & The “Trench” Experience

The classic failure is ugly but familiar: the conveyor stops, the operator reports a drive fault, and somebody grabs the first modern VFD that appears to have the same horsepower rating.

That can work. It can also create three new problems.

The 31C075-503-4-00 has its own control architecture, braking arrangement, parameter set, and terminal configuration. A modern replacement is an engineering substitution, not automatically a plug-in swap.

• Material Handling — Conveyor Drives — Controls motor speed and acceleration on conveyor systems where the installed cabinet still depends on MOVITRAC 31C hardware.
• Packaging Machinery — Variable-Speed Motors — Provides adjustable motor frequency for older production equipment where replacing the complete drive system is undesirable.
• Machine Tools — Auxiliary Motor Control — Suitable for maintaining legacy three-phase motor drives when the original MOVITRAC configuration remains documented.
• Process Equipment — Pumps and Fans — Provides variable-frequency motor control for applications compatible with the drive’s voltage, current, and frequency ratings.
• Plant Maintenance — Legacy VFD Replacement — Particularly useful where downtime pressure makes repair or an exact replacement preferable to a full control-panel redesign.

Field case — plausible replacement scenario:
A production conveyor has been operating for years with a 31C075-503-4-00. The drive fails during a production run. The motor itself checks out, and the incoming three-phase supply is normal.

A technician finds a modern 7.5 kW VFD in stores. It looks like an obvious replacement.

It isn’t.

The existing cabinet uses the original drive’s control terminals and braking arrangement, and the machine’s PLC expects the established run/fault interface. Instead of introducing an unplanned controls modification during an outage, maintenance sources a tested 31C075-503-4-00, transfers the documented parameters, checks the motor protection settings, and returns the conveyor to production.

The lesson is simple: when downtime is expensive, exact hardware can sometimes be the cheapest engineering decision.

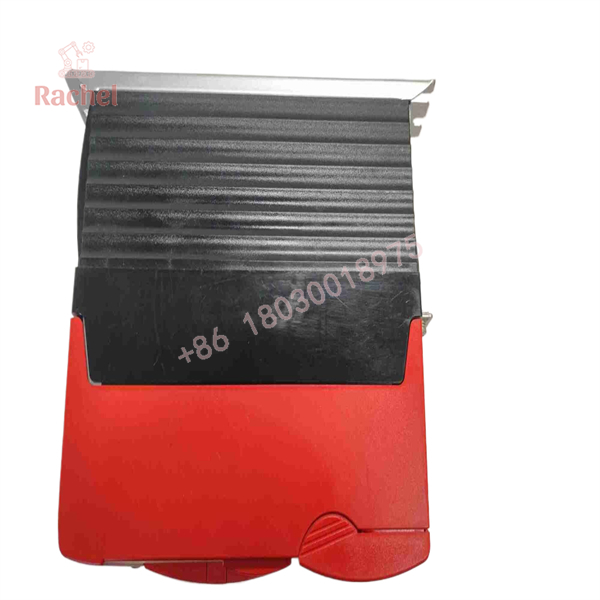

31C075-503-4-00

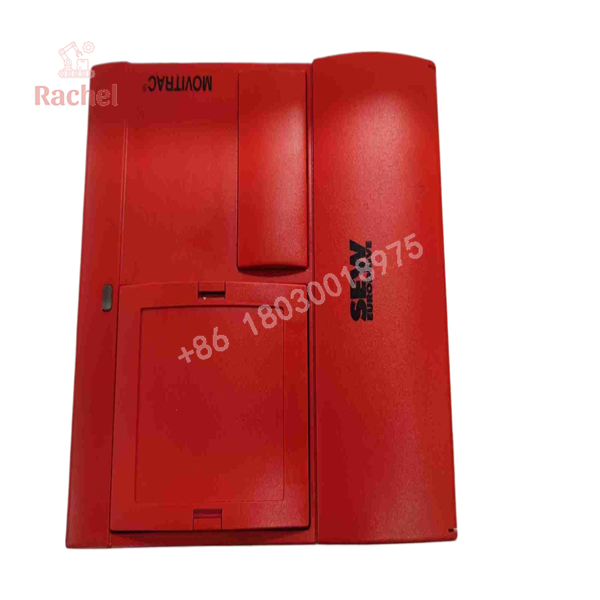

31C075-503-4-00

Transparency SOP: Quality Assurance & Testing

For a discontinued VFD, a powered functional test is far more useful than a clean enclosure.

1. Inbound Inspection
   • Verify the complete 31C075-503-4-00 nameplate.
   • Check model, serial number, input/output ratings, and manufacturing markings.
   • Inspect the cooling fan, heat sink, terminals, PCB assemblies, capacitors, and enclosure.
   • Look for evidence of overheating or previous component replacement.
2. Live Rig Testing
   • Power the inverter from an appropriate three-phase test supply.
   • Verify startup and keypad/display behavior where fitted.
   • Run the drive under controlled conditions.
   • Confirm output frequency response and motor operation.
   • Test fault and enable signals according to the available documentation.
3. Electrical Parameter Checks
   • Check input current behavior.
   • Verify output voltage and frequency.
   • Inspect DC-bus behavior under controlled conditions.
   • Check braking functionality where the test arrangement supports it.
   • Do not perform arbitrary high-voltage insulation tests directly through sensitive electronics.
4. Firmware Verification
   • Record identifiable control-board and firmware revisions.
   • Compare revision information with the failed unit when available.
   • Confirm that the installed configuration is appropriate for the replacement revision.
5. Final QC & Anti-static Packaging
   • Record serial number and test results.
   • Photograph the actual unit.
   • Protect the terminals and electronics against ESD and mechanical impact.
   • Clearly identify whether the unit is new surplus, used, or refurbished.

We don’t just ship boxes. A VFD should be powered, exercised, and checked under controlled conditions before it is trusted with a production motor.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not size the replacement by horsepower alone. The 31C075-503-4-00 is specified at 16.0 A output. Compare the actual motor full-load current and application duty against the replacement drive’s current rating.
• ❗ Photograph the terminal wiring before removing the old drive. Record every control wire, jumper, relay output, enable circuit, and braking connection. Do this before touching anything.
• ⚠️ Check the braking system. This model is listed with a 4Q configuration and brake chopper. A replacement drive with a different braking architecture may require changes to the braking resistor and control scheme.
• ❗ Do not blindly copy parameters into a newer drive. A parameter number that means one thing in the MOVITRAC 31C may not exist—or may mean something entirely different—in a newer SEW platform.
• ⚠️ IP20 means cabinet installation. The drive is not a washdown-rated enclosure. Protect it from conductive dust, moisture, coolant mist, and other environmental hazards appropriate to the installation.

Frequently Asked Questions (FAQ for Conversion)

Q1. What is the SEW 31C075-503-4-00?
It is a SEW-EURODRIVE MOVITRAC 31C frequency inverter. Its published rating is 7.5 kW recommended motor power, with 380-500 VAC three-phase input and 16.0 A output.

Q2. Is 31C075-503-4-00 discontinued?
Yes. Current industrial parts databases identify the exact model as discontinued by the manufacturer. Repair, refurbished, and surplus channels remain available.

Q3. Can I use a newer SEW drive as a replacement?
Potentially, but do not call it a drop-in replacement without checking the application. You need to compare motor current, voltage, control I/O, braking, feedback requirements if applicable, communication interfaces, mounting dimensions, and parameter behavior. A migration may require control-panel modifications.

Q4. Is the 31C075-503-4-00 suitable for a 7.5 kW motor?
Yes, 7.5 kW is the published recommended motor power. However, motor nameplate current and application duty still need to be checked. A 7.5 kW motor with unusually high current or severe overload requirements should not be evaluated by kW alone.

Q5. What are the input and output ratings?
The published ratings are 380-500 VAC, three-phase, 50/60 Hz input at 13.8 A, and three-phase output at 16.0 A with a 0-400 Hz frequency range.

Q6. Is it hot-swappable?
No. Treat it as a conventional VFD. Isolate the incoming supply, follow the plant’s electrical safety procedure, and verify the DC bus has discharged before touching the terminals. Never assume the absence of an input voltage means the internal DC bus is safe.

Q7. Can I buy a refurbished 31C075-503-4-00 with a warranty?
Yes. Secondary-market suppliers currently list tested/refurbished units, with warranty periods varying by supplier. For example, some current listings specify 12 month supplier warranties.
