Description
Product Introduction & Engineering Value
The SHINSUNG MCUL32-PWM is a dedicated PWM control module designed for industrial motion applications where accurate pulse generation and reliable machine coordination are required. It provides the signal interface needed between a controller platform and PWM-driven devices such as motor controllers, actuators, and positioning mechanisms.
For maintenance teams supporting legacy automation equipment, the MCUL32-PWM is often a critical spare because a failed motion interface can stop an entire machine even when the main controller remains operational. Keeping a tested replacement available reduces troubleshooting time and avoids unnecessary system redesign.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | SHINSUNG |
| Model Number | MCUL32-PWM |
| Module Category | Motion control / PWM output module |
| Control Function | Pulse-width modulation signal generation |
| Application | Industrial automation and machine control |
| Signal Output | PWM pulse output |
| System Integration | SHINSUNG controller-based systems |
| Installation Type | Controller expansion/interface module |
| Control Purpose | Speed, position, or actuator command signals |
| Configuration Method | Controller software and system parameters |
| Operating Environment | Industrial control cabinet applications |
| Replacement Type | OEM surplus / refurbished industrial spare |
Note: Detailed electrical specifications such as PWM channel quantity, output voltage, frequency range, and connector pin assignment should be confirmed against the specific SHINSUNG hardware revision before installation.
Field Application & The “Trench” Experience
A semiconductor equipment maintenance team supporting an older inspection machine experienced intermittent axis movement errors. Diagnostic checks showed the main CPU and servo amplifiers were functioning normally, but one PWM interface channel from the motion controller was producing unstable command signals.
The engineering team replaced the existing SHINSUNG MCUL32-PWM module, restored the stored motion parameters, and verified output timing with an oscilloscope. The machine returned to normal operation without changing the original control software.
Typical application scenarios include:
- Wafer handling equipment requiring precise motor pulse control for positioning stages.
- Precision assembly machines using PWM-controlled actuators or drive interfaces.
- Automated inspection systems requiring repeatable motion sequences and synchronized axis control.

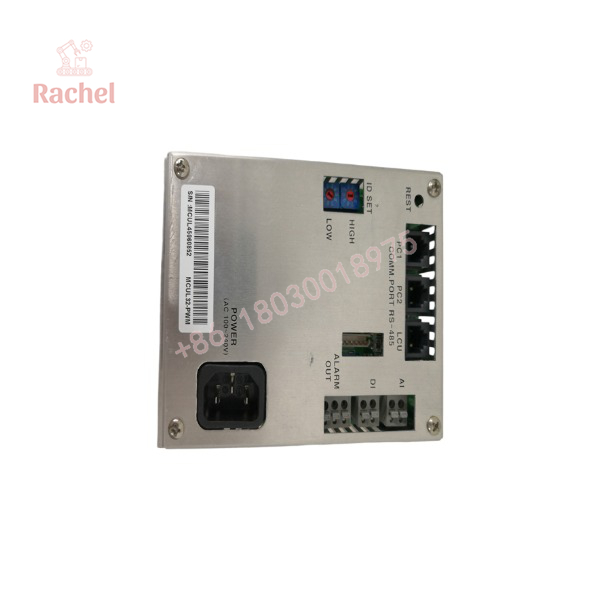

MCUL32-PWM

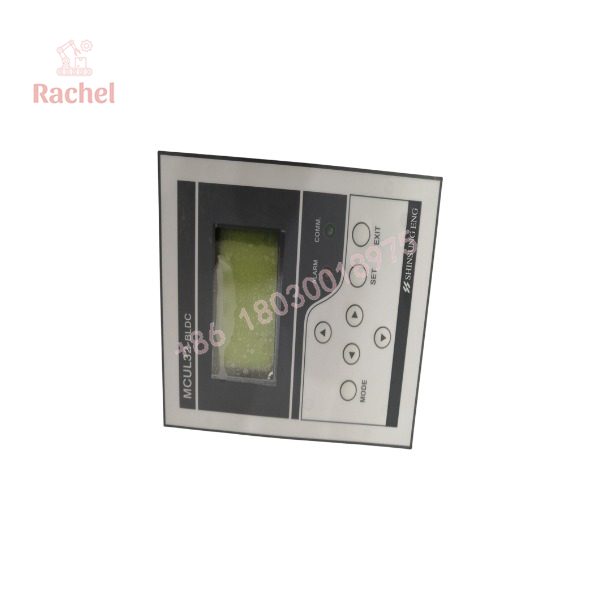

MCUL32-PWM
Transparency SOP: QA & Testing
A proper evaluation process for a SHINSUNG MCUL32-PWM replacement includes:
Inspection Phase
- Verify PCB condition and manufacturer markings.
- Check connectors for oxidation, mechanical damage, or contamination.
- Inspect components for abnormal heat exposure.
Functional Test Phase
- Confirm module power-up behavior.
- Verify controller recognition.
- Test PWM signal output stability.
- Check communication with the host motion controller.
- Perform extended runtime observation where possible.
Documentation Phase
- Record hardware revision.
- Capture test results.
- Confirm configuration compatibility before shipment.
The Veteran’s Tech Trap Guide
⚠️ Do not assume every MCUL32-PWM module is interchangeable.
Hardware revisions may use different firmware or configuration settings. Confirm the exact part marking before installation.
⚠️ PWM timing parameters are machine-specific.
Incorrect frequency, duty cycle, or pulse settings can create positioning errors even when the module appears to operate normally.
⚠️ Connector mapping must be verified.
Legacy automation equipment often uses custom wiring layouts. Installing a replacement without checking the original wiring can damage connected devices.
PRO TIP: Save the existing controller parameters before removing the failed module. The replacement hardware may be functional, but incorrect configuration can prevent the machine from returning to production.
Dynamic FAQ
Q1: What is the SHINSUNG MCUL32-PWM used for?
The SHINSUNG MCUL32-PWM is a PWM motion control module used to generate pulse-based control signals for industrial automation equipment.
Q2: Which systems use the MCUL32-PWM?
It is typically found in SHINSUNG-based industrial control platforms, including machine automation, motion control equipment, and specialized manufacturing systems.
Q3: Can I replace my failed MCUL32-PWM without changing software?
In many cases, a direct hardware replacement is possible if the replacement unit matches the original hardware revision and configuration requirements.
Q4: What information should I provide when purchasing a replacement?
Provide:
- Complete model number: MCUL32-PWM
- Existing module photos
- Hardware revision markings
- Controller model
- Application details
Q5: Are SHINSUNG MCUL32-PWM units available as new surplus?
Because this is a legacy industrial control module, availability is generally through industrial surplus inventory or professionally tested refurbished stock.
Q6: What warranty is provided for tested SHINSUNG MCUL32-PWM modules?
Warranty coverage depends on the supplier. Industrial spare-part providers typically provide limited functional warranty protection for tested surplus or refurbished units.
