Description
Product Introduction
The Suetron BT05AM702030-01 is a compact, rugged human-machine interface (HMI) designed for industrial automation control panels. Built for machine-level visualization, it allows operators to monitor process variables, adjust setpoints, and diagnose machine faults directly from the enclosure door without opening electrical cabinets.
In legacy manufacturing equipment, packaging machines, and material handling systems, Suetron panels provide reliable graphical feedback across harsh shop-floor environments. Because this specific hardware generation is obsolete, securing a fully tested BT05AM702030-01 is essential for swapping out a failed unit and restoring machine control without undertaking an expensive HMI program conversion.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Suetron Electronic GmbH (Eaton / Moeller ecosystem) |
| Part Number / Suffix | BT05AM702030-01 |
| Product Category | Operator Terminal / HMI Touch Panel |
| Display Size | 5.7 inches diagonal |
| Input Method | Integrated Touch Screen / Function Keys |
| Operating Voltage | 24V DC nominal industrial power supply |
| Communication Ports | Serial (RS232/RS485) and/or Fieldbus interface options |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Enclosure Rating | IP65 / NEMA 4X front panel when properly gasket-mounted |
| Lifecycle Status | Obsolete / Discontinued by Manufacturer |
Application Scenarios & The “Trench” Experience
It is Thursday afternoon on an automated assembly line, and the operator panel screen goes completely dark while running high-priority batch orders. The underlying PLC is running fine, but nobody can view alarm codes or enter recipe parameters because the HMI backlight inverter died. You can’t rewrite the visualization project to a modern platform today without losing hours of production testing. Dropping in a configured, tested Suetron BT05AM702030-01 replacement panel immediately restores the operator interface, saving the shift from total shutdown.
- Automated Packaging Machinery – Cartoning and sealing lines – Provides critical operator entry points for recipe selection and speed adjustments.
- Specialized Material Handling Conveyors – Routing and sorting skids – Displays live zone-tracking status and jam error logs.
- Water Treatment Package Skids – Pump and valve control boards – Offers local operator visibility for flow rates and tank level setpoints.
- Legacy OEM Control Retrofits – Direct replacement into existing enclosure cutouts without modifying sheet metal or door dimensions.

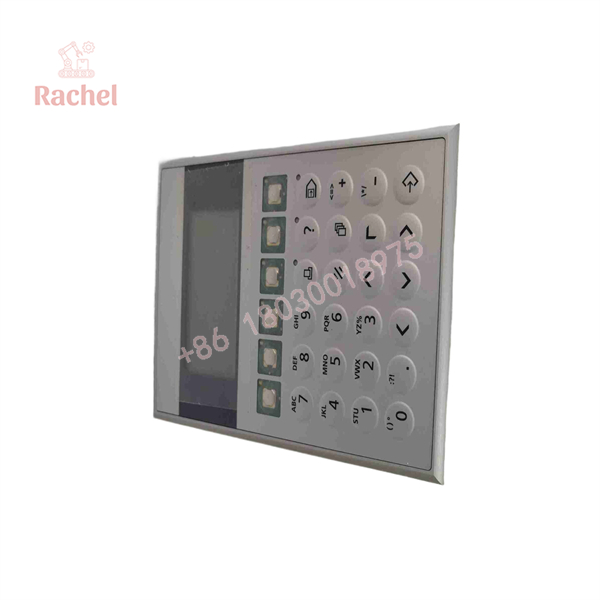

BT05AM702030-01

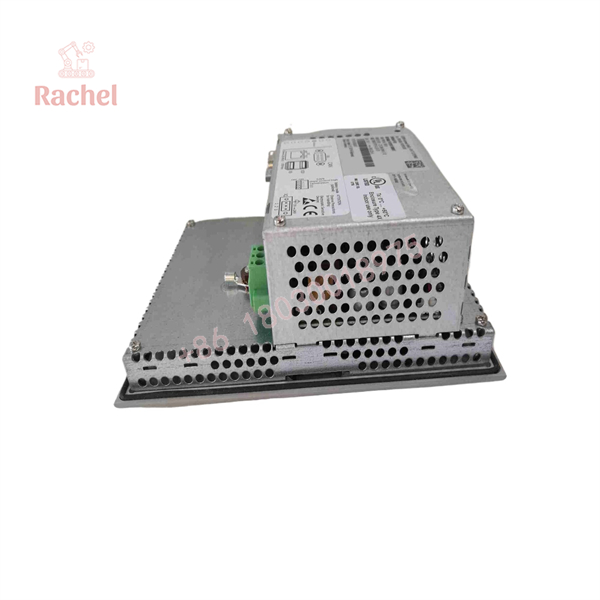

BT05AM702030-01
Transparency SOP: Quality Assurance & Testing
Industrial touch displays face high wear on backlights and touch membranes. Our testing protocol includes:
- Visual & Gasket Inspection: Examining the front IP65 sealing gasket for dry rot, checking the LCD surface for scratches, and verifying connector pin health.
- Backlight & Contrast Test: Powering the unit on a 24V DC test bench to verify lamp brightness, color uniformity, and absence of dead lines on the matrix.
- Touch Grid Calibration Check: Actuating every zone of the touch screen overlay to ensure precise coordinate tracking and response feel.
- Communication Port Validation: Stress-testing serial and network ports to confirm stable data handshakes with control hardware.
- Anti-Static Packaging: Sealed in multi-layer shielding bags and packed in high-density foam to prevent shipping shock.
The Veteran’s Tech Trap Guide
- ⚠️ Backlight Inverter Life: Older CCFL-backlit HMIs degrade over time. If your display looks dim or orange-tinted at startup, the inverter board is nearing end-of-life; keep a spare unit ready.
- ❗ Project File Backup Warning: Never assume a replacement surplus HMI contains your specific machine application program. Always maintain a local copy of the visualization project file (.suv or equivalent engineering software backup) so you can flash the unit if it arrives cleared.
- ⚠️ Gasket Torque Check: When clamping the BT05AM702030-01 into the door cutout, tighten the mounting clips evenly in a cross pattern. Overtorquing can warp the plastic bezel and ruin the NEMA seal against washdown liquids.
- ❗ Power Supply Ripple: Suetron logic boards are sensitive to DC power bus noise. If the screen randomly freezes or reboots during heavy motor contactor pulls, check your cabinet power supply filtering and grounding.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Suetron BT05AM702030-01 pre-programmed with my machine software?
A: No. Replacement HMI panels are shipped cleared or with basic factory test firmware. You must download your machine’s compiled visualization project into the unit via the programming port prior to live deployment.
Q: Can I replace this unit with a newer Eaton or different brand HMI directly?
A: Not without major engineering changes. Changing to a different brand or modern series requires rewriting the HMI software project, remapping tag addresses, and often cutting a different size hole in the enclosure door. Drop-in replacement avoids all of that downtime.
Q: What tools or cables do I need to load my project file?
A: You will need the legacy programming software package for the BT05 series and the corresponding serial communication cable specified in the manufacturer manual.
Q: Are these units brand new or refurbished?
A: Because Suetron has discontinued this line, available inventory consists of certified New Surplus or thoroughly tested Refurbished units. Every unit undergoes complete bench testing before dispatch.
Q: What warranty is provided with this operator terminal?
A: All supplied BT05AM702030-01 modules are backed by a comprehensive 12-month operational replacement warranty.
