Description
Product Introduction
The SUPCON FW252-04A is a control power supply module designed specifically for SUPCON’s WebField DCS architectures, including the widely deployed JX-300XP and ECS-100 process automation platforms. Mounted directly into the local control node rack, the FW252-04A converts primary field power into stable, low-noise DC voltage rails required by adjacent CPU controllers, communication buses, and input/output cards.
Built for high-availability process plants, the FW252-04A features built-in active current sharing and decoupling diodes for dual-redundant power configurations. This design allows two modules to run in parallel on the backplane, ensuring zero disruption to logic execution even if one power unit suffers a primary component failure. Replacing a degraded FW252-04A during scheduled maintenance prevents catastrophic node drops and unprogrammed plant trips.
Key Technical Specifications
| Parameter | Value / Specification |
| Model Number | FW252-04A |
| Manufacturer | SUPCON (Zhejiang SUPCON Technology) |
| System Compatibility | WebField JX-300XP, ECS-100 DCS racks |
| Module Type | Node Rack Control Power Supply Card |
| Input Voltage Range | 24 VDC (±10%) / 220 VAC (Model Sub-variant dependent) |
| Output Voltage | Regulated 5 VDC (Logic Bus) & 24 VDC (I/O Bus) |
| Redundancy Support | Dual-module active 1+1 parallel redundancy |
| Protection Circuits | Over-voltage, short-circuit, over-current auto-recovery |
| Diagnostic LEDs | Power OK, Output Fault, Over-Temperature indicators |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Application Scenarios & The “Trench” Experience
A continuous chemical distillation unit lost communication to an entire field I/O rack during a midnight storm. The main DCS console flashed “Node Offline” alarms across three loop controllers. Troubleshooting revealed that an aging power supply card had suffered dried-out filter capacitors; under heavy ambient heat, its 5V logic rail drifted down to 4.1V, killing the local bus transceivers. The plant was minutes away from automated emergency shutdown trips. Swapping in a pre-tested SUPCON FW252-04A module restored the backplane voltage instantly, re-establishing node communication and keeping the plant running.
- Chemical & Petrochemical Refineries: Providing continuous power to redundant JX-300XP control nodes managing reactor loops.
- Thermal Power Generation: Supplying low-ripple logic power for boiler protection and burner management I/O racks.
- Pharmaceutical Batching: Maintaining stable voltage rails for precision analog input processing on critical batch skids.
- Water Treatment Facilities: Driving local control rack electronics across remote pumping stations over long run hours.
Transparency SOP: Quality Assurance & Testing
We don’t just ship visual surplus; every SUPCON FW252-04A module undergoes a 5-step engineering qualification protocol before entering sealed storage:
- Inbound Physical Inspection: Check the backplane connector pins, component solder joints, and electrolytic capacitors for swelling, heat stress, or mechanical damage.
- Static Power Rail Testing: Verify internal transformer isolation, primary-to-secondary resistance, and input diode bridge integrity with a digital multimeter.
- Full-Load Backplane Simulation: Insert the FW252-04A into a live SUPCON test rack and apply maximum rated current load across all output rails for a minimum 4-hour thermal burn-in run.
- Redundancy & Bus Ripple Audit: Test parallel current sharing with a secondary module while measuring output voltage ripple on an oscilloscope to confirm noise stays below OEM limits.
- Clear & ESD Packaging: Clean edge connectors with isopropyl alcohol, log hardware revision numbers, and enclose the unit in static-shielding metallic bags.

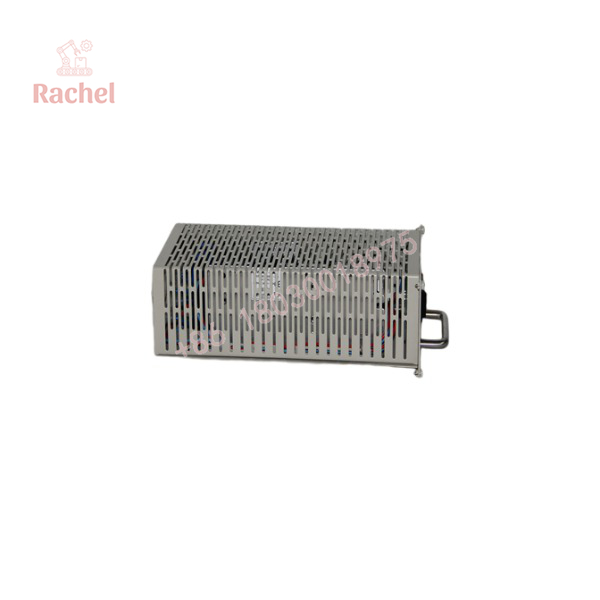

FW252-04A

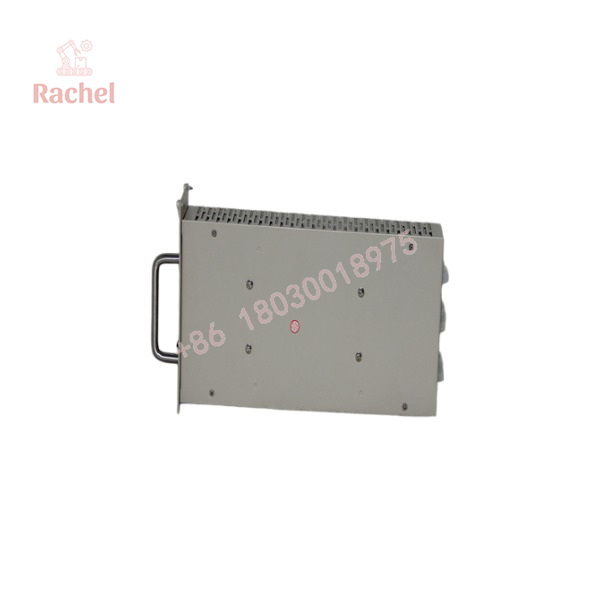

FW252-04A
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Backplane Pin Alignment: Never force the FW252-04A card into the rack slot! The rear multi-pin DIN connector passes high-current power lines right next to sensitive bus logic pins. If a pin is bent or misaligned, sliding the card in hard will short the 24V supply directly into the 5V logic backplane, destroying every CPU card on that rack.
❗ Differentiating -04 vs -04A Revisions: Pay close attention to the letter suffix! While the FW252-04 and FW252-04A look identical from the front panel, internal power circuit revisions or jumper positions can differ. Always verify backplane pin compatibility and output voltage trim configurations against your cabinet wiring drawings before powering up.
⚠️ Dual Power Source Isolation: If running two FW252-04A modules in a 1+1 redundant setup, ensure each power module receives its input feed from an independent breaker circuit (or separate UPS lines). Feeding both redundant supplies from a single branch circuit breaker completely eliminates your fault tolerance.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the FW252-04A module while the DCS node is live?
A: Yes, provided the rack is operating with a working redundant secondary power module installed. However, remove and seat the card smoothly in one swift motion to prevent contact bounce on the backplane power pins.
Q: What causes the “Power Fault” LED to turn on?
A: The red fault indicator usually signals an output voltage drop (under 90% nominal), an internal thermal shutdown state, or an external short-circuit on the 24V I/O bus loop.
Q: Can I use the FW252-04A in non-SUPCON racks?
A: No. The card form factor, keying slots, and backplane pinouts are proprietary to SUPCON JX-300XP / ECS-100 system enclosures.
Q: Are these power supply cards brand new or surplus?
A: Because legacy SUPCON JX-300XP hardware is no longer in active primary production, most available units are certified New Surplus (unused OEM stock) or fully refurbished and bench-tested surplus modules.
Q: What warranty is included with this unit?
A: Every SUPCON FW252-04A module includes a full 12-month replacement warranty backed by our component testing laboratory.
