SUPCON PW723 DC Power Supply Module

Description

Product Introduction & Engineering Value

Power supply failures rarely give operators much warning. A single degraded DC supply can create controller resets, communication faults, or unexplained I/O dropouts. The PW723 addresses this requirement by providing a dedicated industrial-grade power source for SUPCON ECS-700 control environments.

For plants operating SUPCON DCS installations, keeping a tested PW723 spare reduces troubleshooting time during unexpected shutdowns. Replacement work still requires verification of load capacity, wiring polarity, and system redundancy configuration before returning the control station to service.

Technical Specifications

The PW723 belongs to the ECS-700 DC power supply family, which includes PW721, PW722, and PW723 models. These modules provide wide input voltage capability, protection functions, and power fault diagnostics for DCS applications.

Field Application & The “Trench” Experience

A chemical processing facility operating an older ECS-700 control system reported intermittent controller communication alarms during night shifts. The initial suspicion was a network issue, but maintenance engineers found the 24 VDC supply output fluctuating under load. The aging PW723 module was replaced during a planned maintenance window, followed by voltage verification at the controller terminals. The DCS returned to stable operation without software changes.

The lesson from this type of failure is simple: DC power quality is part of the control system architecture, not just a cabinet accessory.

Typical applications include:

• ECS-700 DCS controller cabinet power distribution
• Process unit control stations requiring redundant 24 VDC sources
• Remote I/O cabinets with SUPCON control modules
• Industrial instrumentation power supply systems

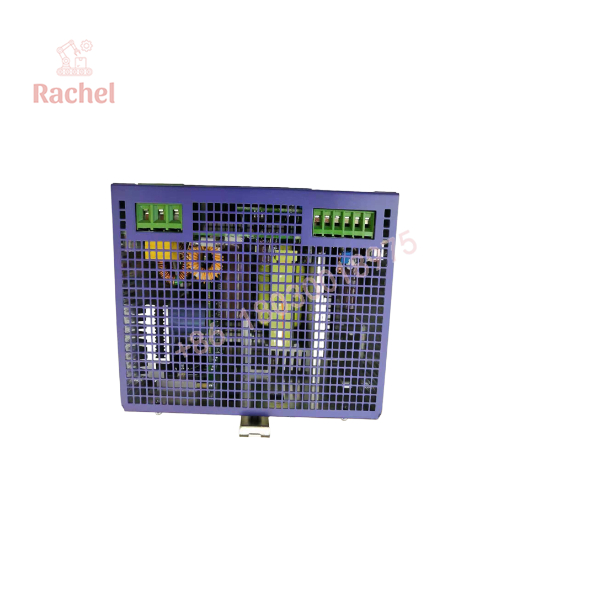

PW723

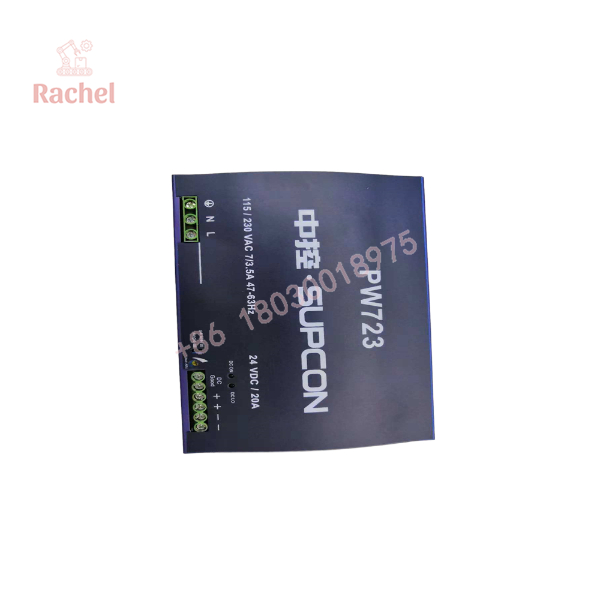

PW723

Transparency SOP: QA & Testing

A replacement PW723 should go through a controlled verification process before being installed in a production DCS cabinet.

Testing sequence:

1. External inspection
   • Check enclosure condition
   • Verify model label and terminal integrity
   • Inspect DIN rail mounting hardware
2. Electrical verification
   • Apply controlled AC input
   • Measure DC output voltage stability
   • Check response under simulated load
3. Functional testing
   • Verify alarm indicators
   • Confirm output regulation
   • Record test results before shipment

For new surplus and refurbished inventory, the difference is not only physical appearance. The important factor is whether the module has been electrically verified before entering a critical spare parts inventory.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Confirm the exact power model before replacement

The ECS-700 family contains multiple power supply models, including PW721, PW722, and PW723. They may appear similar but should not be exchanged without checking system documentation and load requirements.

⚠️ Do not ignore AC input selection

The PW723 supports different AC input ranges. Incorrect wiring or improper input configuration can damage the unit or cause unstable operation.

⚠️ Check redundancy design

Some ECS-700 installations use redundant power configurations. When replacing a module, verify whether a redundancy module such as PW701, PW702, or PW703 is part of the original design.

Dynamic FAQ

Q1. What system is the SUPCON PW723 used with?

The PW723 is designed for the SUPCON ECS-700 distributed control system and provides 24 VDC power for system components.

Q2. Is the PW723 a controller module?

No. The PW723 is a power supply module. It does not execute control logic; it supplies regulated DC power to DCS hardware.

Q3. Can PW723 replace PW721 or PW722 directly?

Not automatically. Replacement depends on cabinet design, output requirements, redundancy configuration, and approved system documentation.

Q4. What should be checked before installing a replacement PW723?

Verify:

• AC input wiring
• DC output voltage
• Current load requirements
• Existing redundancy arrangement
• Cabinet ventilation conditions

Q5. Are surplus PW723 modules tested before shipment?

A properly managed surplus or refurbished PW723 should include visual inspection, electrical testing, and output verification before installation.

Q6. What warranty is normally provided for a PW723 replacement unit?

Warranty coverage depends on supplier classification. New surplus units and refurbished industrial spare parts are typically supplied with limited warranty terms covering functional performance after installation.
