TDK-Lambda DLP120-24-1 DIN Rail Power Supply

Description

Product Introduction & Engineering Value

The TDK-Lambda DLP120-24-1 is a 120 W DIN rail power supply designed for industrial control cabinets where a regulated 24 VDC source is required. Its 24 VDC / 5 A output makes it suitable for PLC systems, remote I/O, sensors, relays, HMIs, and other control-circuit loads.

For replacement work, the important checks are not just voltage and wattage. Confirm the existing cabinet’s input configuration, mounting arrangement, wiring, load demand, environmental conditions, and required protection characteristics before substituting the unit.

Technical Specifications

Procurement note: Do not assume that every DLP120-24-1 listing has identical input, terminal, protection, or certification details. The suffix and nameplate should be checked against the installed unit before ordering a replacement.

Field Application & the “Trench” Experience

A typical replacement scenario occurs when a PLC cabinet begins producing intermittent low-voltage alarms. The 24 VDC distribution initially looks acceptable with no load, but the voltage drops when several field devices energize simultaneously. Instead of immediately replacing the PLC or I/O modules, the maintenance engineer checks the cabinet power supply, verifies the 24 VDC load, inspects the DC distribution terminals, and compares the existing PSU’s nameplate with the proposed replacement.

With a properly matched DLP120-24-1, the replacement can restore the cabinet’s 24 VDC supply without changing the downstream PLC architecture. The critical step is confirming that the power supply is actually being substituted for the same electrical duty—not simply selecting another unit labeled “24 VDC.”

Niche application scenarios

• PLC remote-I/O cabinet: Supplying 24 VDC to distributed I/O, interface relays, and instrumentation.
• Packaging-machine control panel: Powering sensors, solenoid interfaces, safety-control auxiliaries, and operator-interface equipment.
• Process skid instrumentation cabinet: Providing DC power to transmitters, signal conditioners, and control components where stable auxiliary power is required.

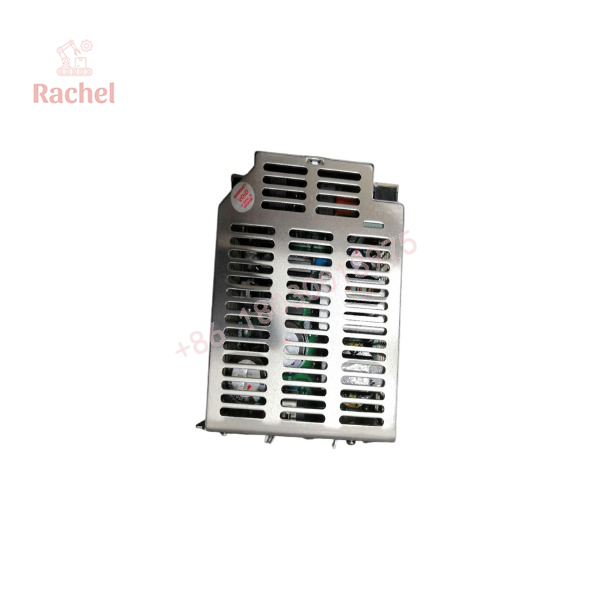

DLP120-24-1

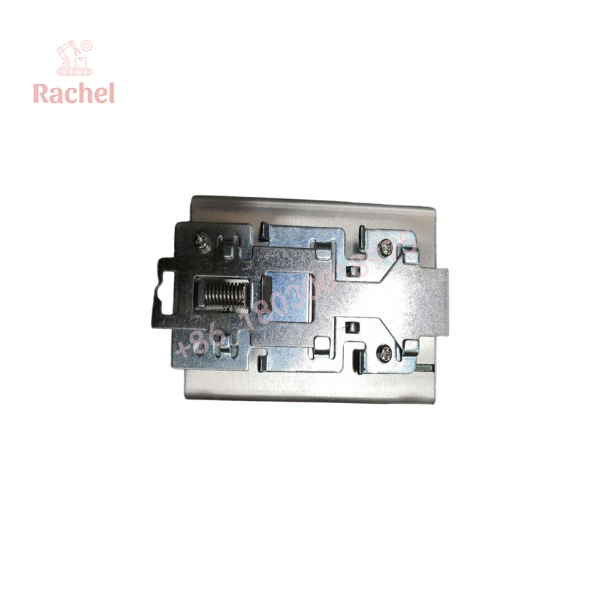

DLP120-24-1

Transparency SOP: QA & Testing

For New Surplus inventory, a sensible receiving and verification process should include:

1. Identity check — Confirm the TDK-Lambda manufacturer marking, DLP120-24-1 model designation, labels, terminals, and physical configuration.
2. Visual inspection — Check the enclosure, DIN-rail interface, terminal blocks, labels, and ventilation areas for shipping or storage damage.
3. Electrical verification — Verify the output voltage under controlled test conditions and confirm that the unit responds normally to an appropriate load.
4. Documentation review — Where available, compare the nameplate and revision information against the customer’s installed unit.
5. Packaging inspection — New-surplus equipment should be packaged to prevent terminal, enclosure, and connector damage during shipment.

For refurbished stock, the test record should additionally identify what was inspected, what was replaced or repaired, and what load or functional test was performed.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching voltage is not enough.
A 24 VDC replacement with the wrong output-current capacity, input range, mounting arrangement, or protection behavior can create problems that are not immediately obvious during a no-load test.

⚠️ Trap #2 — Check the actual cabinet load.
A nominal 120 W / 5 A supply should not automatically be treated as having 5 A of continuously available capacity in every installation condition. Consider ambient temperature, enclosure ventilation, startup current, and the duty cycle of connected loads.

⚠️ Trap #3 — Verify the suffix before purchasing.
DLP-series model numbers can look deceptively similar. Compare the complete ordering code and nameplate rather than buying solely from a shortened model description.

PRO TIP: Photograph the existing PSU’s complete nameplate before ordering. For legacy automation replacements, that single photo often prevents an incorrect purchase.

Dynamic FAQ

Is the DLP120-24-1 a 24 VDC power supply?

Yes. The DLP120-24-1 is a TDK-Lambda DLP-series industrial power supply with a nominal 24 VDC output and 120 W / 5 A rating.

What equipment can it power?

Typical loads include PLC control circuits, remote I/O, sensors, relays, instrumentation, HMIs, and other 24 VDC automation devices, provided the total load remains within the applicable power-supply limits.

Is the DLP120-24-1 DIN rail mountable?

The DLP series is intended for DIN-rail industrial control-panel applications. Confirm the exact mechanical configuration against the unit being replaced before installation.

Can I replace another 24 VDC / 5 A power supply with this model?

Not automatically. Verify input requirements, output characteristics, mounting dimensions, wiring terminals, environmental requirements, protection behavior, and certification requirements before approving the substitution.

How can I verify New Surplus authenticity?

Check the manufacturer marking, complete model number, nameplate information, physical condition, packaging, and available traceability. A New Surplus unit should be unused or excess original inventory rather than represented as factory-new without evidence.

What warranty should I expect?

Warranty terms depend on the seller and the stock condition. Before purchase, confirm the warranty period, DOA policy, return conditions, and whether the warranty covers functional failure after installation. For critical automation spares, obtain these terms in writing before placing the order.
