TEL 1381-648241-12 Mark 7 Mark 8 Main Arm Interface Board

Description

Product Introduction

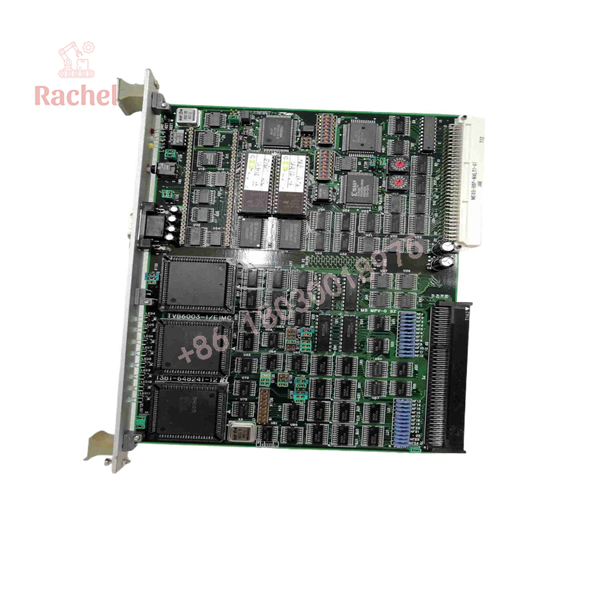

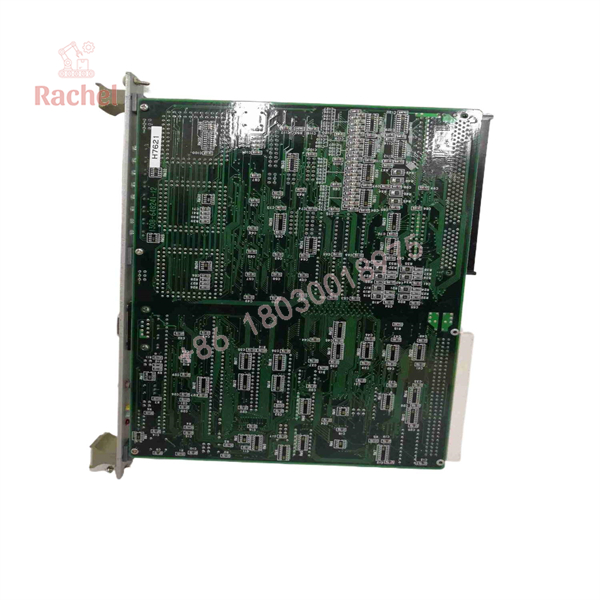

The TEL 1381-648241-12 (TVB6003-1/EIMC) is an main arm interface control board engineered specifically for Tokyo Electron Mark-7 and Mark-8 photolithography track systems. Installed within the main wafer handling robotics enclosure, this PCB routes critical drive signals, encoder feedback loops, and interlock safety logic between the main rack controller and the wafer transfer arm assembly.

Designed to maintain nanometer-level repeat accuracy in high-throughput cleanrooms, the 1381-648241-12 features noise-suppressed differential signal paths built to withstand continuous multi-axis motion duty cycles. Unlike generic motor interface cards, its hardware architecture is tuned to TEL’s proprietary EIMC communication protocol, ensuring microsecond-level synchronization between chemical dispense timing and mechanical wafer placement.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an EIMC main arm communication fault hits a TEL Mark-8 track, the entire lithography cell halts immediately. Scanner tools upstream choke on incoming wafers, and track coater/developer units sit idle while processing chemistry ages in the lines. In these high-pressure moments, a blown trace or failing driver IC on the 1381-648241-12 board routinely presents as a cryptic motion axis timeout or encoder mismatch error. Swapping this card directly out of spare parts stock gets the robot moving again without forcing a week-long tool recalibration.

• Photolithography Coater/Developer Tracks: Main Arm Robot Drive – Manages position feedback and motor drive logic for primary wafer transport between process units.
• Wafer Process Automation: High-Throughput Cleanroom Bays – Provides stable, low-latency execution of robot motion commands during continuous 24/7 fab operations.
• Legacy Tool Sustainment: 200mm Fab Maintenance – Serves as a direct drop-in replacement card to maintain legacy Mark-7/8 toolsets long past OEM phase-out support.

Field Case Study: A fab engineer hit a persistent robot axis home-positioning fault on a TEL Mark-7 track during peak production. Recalibrating the arm motors yielded no fix, and the line was losing $15,000 per hour in unprocessed wafers. Field inspection revealed thermal stress fractures on the TVB6003-1 board’s interface logic chips. Pulling a tested 1381-648241-12 surplus unit from the warehouse, the team swapped the PCB, ran an automated self-check cycle, and returned the tool to full production within 35 minutes.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual TEL tool backplanes. Every 1381-648241-12 PCB undergoes our strict 5-step QA process before shipment:

1. Inbound Inspection: Optical micro-inspection of surface-mount components, edge connectors, solder pads, and trace runs to verify zero heat degradation or corrosion.
2. Continuity & Power Rail Checks: Multi-point bus testing to confirm no short circuits exist across internal power planes or signal distribution lines.
3. Live Rack Handshake Test: Board insertion into a dedicated TEL testing rack to verify power-on handshakes, register initialization, and EIMC communications.
4. I/O & Encoder Signal Validation: Oscilloscope verification of differential encoder communication and I/O switching response under full load simulation.
5. ESD Chemical Wash & Packaging: Deep cleaning with electronic-grade solvent followed by vacuum sealing in ESD shielding bags with desiccant packaging.

1381-648241-12

1381-648241-12

The Veteran’s Tech Trap Guide

• ⚠️ Inspect Card Cage Gold Fingers First: Before sliding this card into the backplane, inspect the edge connectors with a loupe. Dirt or bent guide pins inside an aging TEL card cage will peel the gold plating off your replacement 1381-648241-12 board instant contact.
• ❗ Verify Board Jumper Configurations: Do not assume the replacement board jumpers match your failed card. Always match jumper settings and onboard DIP switches against the original unit before slotting the new board into the rack.
• ⚠️ Never Pull the EIMC Board under Power: Hot-unplugging this interface card will send voltage transients through the main arm encoder lines. You will blow the onboard receiver chips on the robot motor drive unit. Kill the 24V DC logic supply and main track breaker first.

Frequently Asked Questions

Q: Is the TEL 1381-648241-12 interchangeable with the TVB6002 series?

A: No. While they belong to similar TEL track generations, the TVB6003-1/EIMC board features updated pinouts, altered logic pathways, and revised communication timings specifically for Mark-7 and Mark-8 motion platforms.

Q: Do I need to perform software calibration after swapping this board?

A: Usually, no. The 1381-648241-12 acts as an EIMC signal and controller interface card. If motor mechanical mounts remain untouched, the existing robot calibration parameters stored on the main controller CPU will load automatically.

Q: What causes this specific main arm board to fail?

A: The most common failure modes are thermal aging of onboard driver ICs, voltage spikes from failing 24V supply modules, and mechanical stress on edge connectors caused by high cleanroom vibration.

Q: Are these units brand-new from TEL?

A: Tokyo Electron has largely discontinued direct parts support for legacy Mark-7/8 toolsets. Our stock consists of fully tested pre-owned units and certified new-surplus modules sourced from global semiconductor fab spare reserves.

Q: What warranty coverage do you provide on this part?

A: Every 1381-648241-12 card comes backed by our standard 12-month full replacement warranty. If the board exhibits any functional defect during operation, we replace it immediately.
