Teledyne DALSA CR-GEN0-M6400R3 Camera | Genie Industrial Vision

Description

Product Introduction & Engineering Value

Automated optical inspection (AOI) lines require high-speed image capture hardware that maintains crystal-clear frame fidelity without dropping packets across the network. The Teledyne DALSA CR-GEN0-M6400R3 industrial camera delivers precise area scan capabilities engineered specifically for demanding factory automation environments.

Built to withstand continuous shop-floor operation, this camera integrates seamlessly into existing machine vision software frameworks via standard GigE Vision protocols. Quality control engineers rely on its dependable shutter control and high-resolution sensor output to detect micro-defects and ensure absolute dimensional accuracy on high-speed production lines.

Technical Specifications

• Camera Family: Teledyne DALSA Genie Industrial Area Scan Series
• Interface Protocol: Gigabit Ethernet (GigE Vision compliant) supporting standard Cat6 cabling
• Sensor Type: High-performance solid-state monochrome/color imaging sensor (variant dependent)
• Resolution & Speed: High-resolution frame capture optimized for real-time industrial inspection
• Lens Mount Standard: Standard C-mount / CS-mount optical interface
• Power Supply: Power over Ethernet (PoE) or external DC power via isolated multi-pin I/O connector
• Operating Temperature: 0°C to 50°C (32°F to 122°F) standard industrial cabinet range
• Enclosure Rating: Ruggedized industrial housing designed for machine-mount durability

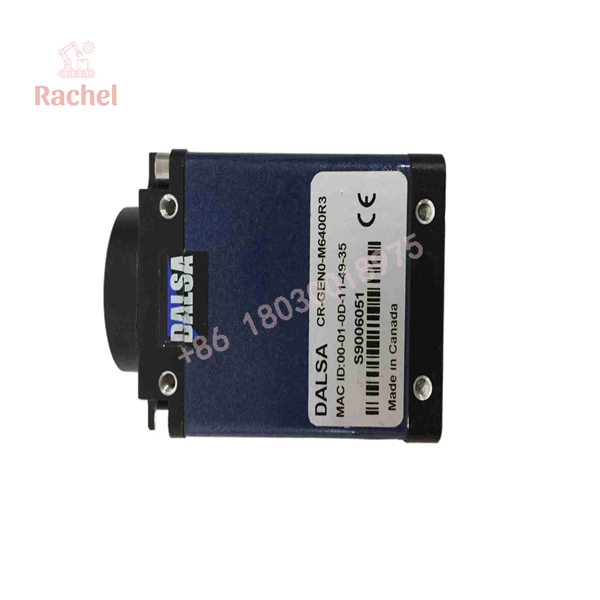

CR-GEN0-M6400R3

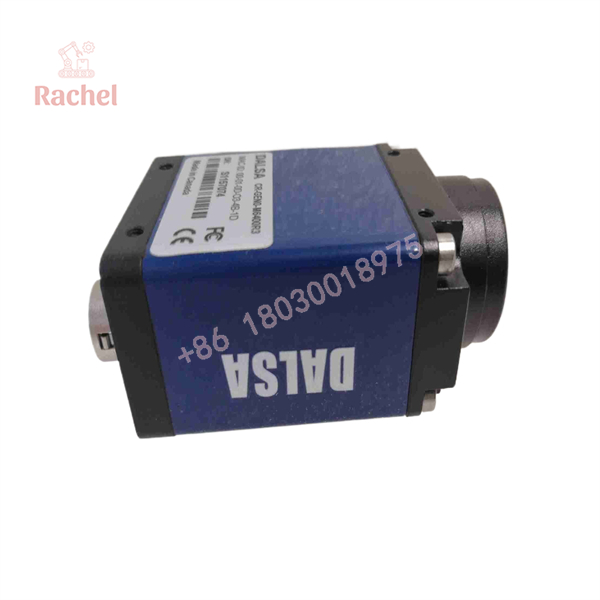

CR-GEN0-M6400R3

Field Application & The “Trench” Experience

During a high-volume packaging run on a pharmaceutical blister line, an inspection camera overlooking the seal-integrity station suffered an internal sensor failure, bringing the entire packaging cell to a halt. Halting production for an unverified replacement model would have meant thousands of dollars in delayed shipments. The automation technician retrieved a verified New Surplus DALSA CR-GEN0-M6400R3 camera from the instrumentation cage, mounted it to the optical bracket, and connected the GigE cable. Once the IP address and trigger settings were restored via the Sapera LT imaging software, the camera locked onto the trigger strobe and resumed high-speed defect detection within fifteen minutes.

Targeted Application Scenarios:

• High-Speed Electronic Component PCB Inspection: Detecting missing solder joints and misaligned surface-mount components.
• Automotive Precision Part Metrology: Verifying thread pitch and dimensional tolerances on machined steel fasteners.

Transparency SOP: QA & Testing

1.Optical & Sensor Inspection:10 min.

Inspect the C-mount thread integrity, glass filter coating, and sensor surface under high magnification for dust, scratches, or moisture.

2.PoE & Network Handshake Test:30 min.

Connect the camera to a test rig running Teledyne DALSA Sapera or GenICam-compliant software via GigE to verify packet transmission and link speed.

3.Trigger & Strobe Synchronization:1 hr.

Cycle external hardware triggers at maximum rated frequency to test exposure timing, strobe output accuracy, and frame buffer stability.

4.Thermal Burn-In Cycle:24 hrs.

Operate the camera continuously in an ambient thermal test chamber for 24 hours to screen out latent component defects prior to shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ GIGE CABLE LENGTH AND SHIELDING HAZARD: Never run standard unshielded office Ethernet cables to the CR-GEN0-M6400R3 in heavy industrial environments. High-voltage motor drives and variable frequency inverters generate electromagnetic interference (EMI) that will corrupt GigE packets and cause dropped frames. Always use industrial-grade, double-shielded Cat6 cables with grounded connectors.

PRO TIP: Before replacing a failed vision camera, note its assigned static IP address or MAC configuration in your machine vision software. Swapping a unit without matching the network configuration will prevent the frame grabber or host PC from discovering the device on the subnet.

Dynamic FAQ

• Q: Is the CR-GEN0-M6400R3 compatible with standard GigE Vision software packages?
  • A: Yes, it complies fully with GigE Vision and GenICam standards, ensuring seamless integration with Teledyne DALSA Sapera LT, Halcon, LabVIEW, and other major machine vision platforms.
• Q: Can this camera be powered via Power over Ethernet (PoE)?
  • A: Yes, it supports IEEE 802.3af Power over Ethernet, allowing both power and data to be transmitted over a single Ethernet cable, though a separate 12V DC auxiliary power input is also available.
• Q: Are your replacement cameras brand new or surplus stock?
  • A: Our inventory consists of verified New Surplus and thoroughly reconditioned, fully bench-tested units ready for immediate deployment.
• Q: What warranty coverage comes with this item?
  • A: Every DALSA CR-GEN0-M6400R3 unit is backed by our comprehensive 12-month full replacement warranty covering all functional performance aspects.
