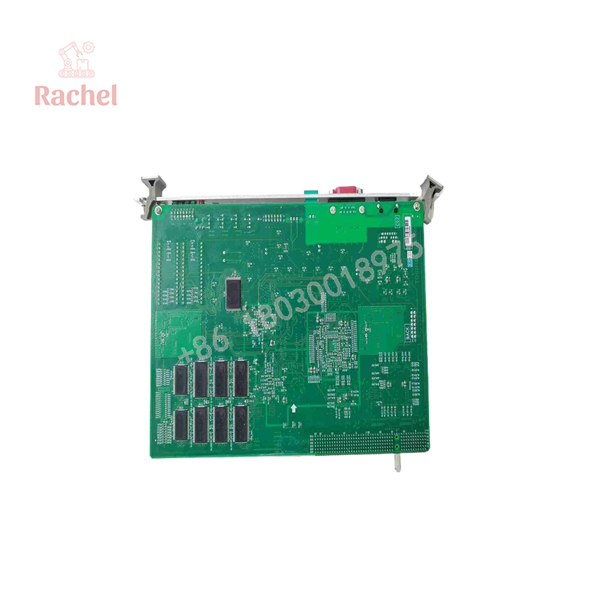

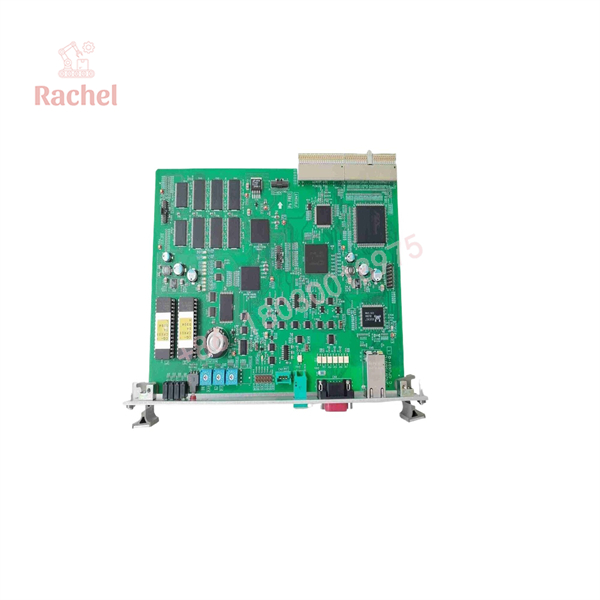

Toshiba CPUX01-01 TOSMAP Turbine Control CPU PCB Module

Description

Product Introduction

The Toshiba CPUX01-01 is a dedicated central processing unit circuit board designed for the TOSMAP turbine generator control platform. It sits in the primary CPU slot of a 6U Eurocard rack and runs the core real-time algorithms that regulate steam or gas turbine speed, generator excitation current, and plant auxiliary interlocks.

What sets this board apart from general-purpose PLC CPUs is its fixed 10 ms control cycle and proprietary TOSMAP backplane bus. That combination delivers the deterministic timing power-plant operators demand when protecting high-speed rotating equipment. In field practice, this module aggregates analog and digital signals from the entire rack, executes 32-bit floating-point PID loops, and stores trip logs in onboard non-volatile memory so root-cause data survives a full power loss.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: it’s 02:17 on a summer night and a 215 MW steam turbine trips on an unexplained overspeed protection fault. The control room goes quiet. Every minute of downtime costs the plant thousands. The night shift discovers the primary CPU board has stopped responding. That’s the moment you need a known-good CPUX01-01 sitting on the shelf.

• Thermal Power Generation – Main steam turbine electro-hydraulic control (EHC) – Required for 10 ms speed and load regulation loops that generic PLCs cannot guarantee.
• Combined-Cycle Gas Turbine Plants – Generator excitation and auxiliary interlock logic – Native TOSMAP bus compatibility eliminates gateway latency.
• Cogeneration / Waste-Heat Recovery – Turbine speed and extraction pressure control – Onboard Flash retains trip logs for post-event analysis without external recorders.
• Hydroelectric Units – Governor and generator protection interlocks – Conformal-coated PCB tolerates humid powerhouse environments.

Field Case Study
A Midwestern utility lost both primary and backup CPU boards on a 300 MW unit during a summer heat wave. Lead time from the OEM was quoted at 18 weeks. We supplied a tested new-surplus CPUX01-01 the next morning. The plant restored the primary controller in under four hours, avoided a forced outage, and later ordered a second board as a permanent spare. Downtime cost avoided: well into six figures.

CPUX01-01

CPUX01-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test every board on actual TOSMAP racks.

1. Inbound Inspection – Visual anti-counterfeit check, OEM part-number verification, conformal coating integrity, and connector pin inspection under magnification.
2. Live Rig Testing – Powered on a genuine TOSMAP backplane; full power-on self-test, backplane bus handshake, Ethernet link, and RS-485 communication verified.
3. Electrical Parameter Checks – Backplane voltage rails measured under load; isolation resistance checked on communication ports.
4. Firmware Verification – Exact firmware revision logged and matched against known good reference.
5. Final QC & Anti-static Packaging – Functional burn-in, serial-number documentation, and sealed ESD-safe packaging with desiccant.

The Veteran’s Tech Trap Guide

⚠️ Firmware mismatch kills you. The new board may power up fine but refuse to talk to the existing I/O cards if the firmware revision is different. Always pull the revision string from the running unit before you order the spare.

❗ Never hot-swap the primary CPU while the turbine is online. Switch control to the redundant CPU first, then pull the card. Yanking it live can corrupt the backplane and take the backup with it.

⚠️ Photograph the front-panel LEDs and any jumper positions before removal. Some early boards had configuration jumpers that later revisions eliminated. Guessing wrong means a second outage.

❗ ESD is still the silent killer. These boards carry conformal coating, but the edge connectors remain vulnerable. Wrist strap every single time—no exceptions in a power-plant control room.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the CPUX01-01?
A: No. Pulling the primary CPU live risks backplane damage and loss of both controllers. Always transfer to the redundant CPU first.

Q: Is firmware compatible across revisions?
A: Not always. Match the exact firmware revision of the installed board. We log the revision on every unit we ship so you can verify before installation.

Q: How does this compare to later TOSMAP CPU boards such as CPUX02 or CPUW series?
A: The CPUX01-01 is an earlier generation. Later boards may offer higher processing speed or additional Ethernet ports, but they are not always drop-in compatible without system-level changes. Confirm slot and bus compatibility with your specific TOSMAP chassis.

Q: What warranty do you provide?
A: 12 months from ship date on all tested new-surplus units.

Q: Why is this cheaper than buying direct from Toshiba?
A: These are genuine OEM boards recovered from decommissioned or excess inventory. They are not refurbished or cloned. Global surplus channels simply move inventory that the OEM no longer stocks at list price.

Q: Is this board still supported?
A: The TOSMAP platform is mature and many plants still run it. Spare parts are available through surplus channels, but long-term OEM support is limited. Keeping a tested spare on the shelf is the practical approach most plants take.

Q: Do you test communication with actual TOSMAP I/O modules?
A: Yes. Every board is powered on a live TOSMAP rack and verified for bus handshake, Ethernet, and serial communication before it leaves.
