Description
Product Introduction

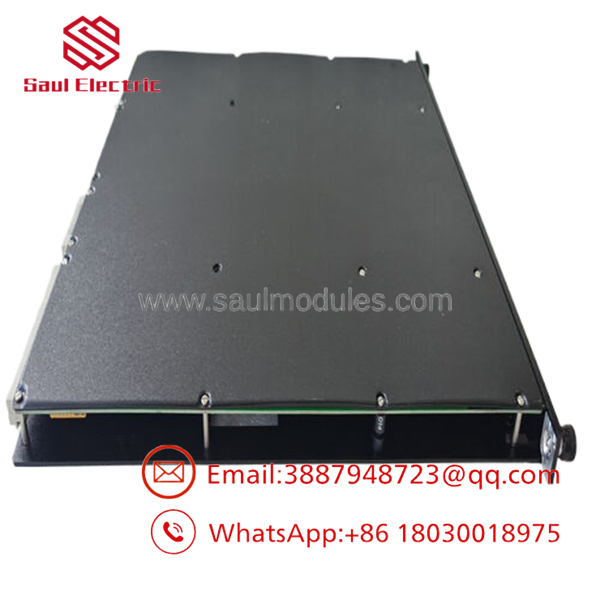

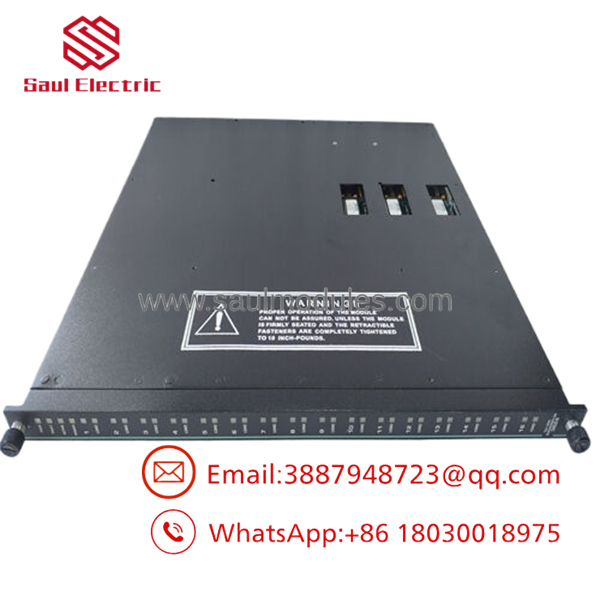

The Triconex 3624 is a 32-point supervised Digital Output Module designed for the Tricon Safety Instrumented System (SIS). It interfaces with field devices including shutdown solenoids, motor contactors, annunciators, emergency isolation valves, and interposing relays. The module operates within Tricon’s Triple Modular Redundant (TMR) architecture, allowing three independent channels to vote output commands while continuously monitoring circuit integrity.
Compared with conventional PLC output modules, the 3624 incorporates continuous output supervision, fault diagnostics, and online replacement capability. In real plants, these diagnostics often identify wiring faults, failed coils, or power supply problems long before operators notice abnormal equipment behavior. Verify the termination panel, field voltage, and Tricon chassis compatibility before installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model | 3624 |
| Product Type | TMR Supervised Digital Output Module |
| System | Tricon Safety Instrumented System |
| Output Channels | 32 Digital Outputs |
| Nominal Output Voltage | 24 VDC |
| Output Type | Supervised Solid-State Outputs |
| Redundancy | Triple Modular Redundant (TMR) |
| Diagnostics | Continuous Output Monitoring |
| Fault Detection | Open Circuit, Short Circuit, Loss of Field Power |
| Isolation | Optical Isolation Between Logic and Field Circuits |
| Online Replacement | Supported (Per OEM Procedures) |
| Status Indicators | PASS, ACTIVE, FAULT, Individual Channel LEDs |
| Typical Power Consumption | Approximately 12 W |
| Typical Applications | SIL 2 / SIL 3 Safety Instrumented Functions |
Engineering Note: The 3624 is designed for 24 VDC supervised output circuits. Always verify the field load current, external power supply, and termination panel wiring before replacing the module. A field wiring fault frequently produces the same diagnostic indications as a failed output channel.
Application Scenarios & The “Trench” Experience
When a shutdown valve refuses to operate, everyone looks at the controller first.
One offshore platform experienced repeated output diagnostics during proof testing. The maintenance team ordered a replacement output module before checking the field circuit. After installation, the same fault immediately returned.
The actual problem?
A solenoid coil had partially shorted internally once it reached operating temperature. The original 3624 had correctly detected the abnormal load from the beginning.
That’s an expensive lesson many engineers only learn once.
Typical Applications
Oil & Gas — Emergency Shutdown (ESD) Systems — Controls shutdown valves, emergency isolation valves, and trip relays.
Power Generation — Turbine Protection — Operates hydraulic trip solenoids and generator breaker trip circuits.
Refineries — Burner Management Systems (BMS) — Controls fuel shutoff valves, ignition relays, and combustion permissives.
Chemical Plants — Reactor Protection — Operates emergency vent valves and process isolation equipment.
Pipeline Compressor Stations — Compressor Shutdown Systems — Controls emergency shutdown valves and alarm outputs.
Field Replacement Example
During scheduled maintenance at a refinery, several output channels reported intermittent open-load diagnostics. Engineers first inspected the termination panel and measured field current under load. Two damaged terminal screws were replaced before installing a verified spare 3624. After commissioning, all diagnostics cleared and the original module was later confirmed to be fully operational. The actual failure was mechanical rather than electronic, preventing an unnecessary spare-part consumption.
- 3624
- 3624
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Tricon racks whenever compatible hardware is available.
1. Inbound Inspection
- Verify Schneider Electric identification labels
- Inspect PCB assemblies and connector fingers
- Check for corrosion, contamination, and overheating
- Confirm hardware revision and serial identification
2. Live Rig Testing
- Install into a compatible Tricon chassis
- Verify successful initialization
- Exercise all 32 output channels
- Confirm processor communication
- Verify PASS, ACTIVE, and FAULT indicators
3. Electrical Parameter Checks
- Output voltage verification
- Current switching test
- Short-circuit protection verification
- Connector continuity inspection
4. Hardware Verification
- Record hardware revision
- Verify compatibility with Tricon controller generation
- Confirm module identification and diagnostics
5. Final QC & Anti-static Packaging
- Final functional inspection
- Anti-static moisture-barrier packaging
- Industrial-grade protective cushioning
- Serialized inventory tracking
- 12-month warranty documentation
The Veteran’s Tech Trap Guide
⚠️ Don’t Replace the Module Until You’ve Measured the Load
The controller only knows the electrical behavior of the output circuit. A failed solenoid coil, damaged relay, or loose terminal can generate the same diagnostic alarm as a defective module.
⚠️ Verify the External 24 VDC Supply
An unstable field power supply causes intermittent output alarms that appear random during startup. Measure voltage while the output is carrying its normal operating load.
❗Inspect the Termination Panel
Loose terminal screws, corrosion, or damaged wiring are responsible for a surprising number of “module failures.” Always inspect the termination assembly before opening a spare-parts cabinet.
⚠️ Follow Online Replacement Procedures
The 3624 supports online replacement within Tricon’s fault-tolerant architecture. Even so, removing a module temporarily reduces system redundancy. Coordinate the work with operations, follow the plant’s Management of Change (MOC) process, and complete post-replacement functional testing before declaring the system available.
Frequently Asked Questions (FAQ)
Q1. What is the Triconex 3624 used for?
The 3624 is a 32-channel supervised digital output module used in Tricon Safety Instrumented Systems to control shutdown valves, relays, contactors, annunciators, and other discrete field devices in SIL-rated applications.
Q2. How many outputs does the module support?
The module provides 32 supervised 24 VDC digital output channels with continuous diagnostic monitoring.
Q3. Can the 3624 be replaced while the controller remains online?
Yes. The Tricon platform supports online module replacement when performed according to Schneider Electric maintenance procedures. Redundancy is temporarily reduced during replacement, so the work should follow approved plant maintenance practices.
Q4. What faults can the module detect?
The 3624 continuously monitors output circuits for:
- Open-load conditions
- Short circuits
- Loss of field power
- Output driver faults
- Internal diagnostic failures
This information helps maintenance personnel distinguish field wiring problems from electronic failures.
Q5. Why is surplus inventory less expensive than purchasing directly from the OEM?
Most available inventory originates from plant modernization projects, canceled system expansions, or strategic spare-part programs. Lower pricing reflects the procurement source rather than reduced operating capability.
Q6. Is every module tested before shipment?
Yes. Every module undergoes visual inspection, power-up verification, output switching tests, communication verification, diagnostic testing, connector inspection, and final quality control before anti-static packaging.
Q7. What should I verify before ordering?
Before purchasing, confirm:
- Part number (3624)
- Tricon controller generation
- Hardware revision
- Backplane compatibility
- Field voltage (24 VDC)
- Termination panel type
- Existing system firmware revision
Veteran’s advice: Output modules rarely fail without leaving evidence. Before replacing the 3624, review the controller diagnostics, measure field current under load, inspect the termination panel, and verify the health of the external 24 VDC supply. In our field experience, those checks solve more problems than swapping hardware.
