Description
Core Product Summary
The Toshiba EX404MCRD5, also identified by the order number EX40-4MCRD5, is an EX40 Plus programmable controller designed for industrial automation control. As a programmable logic controller (PLC), it belongs to Toshiba’s EX-series control hardware and is relevant to equipment that uses this controller family for programmed machine operations.
When identifying this part for procurement or maintenance, use the complete model designation rather than relying on the EX40 family name alone. The model suffix is important when distinguishing controller variants. Before selecting a replacement, compare the existing unit’s nameplate, terminal layout, power-input requirements, I/O configuration, and installed program requirements with the intended replacement. These checks help reduce the risk of ordering a controller that looks similar but does not match the original machine configuration.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Toshiba |
| Model number | EX40-4MCRD5 |
| Alternate model designation | EX404MCRD5 |
| Product type | Programmable logic controller (PLC) |
| Product family | EX40 Plus |
| Primary function | Programmable industrial machine control |
Engineering Selection Highlights
- Exact model identification: EX40-4MCRD5 is the principal ordering reference. Match the complete suffix against the installed controller.
- Controller family: The unit is identified as an EX40 Plus controller. Confirm the existing machine’s hardware configuration before selecting a replacement.
- Electrical requirements: Check the original unit’s power-input markings and terminal diagram before energizing replacement hardware.
- I/O configuration: Compare the physical input and output terminal arrangement with the existing installation before transferring field wiring.
- Program retention: Establish how the machine’s control program is stored and backed up before removing the existing controller.
- Programming access: Confirm the available programming equipment and communication connection for the installed EX-series configuration before commissioning.
- Procurement identification: Record the full part number, nameplate details, and physical condition of the installed unit to support accurate spare-parts selection.
System Compatibility & Integration Requirements
| Item / Dependency | Compatibility or Requirement | Practical Note |
|---|---|---|
| Controller family | Toshiba EX40 Plus | Confirm the full model number and installed hardware configuration. |
| Power connection | Must match the unit’s marked electrical requirements | Do not infer the supply voltage from the family designation alone. |
| Field I/O | Must match the installed controller’s terminal arrangement and electrical interface | Document existing wiring before disconnection. |
| Programming equipment | Must support the installed EX-series controller configuration | Check the programming interface and available program-transfer method. |
| Control program | Must be suitable for the target controller configuration | Preserve a verified backup before replacement or maintenance. |

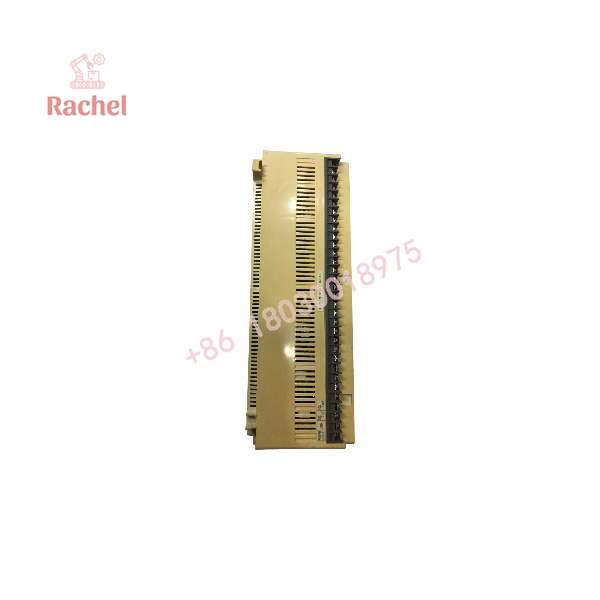

EX40-4MCRD5

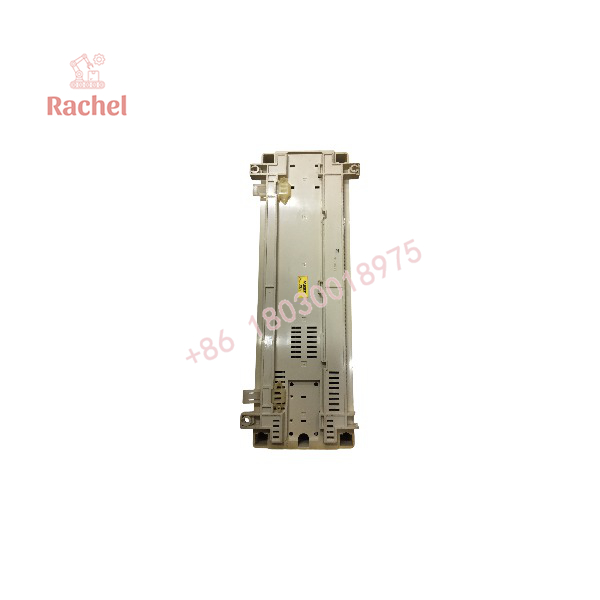

EX40-4MCRD5
Dimensions, Mounting & Connection Notes
Installation dimensions, terminal torque values, wiring clearances, and mounting specifications are not included here because exact-model data could not be sufficiently corroborated.
Before installation:
- Read the model and electrical ratings from the controller’s nameplate.
- Photograph and label field wiring before removing the existing unit.
- Identify the power, input, output, and common terminals using the applicable hardware documentation.
- Isolate the relevant power sources before changing wiring.
- Check cabinet space, mounting arrangements, and access for programming and maintenance.
- Verify the control program and I/O operation before returning the machine to service.
Do not apply power or connect field devices based solely on the EX40 family designation.
Detailed Product Overview
Product identity and control function
The EX40-4MCRD5 is listed as a Toshiba EX40 Plus programmable controller. Its principal purpose is programmable machine control, making correct model identification important when maintaining equipment built around the EX40 Plus platform.
A PLC’s function is determined by its hardware capabilities and the control program loaded into it. The controller’s role in an existing machine therefore cannot be established from the model number alone; the installed program and field wiring also determine how it operates within the overall system.
Replacement and integration considerations
Replacing an existing controller involves more than matching the manufacturer’s name. The complete part number must correspond to the intended hardware, while the power connection, I/O arrangement, and programming method must suit the installation.
Before removing an installed unit, maintenance personnel should document its terminal connections and preserve the control program wherever a valid backup method is available. The replacement should then be checked against the machine’s existing configuration before power is restored.
Particular care is required when working with legacy PLC hardware. A similar model designation does not, by itself, establish electrical equivalence or programming compatibility. Differences in controller variants can affect wiring, connected devices, and commissioning procedures.
Procurement and maintenance
For spare-parts purchasing, record the complete EX40-4MCRD5 designation and compare it with the physical nameplate of the installed controller. Include clear photographs of the front panel, terminal markings, and any supplementary identification labels in the purchasing record.
For maintenance planning, retain the control program, wiring documentation, and relevant configuration records together. These records help technicians assess replacement suitability and reduce uncertainty during troubleshooting.
Applications & System Role
The Toshiba EX40-4MCRD5 is identified as a programmable controller within the EX40 Plus family. Its role is to execute programmed control logic within a machine or equipment control system.
In a PLC-based control architecture, the controller coordinates programmed operations using its supported inputs, internal logic, and outputs. The actual control sequence depends on the installed program and the electrical devices connected to the controller.
For maintenance teams, the model is relevant when identifying existing Toshiba EX40 Plus hardware, documenting legacy control cabinets, and sourcing a matching controller for equipment repair. Procurement teams should use the complete part number and the original unit’s physical and electrical details to distinguish this controller from other EX-series variants.
The suitability of this model for a specific machine depends on the installed hardware configuration, I/O requirements, program compatibility, and electrical interfaces. These factors should be assessed before a replacement is approved.
Frequently Asked Questions
What is the Toshiba EX40-4MCRD5?
The Toshiba EX40-4MCRD5 is a programmable logic controller identified as part of the EX40 Plus family.
What is the alternate model designation?
The part is also written as EX404MCRD5. The hyphenated form, EX40-4MCRD5, is useful for ordering and product identification.
What does this controller do?
It is intended for programmable industrial control. The actual machine functions depend on the installed control program and connected hardware.
How do I select a replacement for the EX40-4MCRD5?
Compare the complete part number, nameplate ratings, terminal configuration, I/O requirements, and program compatibility with the existing installation before ordering.
What power supply does the EX40-4MCRD5 require?
The required supply voltage should be established from the exact unit’s nameplate and applicable hardware documentation. It should not be inferred from the EX40 Plus family designation alone.
Can I reuse the existing control program?
Program reuse depends on the controller configuration, the program’s storage and transfer method, and the availability of compatible programming equipment. Back up the existing program before beginning replacement work.
What should be checked before installation?
Check the model designation, electrical ratings, terminal arrangement, field wiring, program availability, and installation requirements. Complete the necessary functional checks before returning the equipment to operation.
