Triconex 2401 Digital Output Baseplate Trident 16-Point

Description

Product Introduction & Engineering Value

The Triconex 2401 provides the field-side interface for the Trident 3401 Digital Output Module. It is designed for direct termination of a 16-point digital-output architecture, with the standard configuration using 24 VDC field power. The 3401 module contains the triplicated output electronics; the 2401 handles the associated field connections and baseplate circuitry.

That distinction is important when ordering a replacement. A failed 3401 and a damaged 2401 are two different maintenance problems. The standard 2401 is also different from the 2401L low-current and 2402 high-voltage configurations, so the installed system architecture should be checked before substitution.

Technical Specifications

The associated 3401 Digital Output Module is specified for 16 commoned outputs. Its documented operating voltage is 15–30 VDC, with 33 VDC as the absolute maximum output voltage.

The Trident product guide lists the standard 2401 kit as 3000674-030 + 2921 + 2900 + 2901.

Field Application & the “Trench” Experience

A practical Trident maintenance scenario is a shutdown cabinet controlling multiple discrete actuators, solenoids, permissive relays, or other final-control devices. One output channel starts showing an unexpected field condition, but the installed 3401 module passes its internal diagnostics.

An experienced technician checks the complete output path rather than immediately replacing the electronic module. That means inspecting the 2401 baseplate, interconnect assembly, terminal connections, field-power sources, and external wiring. A damaged termination or interface connection can produce symptoms that look like an I/O-module failure.

Typical applications include:

• Emergency shutdown solenoid command circuits
• Compressor package permissive and trip outputs
• Process isolation-valve command interfaces
• Burner-management discrete control outputs

The 2401 is specifically documented as a Digital Output Baseplate for the 16-point 3401 architecture.

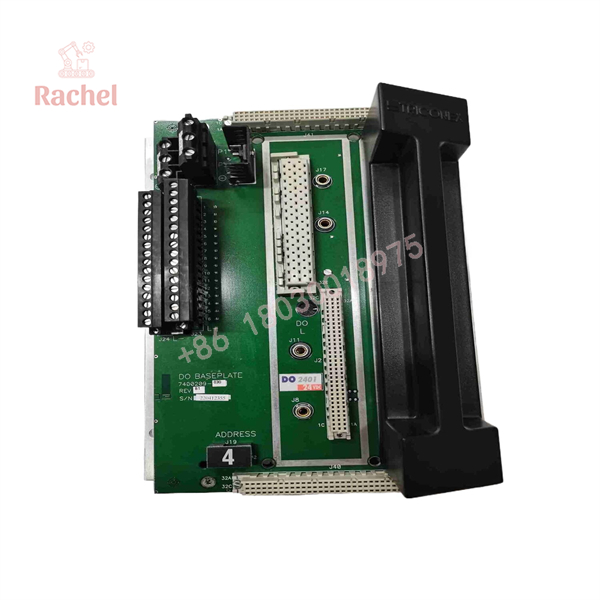

2401

Transparency SOP: QA & Testing

For New Surplus or Refurbished 2401 inventory, inspection should focus on the baseplate assembly and field interface.

Receiving QA

1. Confirm the model marking is Triconex 2401.
2. Where applicable, verify baseplate P/N 3000674-030.
3. Inspect terminal blocks, connectors, mounting points, and covers.
4. Check for corrosion, contamination, cracked components, or damaged traces.
5. Verify the supplied interconnect assembly is the expected 2921.
6. Check continuity of applicable field-power and output paths.
7. Confirm compatibility with the installed 3401 Digital Output Module.
8. Record the actual condition and test status before shipment.

A complete standard kit is documented as four components: I/O baseplate 3000674-030, interconnect 2921, slot cover 2900, and terminal cover 2901.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing 2401 with 3401

This is the first thing to verify:

2401 = Digital Output Baseplate
3401 = Digital Output Module

The 3401 performs the output processing and voting functions; the 2401 provides the associated field-interface hardware.

⚠️ Trap #2 — Assuming every 2401-family baseplate is equivalent

They are not. Triconex documentation distinguishes the standard 2401, low-current 2401L, high-current 2401H, and high-voltage 2402 configurations.

PRO TIP: Before ordering, record the complete model number from the installed baseplate and compare the field voltage, output type, termination arrangement, and associated 3401-family module.

⚠️ Trap #3 — Ignoring the field-power path

The Trident 2401 architecture includes field-power connections and voltage-loopback detection associated with the digital-output circuitry. A loose terminal, incorrect field-power connection, or damaged interconnect can create output faults that are easily mistaken for a failed 3401.

Dynamic FAQ

Q: What is the Triconex 2401?
The 2401 is a Trident Digital Output Baseplate Kit designed for the 16-point 3401 Digital Output Module.

Q: How many outputs does the 2401 support?
The standard configuration supports 16 digital output points through the associated 3401 module.

Q: What is the baseplate part number?
The standard Trident product guide identifies the 2401 I/O baseplate as 3000674-030. The complete kit also includes the 2921 interconnect, 2900 slot cover, and 2901 terminal cover.

Q: Is 2401 the same as 2401L?
No. 2401L is the low-current digital-output baseplate configuration. The standard 2401 and 2401L should not be treated as interchangeable without checking the installed output requirements.

Q: Is 2401 the same as 2402?
No. 2402 is the high-voltage digital-output baseplate configuration and uses an external termination/relay-output arrangement.

Q: What should I verify when purchasing New Surplus Triconex 2401?
Confirm the exact 2401 model, baseplate P/N 3000674-030, included kit components, physical condition, compatibility with the 3401 module, and supplier warranty. Also confirm that the stock is genuinely unused if it is being sold as New Surplus, rather than previously installed or refurbished inventory.
