Product Introduction & Engineering Value
When you are maintaining a fault-tolerant Trident safety system, field cable strain and thermal cycling can weaken interconnect backplanes over time. The Triconex 2301 (also cataloged as DI2301 or 7400208-020) serves as the primary DIN-rail mounted baseplate for landing 24 VDC digital input channels directly into the Triple Modular Redundant (TMR) architecture.
Rather than running active active-silicon logic on the baseplate itself, Schneider Electric designed the 2301 as a ruggedized, passive interconnect system. It routes field discrete signals across three totally isolated internal buses to the active processing modules, enabling maintenance personnel to unlatch and replace powered input cards without disturbing permanent cabinet field wiring or risking spurious process trips.
Technical Specifications
- Operating System Voltage: 24 VDC Nominal (18 to 30 VDC field power loop range)
- Channel Architecture: 3 Isolated Internal Signal Channels (Dedicated to Triple Modular Redundant Triple-Processor routing)
- Isolation Rating: 1500 Vrms channel-to-system isolation barrier
- Field Connection Terminals: Screw-terminal or crimp-connector blocks accepting 18 to 22 AWG field wiring
- Mounting Configuration: Standard 35 mm DIN-rail panel mount with integrated grounding clips
- Interconnect Interface: Heavy-duty multi-pin backplane connector for 2921 I/O interconnect assemblies
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Operating Humidity: 5% to 95% relative humidity (non-condensing)
- Safety & Regulatory Certifications: TÜV Certified for SIL 2 and SIL 3 Applications, IEC 61508, CSA Class I Div 2
Field Application & The “Trench” Experience
The Trench Story
During a routine turnaround at an offshore gas processing platform, an instrument technician inadvertently stripped the terminal block threads on a digital input card during emergency shut-down (ESD) switch loop checks. With sea salt air causing oxidation on adjacent terminal tracks, the platform needed a clean replacement before restoring hydrocarbon pressure.
The I&C team pulled a New Surplus 2301 baseplate from local stock. Because the 2301 baseplate unlatches via quick-release DIN retention tabs, the crew swapped out the physical mounting plate, transferred the keyed interconnect cables, and snapped the active TMR input cards back into position. The entire mechanical swap took under 20 minutes, restoring full SIL 3 loop integrity before the platform’s primary compressor restart sequence.
Specific Field Applications
- Refining Emergency Shutdown (ESD) Systems: Interconnecting high-consequence burner management emergency stop switches.
- Offshore Platform Fire & Gas Loops: Landing field contact points for flame detectors and deluge activation switches.
- Chemical Plant Interlock Circuits: Transporting field switch states into triple-redundant logic controllers for toxic gas containment valves.

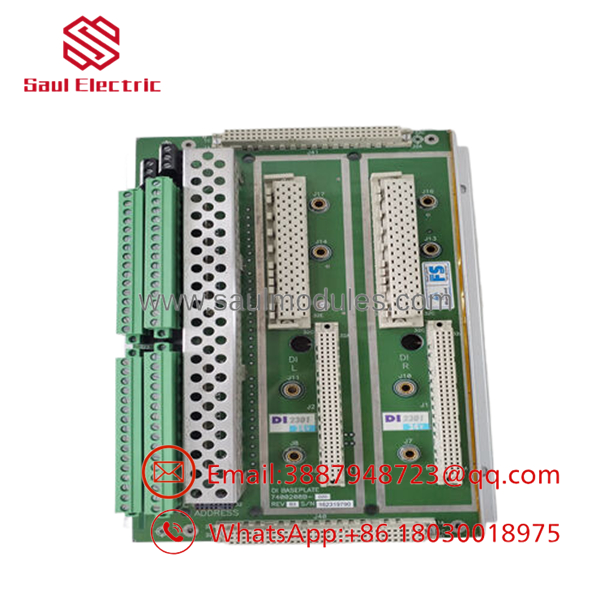

- 2301

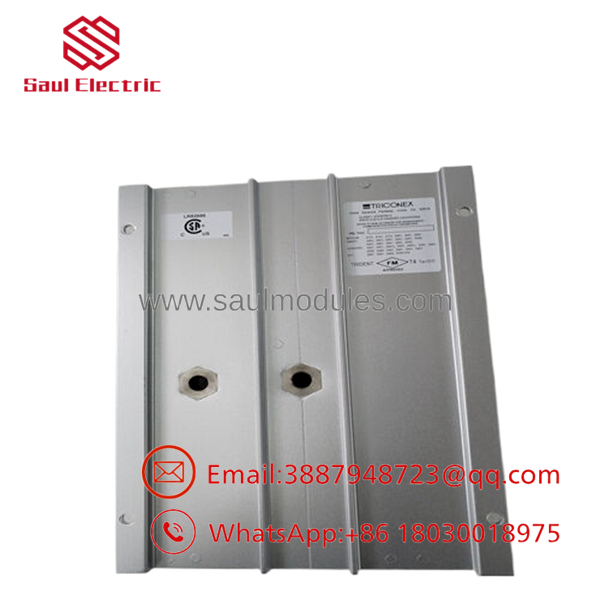

- 2301
Transparency SOP: QA & Testing
- Mechanical & Pin Inspection: Examine all backplane multi-pin card sockets under magnification for pin alignment, oxidation, or bent contacts.
- Dielectric Isolation Barrier Check: Conduct 1500 Vrms high-pot testing between field wiring terminal points and logic ground planes to ensure zero short-circuit leakage.
- Trace Continuity & Impedance Verification: Map circuit paths across all channels to confirm trace resistance remains under 0.2 Ohms across the baseplate PCB.
- Card Seating & Latch Resistance Test: Exercise physical card alignment guide rails using standard Trident DI cards to verify mechanical retention latch force.
- Thermal Bake & Vibration Inspection: Cycle the baseplate in a 65°C chamber while conducting continuity checks to eliminate latent thermal micro-fractures in solder joints.
The Veteran’s Tech Trap Guide
- ⚠️ Mismatched Part Numbers (DI2301 vs. High-Voltage Variants): Do not confuse the standard 24 VDC 2301 baseplate with high-voltage variants (such as the 2302 series). Seating a 120/230 VAC input module onto a 24 VDC 2301 baseplate can bridge high voltage into low-voltage auxiliary power rails!
- PRO TIP: Shield Termination Grounds: Always verify that field cable shields land on the designated system ground terminals on the 2301 baseplate rather than floating loosely in the wire duct. Floating shields act as antennas for variable-frequency drive (VFD) noise, causing erratic input channel status flickering.
- ⚠️ Backplane Interconnect Cable Alignment: When linking adjacent baseplates using the 2921 I/O interconnect assembly, ensure the ribbon connector snaps completely home into both slots. A partially seated interconnect plug causes communication dropouts on channel B or C, degrading the controller from 3-2-0 to 2-1-0 fault tolerance mode.
Dynamic FAQ
Q: Is the Triconex 2301 baseplate suitable for SIL 3 safety loops?
A: Yes. When paired with certified Trident active I/O modules and main processors, the 2301 baseplate forms part of a TÜV-certified safety instrumented system suitable for SIL 2 and SIL 3 applications under IEC 61508.
Q: Can active input modules be swapped while the 2301 baseplate is powered?
A: Yes. The 2301 baseplate features a passive backplane design that supports hot-swapping (live insertion and removal) of active digital input cards without disrupting system power or field wiring connections.
Q: What terminal wire sizes are accepted on the field connection blocks?
A: The terminal blocks on the 2301 baseplate accept standard industrial field wiring ranging from 18 AWG down to 22 AWG solid or stranded wire.
Q: Does the baseplate contain any active microprocessors or firmware?
A: No. The 2301 is a passive baseplate assembly providing signal routing, power distribution, and mechanical mounting. All processing firmware resides on the plug-in active DI modules and Main Processors.
Q: What warranty covers New Surplus Triconex 2301 baseplates?
A: All Triconex 2301 baseplates supplied undergo rigorous physical and electrical pin continuity inspections and are backed by a standard 1-year replacement warranty.
