Description
Product Introduction & Engineering Value
When upgrading large-scale safety instrumented systems, marshalling space is often tighter than budget allowances. The Triconex 3704E eliminates cabinet expansion costs by doubling the channel density of standard 32-point input cards—packing 64 high-precision 0–10 VDC analog input channels into a single Tricon slot.
Each of the 3704E’s 64 channels is sampled simultaneously by three independent TMR processing legs. Integrated Force-to-Value Diagnostics (FVD) continuously verify the health of onboard analog-to-digital converters (ADCs) without interrupting live signals. This enables real-time sensor monitoring across dense Safety Instrumented Functions (SIF) while ensuring zero single-point failure risks in your ESD matrix.
Technical Specifications
- Input Channels: 64 differential or single-ended points (grouped common reference)
- Nominal Voltage Range: 0 to +10 VDC (Operational range: -0.5 to +11 VDC)
- Analog-to-Digital Resolution: 12 bits
- Absolute Accuracy: ±0.15% of full scale (0 to 10 VDC) from 0°C to 60°C
- Scan Update Rate: <10 ms for all 64 channels
- Input Impedance: >1 MΩ (voltage mode, un-terminated)
- Max Over-Voltage Protection: 33 VDC continuous without hardware damage
- Functional Isolation: 500 VDC minimum (field to backplane logic)
- Internal Power Dissipation: <7.5 W at nominal operational voltage
Field Application & The “Trench” Experience
The Trench Story
A chemical plant’s acrylic acid reactor train was undergoing a safety retrofit to add multi-zone temperature and pressure transmitter feedback. The existing control room cabinets were completely maxed out on DIN-rail slot space. By replacing legacy 32-channel analog cards with high-density Triconex 3704E modules, automation engineers doubled the system’s analog capacity without adding a single expansion chassis. During wet testing, channel 42 began reporting erratic drift; the 3704E’s onboard ADC diagnostics flagged a loose field ground shield on the ETP connector before the out-of-spec reading could trigger a false unit trip.
Specific Field Application Scenarios
- Multi-Stage Compressor Vibration & Bearing Health: Monitoring high-density 0–10 VDC buffered outputs from machinery protection cards (e.g., Bently Nevada systems).
- Turbine Skin & Bearing Temperature Matrices: Processing high-density voltage signals from distributed signal conditioners on large gas turbine frames.
- Chemical Reactor Multi-Point Pressure Safety: Continuous TMR monitoring of fast-response pressure transmitters across high-pressure synthesis loops.

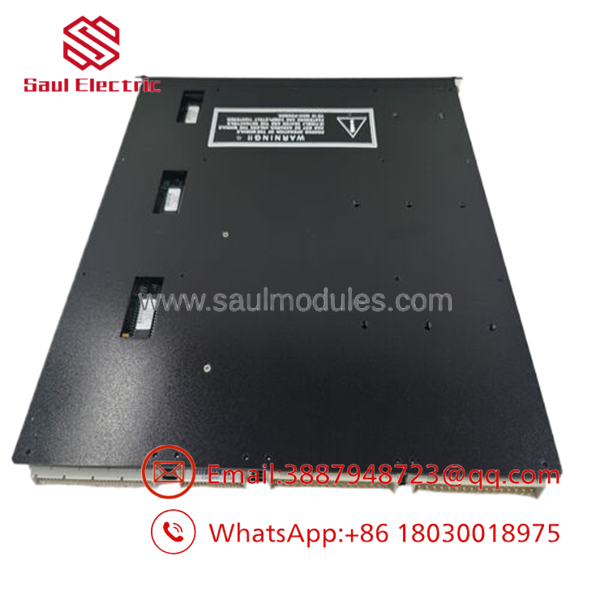

- 3704E

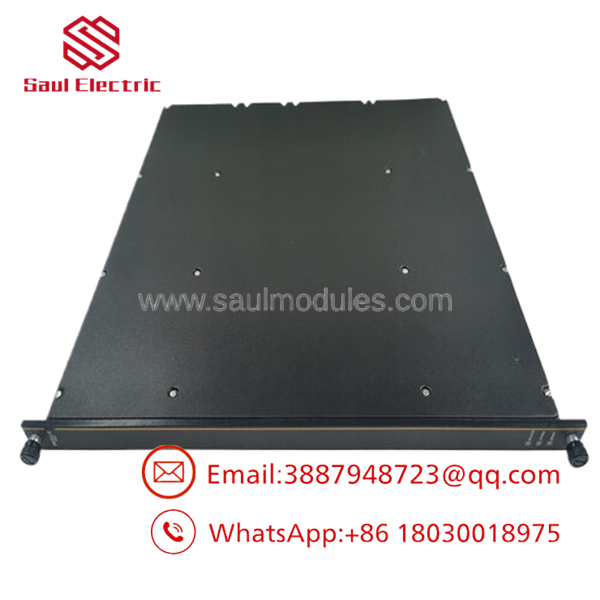

- 3704E
Transparency SOP: QA & Testing
- Step 1: Edge Connector & Mechanical Audit
We visually inspect the high-density edge connectors, check pin alignment, verify PCB conformal coatings, and test card locking levers.
- Step 2: Live Chassis & TriBus Synchronization
The 3704E is inserted into an active Tricon chassis system to confirm bus address decoding, firmware compatibility, and triple-rail power health.
- Step 3: 64-Channel Multi-Point Voltage Injection
Using precision signal generation across all 64 channels simultaneously, we sweep voltages from 0.00 VDC to 10.00 VDC. We verify 12-bit conversion linearity and ensure accuracy stays within the ±0.15% specification.
- Step 4: Thermal Burn-in & FVD Diagnostic Execution
The card undergoes an extended thermal chamber run while executing Force-to-Value Diagnostic routines to confirm zero false hardware alerts or ADC channel drift under load.
The Veteran’s Tech Trap Guide
⚠️ Current vs. Voltage Baseplate Termination: The 3704E is natively a 0–10 VDC input card. If your field transmitters output standard 4–20 mA current signals, you must use an External Termination Panel (ETP) equipped with precision 250 Ω dropped resistors. Connecting a 4–20 mA loop directly to an un-terminated 3704E baseplate will cause input voltage to saturate at 33 VDC or rail the channel high instantly.
PRO TIP: Managing High-Density Connector Stress Because the 3704E interfaces with 64 channels through a high-density multi-conductor cable assembly, connector strain is a common point of failure. Always secure external interface cables to cabinet wiring trays before plugging them into the ETP. Cable weight hanging off the connector can cause micro-cracks in trace soldering or intermittent pin connections on higher channel numbers (channels 49–64).
⚠️ Ground Offset Across 64 Channels: The 3704E uses grouped commons to achieve high density. If field transmitters are powered from different remote 24 VDC power supplies without galvanic isolation, ground potential differences will cause cross-channel voltage offsets. Always use isolated transmitters or verify single-point grounding across field loops.
Dynamic FAQ
Q: Can I use the Triconex 3704E for 4–20 mA current loops?
A: Yes, but only with the appropriate External Termination Panel (ETP) containing built-in 250 Ω precision conversion resistors. The resistors convert the 4–20 mA current signal into a 1–5 VDC input range readable by the 3704E.
Q: What is the primary difference between the 3504E and the 3704E?
A: The 3504E is a 64-channel Digital (Discrete 24 VDC) Input module, whereas the 3704E is a 64-channel Analog (0–10 VDC) Input module.
Q: Is the 3704E hot-swappable in a running Tricon system?
A: Yes. The 3704E supports full online hot-swapping. Inserting a new module into a spare slot allows the Tricon Main Processors to run background health checks and synchronize input tables before taking over active scanning.
Q: What warranty and testing documentation do you provide with this module?
A: All New Surplus and reconditioned Triconex 3704E modules carry a full 1-year functional replacement warranty and ship with complete multi-point bench test calibration reports.
Q: How does the 3704E handle a single ADC failure on the card?
A: Because the 3704E incorporates triple-redundant sampling paths, if an internal ADC on one leg fails, the other two healthy processor legs out-vote the faulted channel. The system flags a diagnostic alarm in TriStation 1131, but continuous, safe process monitoring remains active.
