Triconex 3009 MP3009 Trident Main Processor Module

Description

Product Introduction & Engineering Value

When running high-consequence process units like ethylene crackers or offshore emergency shutdown (ESD) loops, you cannot afford a single-point CPU failure. The Triconex 3009 (MP3009) is the foundational main processor card designed for the Trident architecture. Operating in a Triple Modular Redundant (TMR) set of three parallel cards, it executes application programs deterministically while cross-checking internal states across an isolated TriBus inter-processor network.

Unlike standard industrial PLCs where a memory fault or CPU lockup drops the entire rack, three 3009 processors continuously vote on every single scan cycle. If one card suffers a hardware fault or memory corruption, the remaining two processors instantly isolate the degraded card without interrupting execution—allowing site engineers to swap out the faulted 3009 module on a live, fully pressurized plant floor.

Technical Specifications

Field Application & The “Trench” Experience

The Trench Story

A chemical processing plant in Louisiana experienced a sudden low-voltage battery failure alarm on Channel B’s main processor card in their primary ESD rack. With a storm front moving in and the plant running at 105% throughput capacity, shutting down the safety system for a CPU swap would have cost over $350,000 in flared feedstocks.

An I&C engineer grabbed a pre-tested, surplus Triconex 3009 module from clean inventory. After verifying the card’s firmware matched Channels A and C, the engineer unlocked the module retention lever, pulled the degraded MP3009 from Slot B, and inserted the new 3009. The primary processors instantly detected the new card over the TriBus, resynchronized the memory state in under two seconds, and returned the Trident chassis to full 3-2-0 fault tolerance without dropping a single safety loop.

Specific Field Applications

• Refinery Burner Management Systems (BMS): Executing fast-acting flame safety shutoff logic under NFPA 85 standards.
• Offshore Platform Emergency Shutdown (ESD): High-reliability logic processing for deluge activation and riser isolation valves.
• Turbomachinery Control Systems (TCS): Integrated speed governor logic and overspeed trip coordination for large steam turbines.

3009

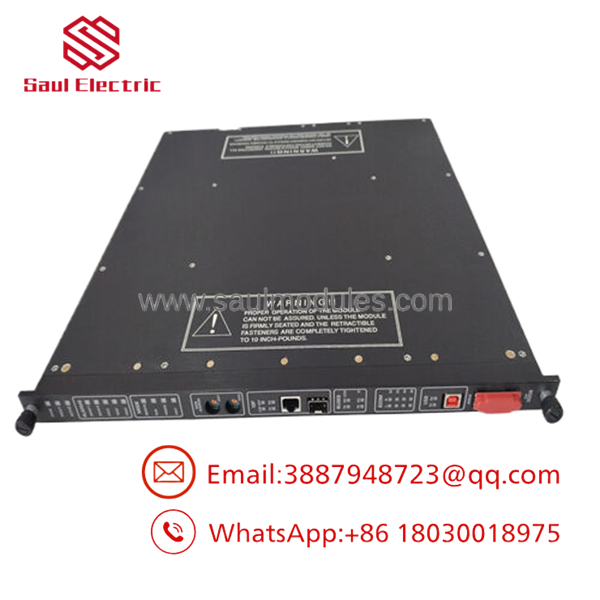

3009

Transparency SOP: QA & Testing

1.Physical & Gold Pin Audit ──► Inspect multi-pin backplane connectors and faceplate retention latches under high magnification.

2.Power-Up & Rail Isolation ──► Seat module in Trident test chassis; verify power consumption and backplane voltage rails stay within ±1% limits.

3.TriBus Diagnostics Run ──► Execute internal TriBus cross-talk tests to confirm memory lockstep synchronization across 3-channel test racks.

4. Serial & Ethernet Test ──► Poll Modbus TCP/IP registers and cycle TriStation 1131 upload/download tasks over communication ports.

5.Thermal Soak & Battery ──► Test internal SRAM retention battery voltage and soak module at 60°C for 24 hours under active program execution.

The Veteran’s Tech Trap Guide

• ⚠️ Firmware Version Mismatch: Never insert a 3009 module running a different major firmware revision into an active system! If Channel A and C run firmware version 2.x and you insert a 3009 with version 3.x into Channel B, the system will refuse to synchronize the replacement card and will log a permanent “MP Mismatch Fault.”
• PRO TIP: Keyswitch Lock State: Keep the physical front-panel keyswitch turned to RUN mode during normal plant operation. Leaving the keyswitch in REMOTE or PROGRAM leaves the safety controller vulnerable to accidental logic updates or forced register changes over network serial links.
• ⚠️ Coin Battery Expiration: The internal SRAM memory battery preserves the logic application program when main chassis power is removed. Before storing a 3009 processor in warehouse inventory, check the internal battery date code—a depleted battery will cause the CPU to lose its configuration state immediately upon power loss!

Dynamic FAQ

Q: How many 3009 Main Processor modules are required in a Trident chassis?

A: A standard fault-tolerant Trident system requires three 3009 MP modules operating together in the main chassis to deliver Triple Modular Redundant (TMR) 2-out-of-3 voting performance.

Q: Can a single 3009 processor card be replaced while the plant is online?

A: Yes. The 3009 MP supports hot-swapping. If one processor fails or logs a diagnostic fault, it can be removed and replaced with a new unit without interrupting power or shutting down active safety instrumented functions.

Q: What configuration software is used to program the Triconex 3009 processor?

A: Programming and diagnostic monitoring are performed using Schneider Electric’s TriStation 1131 Developer Workbench, communicating via Ethernet or serial connection to the 3009 interface ports.

Q: What does the “BAT LOW” LED indicator mean on the front panel?

A: The “BAT LOW” LED illuminates when the internal lithium coin battery that maintains SRAM memory falls below safe operating voltage. The battery should be replaced during the next maintenance window to prevent program loss during power outages.

Q: What warranty covers New Surplus Triconex 3009 main processors?

A: All Triconex 3009 processor cards supplied undergo full chassis synchronization testing and ship backed by a comprehensive 1-year replacement warranty.
