Triconex 3401 16-Channel TMR Digital Output Module

Description

Product Introduction

The Triconex 3401 (DO3401) is a 16-channel Digital Output Module developed for the Trident Safety Instrumented System. It controls field devices such as shutdown solenoids, interposing relays, contactors, annunciators, and trip circuits. Each module contains three fully isolated electronic channels that independently receive commands from the Main Processor before applying voted output signals to the field load.

Unlike a conventional PLC output card, the 3401 uses Triconex’s patented Quad Voter circuitry to ensure that a single internal channel fault does not produce an unsafe output state. The module also performs continuous Output Voter Diagnostics (OVD), allowing many output faults to be detected while the system remains in service. Verify compatibility with the 2401 or 2402 Digital Output Baseplate before installation.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Digital outputs usually fail at the worst possible moment.

One refinery scheduled a burner startup after a turnaround. Every permissive checked out, but one fuel shutoff valve refused to energize. The valve coil measured correctly. Wiring continuity was good. The relay cabinet looked normal.

The problem wasn’t in the field.

The 3401 was correctly detecting an internal output fault and refusing to drive the circuit. That’s exactly what a safety system is supposed to do.

Typical Applications

Oil & Gas — Emergency Shutdown Systems — Controls shutdown valves, trip relays, and isolation solenoids.

Power Generation — Turbine Protection — Energizes trip circuits and emergency shutdown devices.

Refineries — Burner Management Systems — Controls ignition relays, fuel shutoff valves, and combustion permissives.

Chemical Plants — Reactor Protection — Operates safety shutdown valves during abnormal process conditions.

LNG Facilities — Compressor Protection — Drives emergency isolation valves and alarm outputs.

Field Replacement Example

A petrochemical plant reported repeated output diagnostics on one shutdown valve channel during proof testing. Field wiring and the solenoid coil both passed insulation and continuity tests. Engineers installed a tested 3401, restored normal operation, and completed full loop testing without replacing any field devices. The outage was limited to the planned maintenance window instead of extending into production.

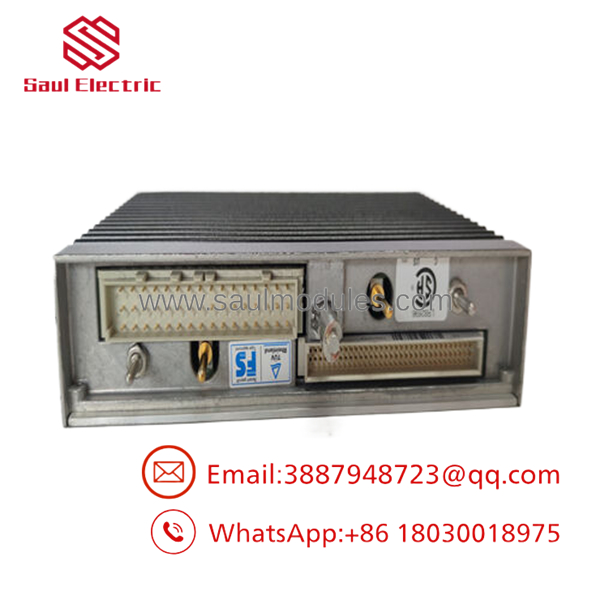

3401

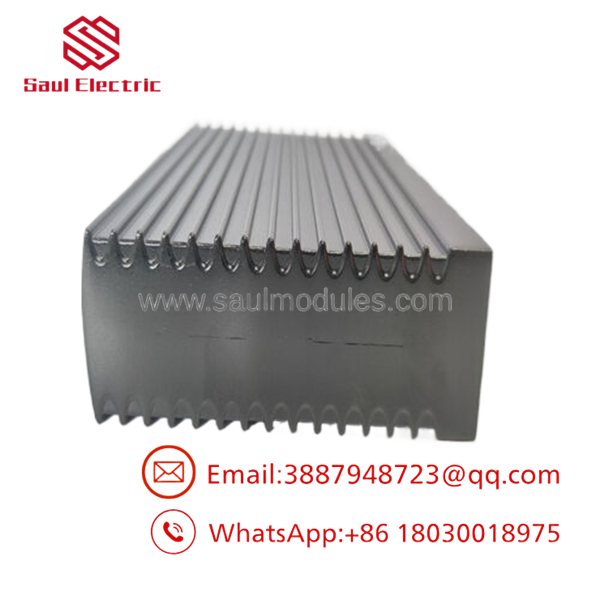

3401

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Trident hardware whenever compatible equipment is available.

1. Inbound Inspection

• Verify Schneider Electric identification labels
• Inspect PCB and conformal coating
• Check connector fingers for wear
• Inspect for overheating or unauthorized repairs

2. Live Rig Testing

• Install in a compatible Trident chassis
• Verify PASS, FAULT, ACTIVE, and PWR/LOAD indicators
• Simulate output commands
• Verify Quad Voter operation
• Confirm communication with the Main Processor

3. Electrical Parameter Checks

• Output voltage verification
• Load switching test
• Current limiting verification
• Connector continuity inspection

4. Hardware Verification

• Record hardware revision
• Verify compatibility with installed firmware
• Confirm correct output baseplate configuration

5. Final QC & Anti-static Packaging

• Functional inspection
• Anti-static moisture-barrier packaging
• Industrial shock-resistant cushioning
• Serialized inventory tracking
• 12-month warranty documentation

The Veteran’s Tech Trap Guide

⚠️ Don’t Bypass an Output Diagnostic

If the 3401 reports an Output Voter Diagnostic fault, investigate it. Jumping around a failed channel may temporarily restore operation, but it also defeats the purpose of a SIL-rated safety system.

⚠️ Verify the Baseplate Before Replacing the Module

The 3401 works with the 2401 or 2402 Digital Output Baseplate. Loose terminals or damaged connectors can mimic a failed output module.

❗Watch the Load Current

Although the outputs include current limiting, repeatedly driving overloaded solenoids or shorted field wiring will eventually trigger diagnostics. Check the field device before condemning the module.

⚠️ Confirm the Output Type

The 3401 provides 16 commoned outputs. Other Trident digital output modules use different isolation methods and wiring arrangements. Don’t assume they are interchangeable simply because the connectors look identical.

Frequently Asked Questions (FAQ)

Q1. Is the Triconex 3401 a standard PLC output module?

No. The 3401 is a Triple Modular Redundant Digital Output Module designed for safety applications. Every output is controlled through voted circuitry and continuous diagnostics rather than direct transistor switching.

Q2. How many outputs does the module provide?

The 3401 provides 16 commoned digital output channels operating from a 24 VDC nominal field supply.

Q3. Which baseplates are compatible?

The module is designed for use with the 2401 Direct-Termination Baseplate or the 2402 Current-Limited Baseplate, depending on the application.

Q4. Can the module be replaced while the controller remains online?

The Trident architecture supports online maintenance capabilities, but replacement should only be performed according to Schneider Electric procedures and the site’s Management of Change (MOC) requirements. During replacement, output redundancy is temporarily reduced.

Q5. Why is this module more expensive than a standard PLC output card?

The 3401 contains three independent output channels, Quad Voter hardware, continuous diagnostics, and fault-tolerant circuitry required for SIL-rated safety applications. That architecture is substantially different from a conventional PLC output module.

Q6. Is every module tested before shipment?

Yes. Every unit undergoes visual inspection, power-up verification, output switching tests, diagnostic verification, connector inspection, and final quality control before anti-static packaging.

Q7. What should I verify before ordering?

Confirm the following:

• Part number (3401 / DO3401)
• Trident controller generation
• Compatible baseplate (2401 or 2402)
• Hardware revision
• Field voltage
• Existing controller configuration

Veteran’s advice: When a safety output refuses to energize, resist the urge to blame the module immediately. Measure the field voltage under load, inspect the output wiring, verify the baseplate terminals, and review the OVD diagnostics. In many shutdown investigations, the module is correctly reporting a field fault rather than creating one.
