Description
Product Introduction & Engineering Value
When maintaining critical turbine overspeed and compressor speed-monitoring loops on a Trident platform, field signal integrity is paramount. The Triconex 2381 (PI2381) baseplate provides the ruggedized physical and electrical foundation required to land high-frequency pulse signals directly from proximity probes and magnetic pickups into the system’s Triple Modular Redundant (TMR) architecture.
Engineered as a passive backplane assembly, the 2381 routes pulse input frequencies up to 50 kHz across three isolated channels without introducing signal distortion or ground capacitance. This design allows site technicians to hot-swap active 3381 Pulse Input Cards on live rotating equipment without disturbing permanent cabinet field wiring or dropping turbomachinery safety trips.
Technical Specifications
- Supported Input Types: Active and Passive Speed Sensors (Magnetic Pickups, Eddy Current Proximity Probes, Zero-Velocity Sensors)
- Frequency Range: 1 Hz to 50 kHz high-resolution pulse counting
- Channel Capacity: 6 Pulse Input Channels per baseplate assembly
- Isolation Rating: 1500 Vrms minimum channel-to-bus galvanic isolation
- Field Terminal Type: Removable Screw-Terminal Blocks or Crimp Header Blocks (Accepting 18–22 AWG wire)
- Mounting Configuration: Standard 35 mm DIN-rail mounting with heavy-duty chassis ground clips
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Operating Humidity: 5% to 95% non-condensing relative humidity
- System Compliance: TÜV Certified for SIL 2 and SIL 3 Safety Instrumented Systems, IEC 61508, CSA Class I Div 2

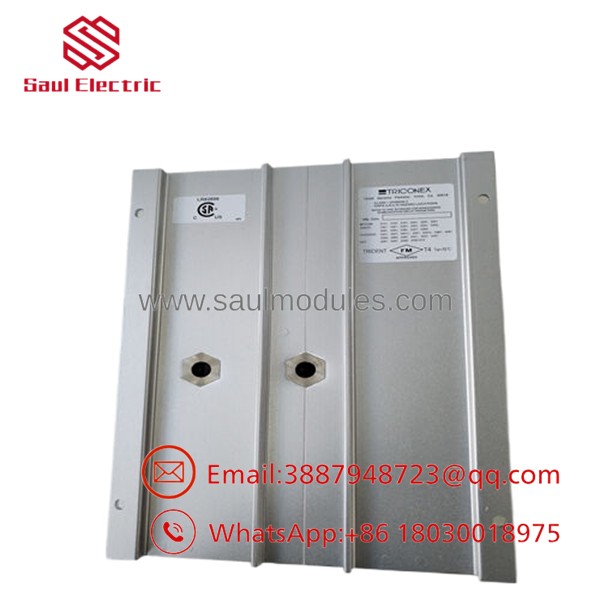

- 2381

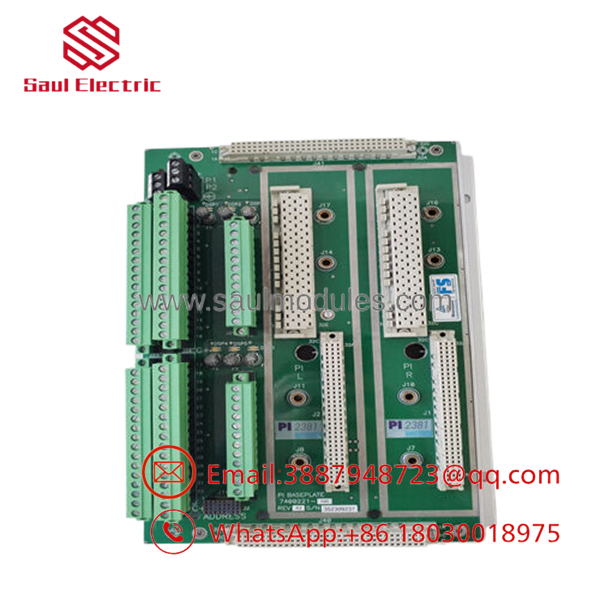

- 2381
Field Application & The “Trench” Experience
The Trench Story
A Gulf Coast refinery experienced intermittent speed-sensing dropouts on a 15,000 RPM synthesis gas compressor train during high-ambient-temperature afternoons. Diagnostic logs revealed high trace resistance on one of the passive backplane channels on the original pulse baseplate due to severe thermal expansion and marine air corrosion on the terminal headers.
The instrument crew pulled a pre-tested 2381 baseplate from off-site emergency stock. Thanks to Trident’s modular baseplate footprint, technicians unlatched the top 3381 input module, released the DIN-rail retention springs, transferred the keyed signal harnesses, and snapped the replacement 2381 baseplate into position. The entire swap was completed in under 15 minutes while the compressor remained online at full throughput under 2-out-of-3 voting coverage.
Specific Field Applications
- Turbine Overspeed Protection: Interconnecting high-frequency speed signals from magnetic pickups on steam and gas turbine shafts.
- Positive Displacement Flow Metering: Landing high-resolution pulse train feedback from custody transfer flow meters in pipeline metering skids.
- Reciprocating Compressor Rod Speed: Transporting proximity probe impulse signals into Trident logic controllers for vibration and speed interlock shutdown loops.
Transparency SOP: QA & Testing
- Connector & Terminal Inspection: Perform a microscopic audit on all 96-pin DIN card sockets and terminal blocks to ensure zero bent pins, pin oxidation, or housing cracks.
- Dielectric Isolation Barrier Test: Apply 1500 Vrms across field sensor terminal blocks and internal system bus channels to confirm complete galvanic isolation.
- High-Frequency Trace Continuity: Drive 50 kHz square waves through all 6 signal paths using an oscilloscope to verify zero waveform attenuation or cross-channel crosstalk.
- Mechanical Seating & Latch Test: Exercise physical card-alignment rails with live 3381 Pulse Input cards to confirm solid latch engagement and ejection force.
- Thermal Bake-In Cycle: Subject the baseplate to a 65°C thermal soak for 12 hours while monitoring signal continuity to rule out latent board trace stress fractures.
The Veteran’s Tech Trap Guide
- ⚠️ Sensor Power Jumper Settings: Do not apply active proximity probe power without verifying the sensor type wiring on the 2381 terminal block! Connecting 24 VDC excitation power to a passive 2-wire Magnetic Pickup (MPU) will fry the pickup coil and blind that speed channel instantly.
- PRO TIP: Twisted Shielded Pair Termination: Always land speed sensor cable shields at the dedicated ground bus terminals on the 2381 baseplate only. Never ground the shield at the sensor end in the field—double-grounding creates loop currents that introduce false frequency harmonics into the speed counter logic.
- ⚠️ Interconnect Ribbon Cable Seating: When linking the 2381 to adjacent Trident baseplates using the 2921 interconnect assembly, verify both locking levers click completely down. A loose ribbon connection degrades the TMR bus architecture down to dual or single channel mode, triggering system health alarms on the main processors.
Dynamic FAQ
Q: Is the Triconex 2381 baseplate compatible with non-pulse I/O modules?
A: No. The 2381 (PI2381) is specifically keyed and wired for Triconex Trident Pulse Input modules (such as the 3381). Attempting to insert Analog or Digital I/O cards into a 2381 baseplate is prevented by physical card-keying guides.
Q: Can active 3381 Pulse Input cards be replaced while the 2381 baseplate is powered?
A: Yes. The 2381 baseplate utilizes a passive backplane architecture supporting full hot-swapping (live insertion and removal) of active pulse input cards without interrupting power to the rest of the chassis or dropping field signals.
Q: What is included in the complete 2381 (7400221-100) baseplate kit?
A: The full kit typically includes the PI baseplate board (3000719-100), the 2921 I/O interconnect assembly, a slot cover (2900), and terminal cover plates (2901) for clean cabinet installation.
Q: What frequency range can the 2381 baseplate handle?
A: The baseplate wiring and isolation circuits are designed to pass pulse frequencies clean from 1 Hz up to 50 kHz without signal distortion or pulse rounding.
Q: What warranty comes with New Surplus Triconex 2381 units?
A: All Triconex 2381 baseplates provided are fully bench-tested, pin-verified, and backed by a comprehensive 1-year replacement warranty.
