Product Introduction & Engineering Value
Option B in action: You know that pit in your stomach when a legacy safety system drops a channel mid-cycle and starts spitting bus errors across the rack? Replacing a main processor in a running triple-redundant architecture isn’t where you want to take risks.
The Triconex 8111 Main Processor handles high-integrity safety functions without compromising uptime. Operating as part of a three-module set in a Tricon chassis, it maintains cycle-by-cycle synchronization while executing your TriStation logic. It isolates faults internally so process trips only happen when your safety parameters actually demand one.
Technical Specifications
- Processing Engine: Dual Motorola 32-bit microprocessors per channel running parallel tasks
- System Redundancy: 2-out-of-3 (2oo3) voting architecture across three isolated channels
- Sequence of Events (SOE) Resolution: 1 millisecond timestamp accuracy
- Power Dissipation: 10 Watts maximum per module
- Diagnostic Coverage: Exceeds 99.9% for internal hardware failures
- Memory Protection: Battery-backed SRAM for application program and retentive data
- Bus Interface: TriBus inter-processor bus operating at 25 Mbaud
Field Application & The “Trench” Experience
The Trench Story
A Gulf Coast ethylene plant ran into a persistent Channel B fault on their primary safety instrumented system during a stormy summer night. The existing 8111 module had a degrading clock oscillator causing inter-processor sync timeouts. Because the 8111 supports true hot-swapping, the I&C technician pulled the degraded unit from slot 2 and slid in a verified surplus replacement. The TriBus re-synchronized within seconds, updated memory structures automatically, and restored full 2oo3 voting redundancy without bumping the plant’s feed valves.
Key Niche Applications
- Ethylene Furnace Emergency Shutdown (ESD): Monitoring critical fuel gas pressure trip points and burner flame-out conditions.
- Compressor Anti-Surge & Train Protection: Executing high-speed trip logic for large-scale axial and centrifugal compressors.
- Hydrocracker High-Pressure Isolation: Coordinating safety interlocks across multi-stage high-pressure reactor loops.
Transparency SOP: QA & Testing
- Visual & ESD Inspection: Board components undergo high-magnification checking for thermal stress, swollen caps, or trace degradation.
- Backplane Simulation: Inserted into an active Tricon test chassis to verify mechanical fit and backplane connector pin integrity.
- TriBus Synchronization Test: Verified in a full 3-module set to monitor lockstep clock execution and peer-to-peer data interchange.
- Firmware & Memory Validation: NVRAM health checks executed alongside TriStation communication link stress testing.
- Full Thermal Bake: Operated under full rated load inside an environmental chamber to catch latent semiconductor drift.

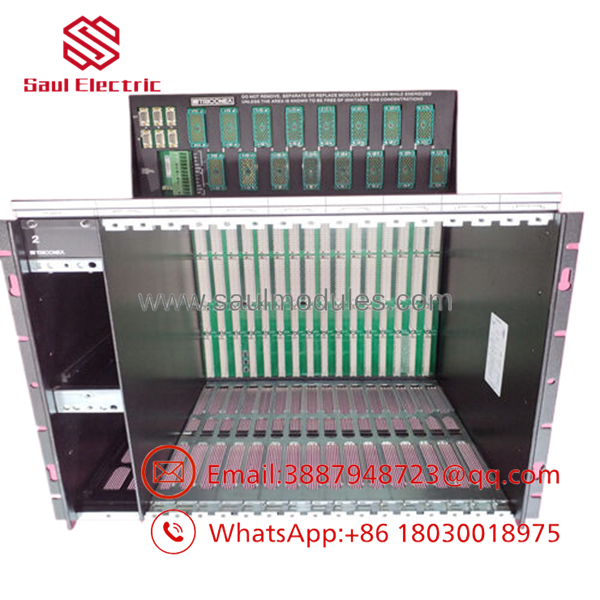

- 8111

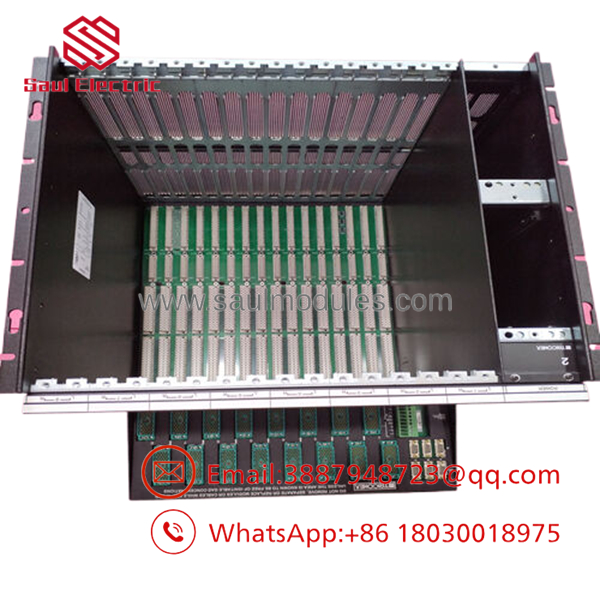

- 8111
The Veteran’s Tech Trap Guide
- ⚠️ Firmware Revisions Must Match: Do not drop an 8111 running firmware v8.x into a rack alongside modules running v9.x. The TriBus will refuse to bring the new module into active voting, leaving you running degraded on a 2oo2 or 1oo2 setup.
- PRO TIP: Check the battery voltage on the backplane or module prior to installation. If memory retention power drops during a cold rack migration, you lose non-volatile registers.
- ⚠️ Keying Pins: Verify the mechanical keying plastic on the chassis slot. Over-forcing a improperly keyed 8111 will bend backplane pins, turning a quick swapping job into a full backplane replacement nightmare.
Dynamic FAQ
Q: Can I hot-swap the Triconex 8111 while the rest of the system is live?
A: Yes. The 8111 is designed for live insertion and removal. Once inserted, the healthy modules on the TriBus copy the application state and retentive data to the new module before bringing it online.
Q: How do I confirm the firmware version on a surplus 8111 before sliding it into my rack?
A: Firmware is stored on internal EPROMs/Flash. We document and tag the exact firmware revision loaded on each module during bench testing so you can match your system software set.
Q: What warranty comes with this surplus unit?
A: Every unit comes backed by a comprehensive 1-year replacement warranty covering all functional hardware failures.
Q: How does the 8111 handle a internal memory checksum failure?
A: If the module detects an uncorrectable memory error during running diagnostics, it immediately turns off its PASS light, opens its output alarm contact, and smoothly passes control to the remaining active processors.
