Triconex 9563-810 16-Point DI FTA Module

Description

Product Introduction

The Triconex 9563-810 is a heavy-duty, 16-channel digital input Field Termination Assembly (FTA) engineered for Tricon Triple Modular Redundant (TMR) safety instrumented systems. It functions as the physical marshalling layer, receiving 24 VDC discrete signals from field switches, contact closures, and sensors, then routing them cleanly to a Tricon Digital Input module (such as the 3501E, 3502E, or 3503E) via pre-fabricated multi-conductor system cables.

Designed for high-reliability process safety environments, the 9563-810 panel eliminates direct cabinet wiring to the main chassis backplane. Each point features onboard field circuit protection, current-limiting resistors, and dedicated terminal blocks, preventing external field wiring faults or voltage surges from damaging expensive TMR processor cards inside the main rack.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a critical turnaround at a gas fractionation facility, a lightning strike induced a severe voltage surge down an unshielded field contact run. The surge blew the individual channel protection fuses on the 9563-810 panel, immediately isolating the high voltage right at the cabinet marshalling interface. Because the 9563-810 absorbed the transient, the main Tricon 3503E input module and TMR main processors remained completely unscathed. The instrument crew replaced two blown micro-fuses on the FTA panel and had the safety loops verified before the unit start-up sequence began.

Target Applications:

• Emergency Shutdown (ESD): Marshalling field contact inputs from pushbuttons, pressure switches, and gas detectors to SIL3 safety loops.
• Burner Management Systems (BMS): Interfacing flame scanner status contacts and limit switches on large industrial boilers and furnaces.
• Fire & Gas Systems (F&G): Routing discrete alarm lines from zone fire boxes into central safety logic controllers.

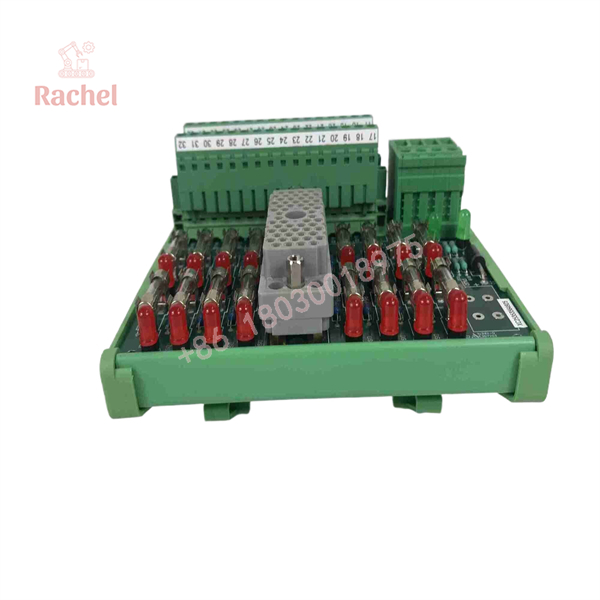

9563-810

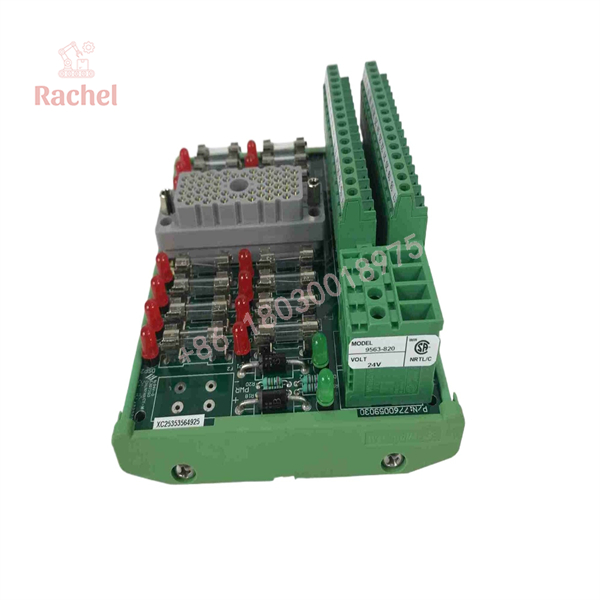

9563-810

Transparency SOP: Quality Assurance & Testing

We treat safety system hardware with uncompromising standards. Every Triconex 9563-810 termination panel completes a strict multi-step inspection before leaving our warehouse:

1. Inbound Mechanical Check: Inspection of the PCB substrate, terminal blocks, DIN-rail mounting feet, and 56-pin system cable connector for bent pins or cracked housings.
2. Circuit & Continuity Verification: Point-to-point resistance checks across all 16 channels, ensuring zero cold solder joints or traces damaged by past field overcurrent.
3. Fuse Holder & Diode Check: Verification of individual channel fuses, blown-fuse LED indicators (if equipped), and reverse-polarity protection diodes.
4. Live System Loop Test: Mated via multi-conductor cable to a live Tricon test rig to confirm accurate signal passthrough to the chassis I/O bus.
5. ESD Cleaning & Packaging: Thoroughly cleaned, packed in anti-static shielding bags, and secured in custom foam-lined shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Never force the 56-pin system cable connector! The mass-termination connector uses a central locking screw. Alignment must be precise before tightening. Force-seating the connector at an angle will bend the delicate Elco pins inside, causing hard-to-find intermittent comm faults across multiple channels.
• ❗ Verify field voltage polarity before landing wires. Reverse-wiring 24 VDC onto the field screw terminals can blow the onboard channel fuses instantly or cause nuisance field power supply trips. Double-check your loop diagrams before powering up the field loop.
• ⚠️ Match system cable part numbers exactly. Ensure the interface cable connecting the 9563-810 to the Tricon I/O chassis matches the correct pinout (e.g., 9000 series pre-molded cables). Generic third-party ribbon cables lack proper shielding and ground drains required for SIL3 compliance.
• ❗ Keep extra replacement micro-fuses in the cabinet door. If a field short occurs, the onboard fuse will pop to protect the module. Save yourself a 2 AM trip to the central warehouse by keeping a pack of spare OEM-rated fast-acting fuses right inside the marshalling enclosure.

Frequently Asked Questions

Q: Can I use the Triconex 9563-810 with both 3501E and 3503E Digital Input modules?

A: Yes. The 9563-810 standard DI termination panel is compatible with standard 24 VDC Tricon TMR digital input modules, provided the matching system interface cable is utilized.

Q: Are field channels on the 9563-810 individually fused?

A: Yes. Each of the 16 input channels features an onboard fast-acting fuse to isolate individual field wiring shorts without affecting the remaining channels on the panel.

Q: Is the 9563-810 termination panel hot-swappable?

A: While the panel itself has no active microprocessor, disconnecting the main system cable online will drop all 16 input signals simultaneously to the controller, which may trip active safety loops. Always bypass or swap during planned maintenance unless safety protocols permit online field isolation.

Q: What is the main difference between a standard FTA and an IS (Intrinsically Safe) FTA?

A: The standard 9563-810 handles standard 24 VDC field signals in non-hazardous or general industrial locations. IS-rated FTAs incorporate galvanically isolated intrinsic safety barriers for direct connection to Zone 0/1 or Class I, Div 1 hazardous areas.

Q: What warranty comes with surplus Triconex 9563-810 panels?

A: All bench-tested surplus and reconditioned Triconex 9563-810 termination panels ship with a full 12-month replacement warranty.
