Description
Product Introduction & Engineering Value
Option A in action: Designed explicitly for Tricon high-density Digital Output (DO) modules, the Triconex 9566-810F provides a clean, robust electrical interface to land field wiring without risking backplane hardware damage.
Wiring field actuators directly to chassis connectors introduces electrical noise and risk of short-circuit damage to sensitive cards. The 9566-810F field termination panel acts as the physical barrier and circuit protection layer. Featuring onboard fuses for each point, it isolates field-side wiring faults—such as shorted solenoid coils or grounded cable runs—so a single field fault won’t cause systemic module shutdown.
Technical Specifications
- Channel Count: 16/32 field connection points depending on paired DO module configuration
- Circuit Protection: Per-point fast-acting fuse protection (‘F’ suffix indicates inline fuse blocks)
- Nominal Field Voltage: 24 VDC / 48 VDC operational range
- Cable Interface: Dual heavy-duty multi-pin ELCO / Mass Termination connectors for system cable links
- Field Terminal Type: Compression screw terminals supporting 12–24 AWG wiring
- Terminal Torque Rating: 4.4 to 5.3 in-lbs (0.5 to 0.6 Nm)
- Mounting Configuration: Standard 35mm DIN-rail mounting or direct panel backplate mounting
- Operating Temperature: 0°C to 60°C (32°F to 140°F) ambient
Field Application & The “Trench” Experience
The Trench Story
A chemical plant’s emergency trip valve solenoid suffered an internal insulation breakdown following a water wash, dead-shorting the field cable back to the control room. Because the loop was wired through a Triconex 9566-810F panel, the inline fuse for that point cleared in milliseconds. The panel’s LED visual blown-fuse indicator lit up immediately, leaving the remaining output channels operating cleanly on the parent digital output module. I&C technicians replaced the blown sub-miniature fuse on the 9566-810F panel terminal block in under two minutes once the field valve was isolated, completely avoiding a forced plant trip.
Key Niche Applications
- Emergency Isolation Valve (EIV) Actuation: Interfacing 24VDC high-integrity digital output cards to hazardous area trip solenoids.
- Deluge and Fire Suppression Systems: Landings for high-current alarm horns, strobes, and fire suppression release coils.
- Burner Management System (BMS) Interlocks: Direct field output landing for fuel gas shut-off valve interlocks.
Transparency SOP: QA & Testing
- Connector Continuity Testing: Every multi-pin interface header is ring-tested pin-by-pin for 0-ohm resistance and trace isolation.
- Fuse Block Integrity Check: All fuse clips are mechanically tested for tension and continuity checked using verified fast-acting fuses.
- Hi-Pot Voltage Withstand: Terminal blocks undergo 500VDC isolation checks to ensure no shorts exist between adjacent field terminals or ground tracks.
- Physical Terminal Screw Inspection: Terminals are inspected for stripped threads and torque-tested to factory tolerances.

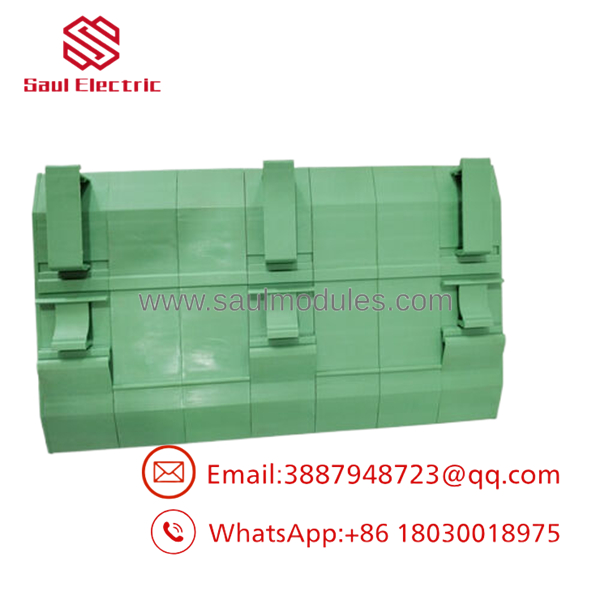

- 9566-810F

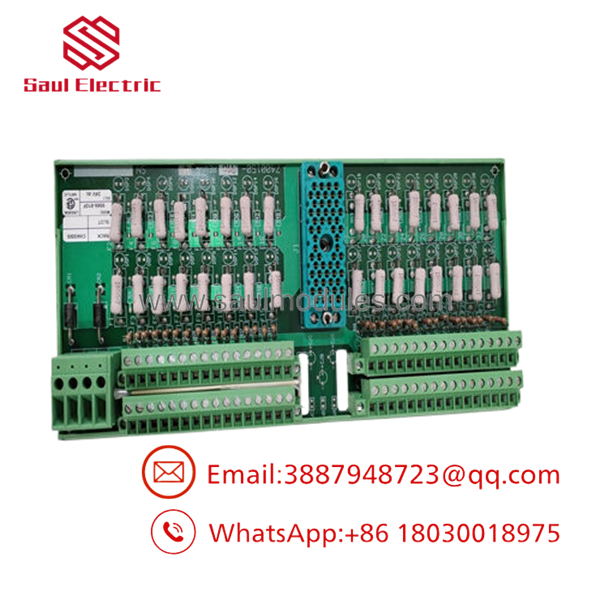

- 9566-810F
The Veteran’s Tech Trap Guide
- ⚠️ Fuse Rating Oversizing: Always replace blown panel fuses with the exact fast-acting fuse rating specified in your Tricon system drawing. Dropping a higher-amp fuse into the 9566-810F board bypasses protection and can cause the main digital output module’s internal drivers to burn out before the panel fuse blows.
- PRO TIP: Label system interface cables before removing them during panel replacements. The multi-pin system cables look identical but map directly to specific channel groups on the parent DO module.
- ⚠️ Torque Screws Properly: Over-tightening field terminal screws strips the cage clamps, while under-tightening causes high-resistance contacts that trigger intermittent “Field Loop Open” diagnostic faults. Use a torque screwdriver set to 4.5 in-lbs (0.5 Nm).
Dynamic FAQ
Q: What does the “F” suffix represent in the 9566-810F part number?
A: The “F” designation confirms that the termination panel is equipped with inline field-side fuse protection on each output circuit, unlike standard non-fused termination boards.
Q: Can I replace a blown fuse on the 9566-810F panel while the field circuit is powered?
A: While possible, it is critical practice to de-energize or isolate the specific output point via software or field disconnect first to prevent arcing across the fuse holder when inserting the new fuse.
Q: Is the 9566-810F compatible with both Tricon v9 and v10 Digital Output modules?
A: Yes, the 9566-810F termination panel is compatible across Tricon v9–v10 architectures, provided it is paired with the correct interface cable and matching digital output card.
Q: Does your surplus 9566-810F come with pre-installed fuses?
A: Yes, all tested surplus units are shipped with tested, healthy fuses pre-installed in every channel position, along with a full 1-year replacement warranty.
