Triconex 9662-610 High-Density External Termination Panel

Description

Product Introduction

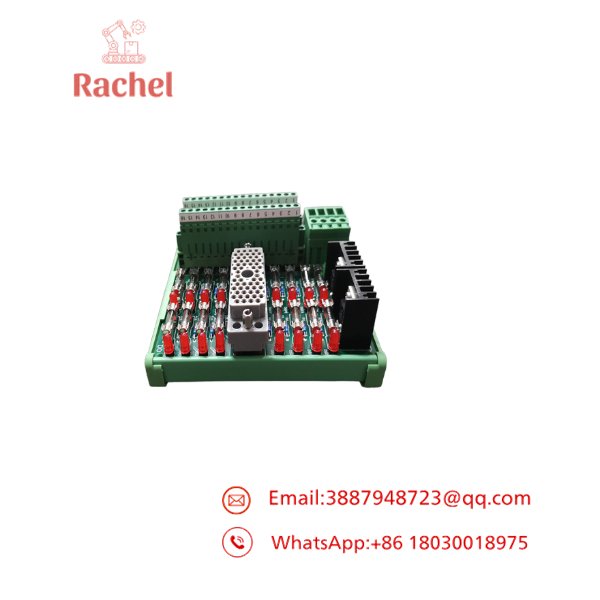

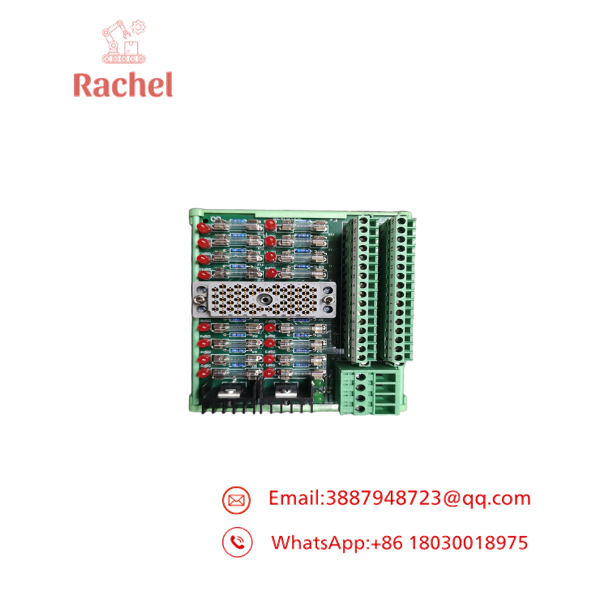

The Triconex 9662-610 is an External Termination Panel (ETP) engineered for the industry-standard Tricon Triple Modular Redundant (TMR) safety system. Serving as the primary physical bridge between field instrument wiring and the Tricon main chassis I/O modules, this assembly organizes and routes 24 VDC field signals directly through pre-fabricated, heavy-duty multi-conductor interface cables.

What makes the 9662-610 essential in high-availability safety environments is its ability to isolate cabinet field wiring from sensitive backplane electronics. By housing passive signal routing, cable connector headers, and field terminal blocks on a rugged DIN-rail-mounted board, it streamlines field installation, simplifies loop checks, and eliminates cabinet wiring clutter inside safety instrumented cabinets.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:30 AM during a fast-track turnaround at a petroleum refinery. The instrument team is loop-testing dozens of newly wired emergency shutoff valve limit switches into a Tricon ESD rack. A cracked, aged terminal block on an old field termination assembly causes intermittent channel resistance, throwing continuous wiring fault alarms in TriStation. You need an exact-fit replacement termination panel that snaps right onto the DIN rail, takes the existing multi-conductor cable header, and lands field wiring without requiring cabinet modifications.

• Oil & Gas Refineries – Emergency Shutdown Systems (ESD) – Connects field limit switches and safety interlock signals to main TMR input cards.
• Chemical Processing Facilities – Fire & Gas Safety Racks – Routes field detector wiring cleanly to cabinet safety processors.
• Offshore Production Platforms – High-Integrity Pressure Protection Systems (HIPPS) – Houses reliable field cable connections in high-vibration environments.

During a recent control room upgrade at an offshore facility, saltwater humidity had oxidized the terminal screws on several legacy field panels. Replacing the corroded boards with clean 9662-610 termination panels allowed technicians to complete loop checks and certify the rack safety loops hours ahead of sea-trial deadlines.

Transparency SOP: Quality Assurance & Testing

We test every Triconex 9662-610 panel on actual physical test rigs before it leaves our warehouse. Here is our direct testing process:

1. Inbound Visual & Pin Inspection: We inspect terminal block screws, PCB traces, mounting feet, and multi-pin connector headers under magnification for bent pins or corrosion.
2. Continuity & Short-Circuit Sweep: Every field point terminal is swept end-to-end against its corresponding multi-pin interface cable pin to confirm zero resistance and zero cross-channel shorts.
3. High-Voltage Insulation Resistance Check: Megger testing is performed between adjacent terminal channels and chassis ground to verify dielectric integrity.
4. Interface Cable Handshake Test: The panel is mated with genuine Tricon interface cables connected to a test rack to verify clean mechanical locking and signal throughput.
5. ESD & Protective Packaging: Cleared panels are thoroughly cleaned, sealed in static-shielding material, and encased in high-density foam shipping boxes.

9662-610

9662-610

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check cable locking screws! When plugging the heavy multi-pin interface cable into the 9662-610 connector header, tighten both side thumb-screws evenly. A cocked or loose cable connector can cause micro-breaks in channel continuity that present as sporadic field loop faults in TriStation.
• ❗ Verify terminal torque specs. Do not over-torque field wiring terminal screws. Using an uncalibrated electric screwdriver can strip the internal brass threads on the terminal block, forcing you to replace the entire assembly.
• ⚠️ Keep field cable shields grounded correctly. Ensure field wire drain wires are landed strictly on the designated shield ground bus bar on or adjacent to the ETP. Floating or double-grounded shields will introduce ground loop noise into your input signals.
• ❗ Match your card configuration. Make sure the 9662-610 model revision aligns with the exact part number required for your specific Tricon I/O module. Using a mismatched ETP can cause unexpected field wiring faults or incorrect signal routing.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 9662-610 a passive termination panel or does it contain active electronics?

A: The 9662-610 is primarily a passive External Termination Panel designed for reliable field signal routing and cable consolidation, though certain variants may include passive current-limiting resistors or fuses depending on loop specifications.

Q: Can I replace the 9662-610 termination panel while the Tricon system is running?

A: Replacing the physical termination panel requires disconnecting active field wiring. If the associated I/O card controls live safety loops, you must follow your plant’s safety bypass SOP before disconnecting field signals to prevent unexpected process trips.

Q: What is the main difference between different 9662 series termination panel suffixes (e.g., -610 vs -810)?

A: The numerical suffix designates specific channel layouts, terminal block styles (screw clamp vs. spring clamp), keying options, or specific cable compatibility with individual Tricon digital or analog I/O cards.

Q: Are these units original Triconex / Schneider Electric products?

A: Yes, 100%. We only supply original OEM Triconex hardware. We do not sell reverse-engineered, unbranded, or third-party cloned termination boards.

Q: What warranty comes with this field panel?

A: All Triconex 9662-610 panels sold by us come standard with a comprehensive 12-month operational warranty covering PCB trace integrity, connector pin alignment, and terminal block functionality.
