Triconex DI2301 | Digital Input Module for Trident Safety Systems

Description

Core Product Summary (Brand / Model / Key Attributes)

The Triconex DI2301 (order numbers 7400208B-020 / 7400208C-020, associated with the Model 2301 Digital Input Baseplate) is a digital input module for the Triconex Trident safety system, a triple modular redundant (TMR) safety controller platform from Triconex (an Invensys / Schneider Electric brand). The module acquires discrete status signals from field devices — switches, sensors, and emergency shutdown contacts — and processes them through three independent signal paths for fault-tolerant presentation to the safety controller.

The DI2301 belongs to the Trident platform’s distributed I/O range for low point-count and distributed installations. It supports 24V DC digital input signals and integrates into the Trident architecture alongside companion modules for analog input, digital output, and communication functions.

Key Technical Specifications

Detailed Product Overview

The DI2301 is the digital input interface module of the Triconex Trident safety system, designed for safety instrumented systems (SIS), emergency shutdown (ESD) logic, fire and gas detection, and turbine and compressor protection. Its role is to translate binary field signals — breaker auxiliary contacts, pump run feedback, limit switches, pressure and temperature switches — into digital data for the Trident controller to vote on and act upon.

The module’s defining characteristic is its triple modular redundant signal path. Each input is independently acquired and processed through three isolated channels, so a single hardware fault in one channel does not corrupt the input state presented to the controller. This TMR architecture is the basis for the platform’s SIL 3 capability under IEC 61508 and its ability to tolerate a channel failure while remaining in service — a key requirement for safety systems where a spurious trip is costly and an undetected dangerous failure is unacceptable.

Electrical design supports noisy plant environments: the 24V DC input thresholds (15–30V ON, 0–5V OFF) provide a defined switching band with high noise immunity, and channel-to-bus isolation with surge protection up to 1500V blocks transients and ground-loop interference from reaching the controller. Diagnostic coverage is continuous: the module runs ongoing self-tests and reports per-channel fault alerts, and front-panel LEDs give maintenance staff an immediate visual indication of channel status.

In the Trident rack architecture, the DI2301 module pairs with the Model 2301 Digital Input Baseplate (order reference 3000673-020), which provides the I/O interconnect assembly, slot cover, and terminal cover for the installation. The 2301 baseplate kit belongs to the same family numbering as the other Trident I/O baseplates (2201, 2351, 2401, 2451, and so on), which allows standardized rack layouts with mixed I/O types for distributed safety applications.

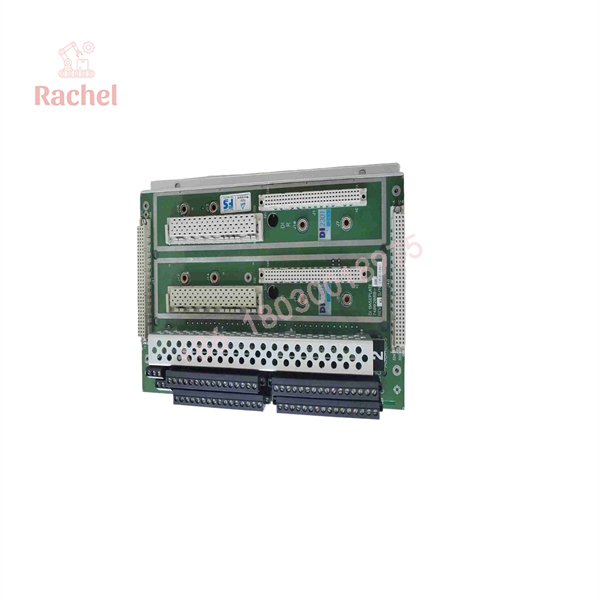

DI2301

Engineering Selection Highlights

• TMR voting integrity — all three channels of each input must be correctly terminated; partial or single-channel wiring faults will be flagged by module diagnostics and can mask genuine field signal changes, so channel-level wiring checks belong in the commissioning procedure.
• Input threshold band — with ON at 15–30V and OFF at 0–5V, field signals in the intermediate band are undefined by design; verify that field contact supplies hold solid 24V levels, especially over long cable runs with voltage drop.
• Safety certification — IEC 61508 SIL 3, ATEX, and cULus approvals support use in certified safety loops and hazardous areas; confirm the specific ATEX configuration when the installation is in a classified area.
• Baseplate pairing — the module requires the matching Model 2301 Digital Input Baseplate Kit (3000673-020); specifying the module alone is insufficient for a complete installation.
• Response time budget — with a response time under 10 milliseconds, the module fits trip-response budgets of most ESD and F&G loops; include it in the overall safety response time calculation.
• Thermal and load planning — at 130 mA typical per module (200 mA fault), fully populated racks remain modest in power draw, but budget rack power and heat dissipation for worst-case fault conditions.
• Spare-parts strategy — the module supports online, module-level replacement in the Trident architecture, so a verified spare DI2301 with matching baseplate hardware is the standard turnaround spare for safety cabinet maintenance.

Dimensions, Mounting & Connection Notes

• Dimensions: 24.8 × 17.8 × 8 cm
• Weight: 1.34 kg
• Mounting: installs on the Model 2301 Digital Input Baseplate in the Trident I/O rack; baseplate kit provides slot and terminal covers
• Field wiring: terminates at the baseplate terminal system; three-channel TMR wiring per input must be maintained per the installation documentation
• Indicators: front-panel LED indication per channel for status and fault diagnostics
• Environment: −40 °C to +70 °C operating; 130 mA typical, 200 mA fault current power draw

System Compatibility & Integration Requirements

FAQ

What is the Triconex DI2301?
It is a digital input module for the Triconex Trident TMR safety system, providing fault-tolerant acquisition of discrete field signals for safety instrumented systems. Associated order numbers include 7400208B-020 and 7400208C-020.

What architecture does it use?
Triple modular redundancy: each input is processed through three independent, isolated channels, so a single channel fault does not cause a false or missed input state at the controller.

What input signals does it accept?
24V DC discrete signals, with ON threshold 15–30V and OFF threshold 0–5V, from devices such as switches, sensors, and emergency shutdown contacts.

Which safety standards does it meet?
It carries IEC 61508 SIL 3, ATEX, and cULus certifications, supporting use in certified safety loops and hazardous locations.

What baseplate does it require?
The Model 2301 Digital Input Baseplate Kit (PN 3000673-020), which includes the I/O baseplate, interconnect assembly, slot cover, and terminal cover.

How fast does it respond?
In under 10 milliseconds, suitable for ESD and fire & gas trip response budgets.

Can it be replaced online?
Yes. The Trident architecture supports online, module-level replacement without disrupting field cabling, subject to the system’s safety maintenance procedures.

What is the difference between 7400208B-020 and 7400208C-020?
These are hardware revision/order references for the DI2301 digital input hardware; verify the revision marked on the installed unit when ordering spares to ensure a like-for-like exchange.

Verification & Troubleshooting Notes

• Channel reads intermittently or wrong: verify the field contact supply holds a solid 24V at the baseplate terminal — signals floating in the 5–15V band between the OFF and ON thresholds are undefined by design.
• Module fault alarms: check the per-channel LED indications; a single-channel fault is tolerated by the TMR vote but must be corrected before the next proof test interval, since operating with a known channel fault erodes the safety integrity of the loop.
• Inputs erratic near VFDs or high-interference equipment: confirm shielded field cabling practice and that channel-to-bus isolation has not been bypassed by external grounding of the input commons.
• After module replacement: confirm the new module passes power-up self-test and that all three channel LEDs report consistent states with the known field conditions before returning the loop to armed/protection-in-service status.
• Baseplate-related faults: module faults that persist across module swaps indicate a baseplate or interconnect problem; the Model 2301 baseplate kit (3000673-020) is the replacement unit, and interconnect assembly replacement should follow the Trident installation documentation.
• All module replacement and wiring work must follow the site’s safety system work clearance procedure — for a live SIS/ESD system, module-level work may be permitted online, but only under the plant’s documented bypass and restoration process. Observe ESD precautions when handling the module.
