Description
Core Product Summary
The UNIOP EKDC-16 (Part Number: 6ZA933-7) is a panel-mounted industrial operator interface and HMI control terminal designed for PLC and machine-control interaction. Built within the EKDC series architecture, this unit features a 33-key physical ASCII keyboard layout and user status LEDs to facilitate direct operator command entry and status monitoring on automated industrial equipment.
Engineered for integration into standard control enclosures, the device operates on a standard 24 VDC industrial power supply. It provides robust human-machine interaction capabilities without relying on touchscreen displays, making it well-suited for legacy production environments, heavy manufacturing cells, and automated machinery where tactile physical buttons are preferred for reliable operation.
Key Technical Specifications
| Specification | Verified Value / Parameter |
| Brand / Manufacturer | UNIOP / Exor International |
| Product Family | EKDC Series |
| Model / Part Number | EKDC-16 / 6ZA933-7 |
| Device Type | Industrial Operator Interface / HMI |
| Operator Input | 33-Key ASCII Keyboard |
| Status Indication | User LEDs |
| Power Supply | 24 VDC |
| Mounting Type | Panel-mounted |
Detailed Product Overview
The UNIOP EKDC-16 (6ZA933-7) functions as an essential operator communication node within industrial automation networks. By interfacing directly with programmable logic controllers (PLCs) and machine controllers, the unit allows operators to monitor process variables, input parameters, and execute control commands.
Unlike modern graphical touchscreens, the EKDC-16 relies on a dedicated 33-key tactile keyboard configuration. This physical interface ensures dependable actuation in environments subject to vibration, oil mist, or where operators wear heavy protective gloves. The integrated user LEDs provide immediate visual feedback regarding machine status, fault states, or operational modes, supporting clear communication on the factory floor.
System integrators incorporating the EKDC-16 into an automation panel must verify communication driver compatibility with the host controller, establish proper 24 VDC power distribution, and ensure cutout dimensions match the physical enclosure requirements.
Dimensions, Mounting & Connection Notes
- Enclosure Mounting: Designed for flush mounting into industrial control cabinet doors or operator consoles using standard panel-fastening brackets.
- Power Connection: Connects to a standard 24 VDC power distribution terminal block.
- Operator Interface Layout: Incorporates a 33-key tactile ASCII keyboard and integrated status LEDs on the front membrane.
- Environmental Considerations: Protect against moisture, conductive dust, and excessive ambient temperatures by housing the panel within an appropriately rated industrial enclosure.

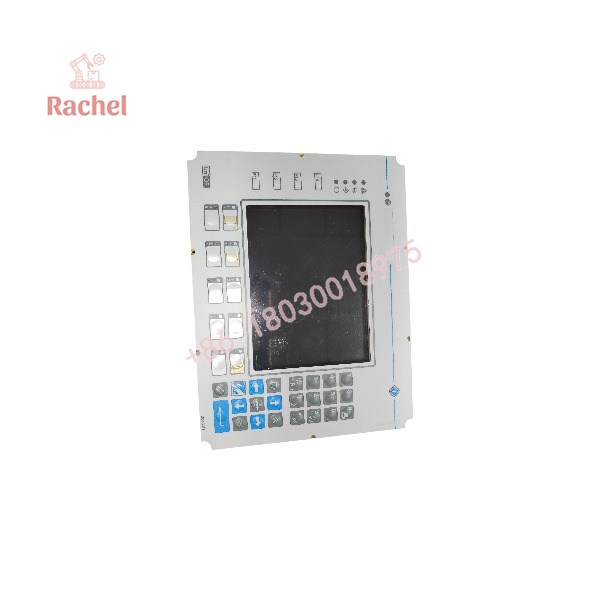

EKDC-16 6ZA933-7

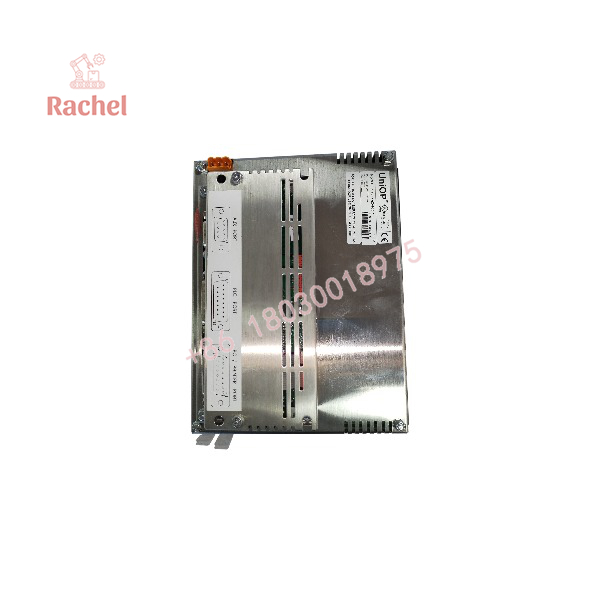

EKDC-16 6ZA933-7
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Controller Platform | Compatible PLC and machine controllers supporting UniOP protocols | Verify protocol driver availability in the HMI configuration software |
| Power Supply | 24 VDC industrial power source | Ensure regulated DC supply meets current draw requirements |
| Enclosure Mounting | Standard industrial control panel cutout | Requires secure panel-mounting hardware for a tight front-seal fit |
| Communication Interface | Serial / fieldbus communication ports depending on hardware build | Check cabling and pinout configurations for the target controller |
FAQ
What is the UNIOP EKDC-16 6ZA933-7?
The UNIOP EKDC-16 (Part Number: 6ZA933-7) is a panel-mounted industrial operator interface and HMI terminal featuring a 33-key physical keyboard.
Which product family does this unit belong to?
It belongs to the Exor/UNIOP EKDC series of industrial operator terminals.
What type of operator input does the EKDC-16 use?
It uses a 33-key physical ASCII keyboard instead of a touchscreen interface, paired with user status LEDs.
What power supply voltage is required?
The unit operates on a standard 24 VDC power supply.
What is the primary application for this HMI?
It is used for machine and PLC operator interaction, allowing users to enter commands, alter parameters, and monitor process statuses in industrial automation environments.
