Product Introduction & Engineering Value

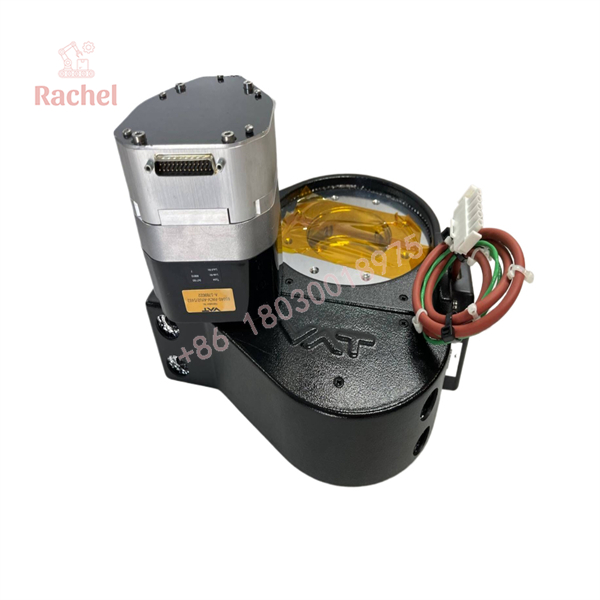

Vacuum process stability depends heavily on accurate conductance control. The VAT 65040-PACV-AYU2 uses a precision pendulum mechanism to regulate gas flow between the process chamber and pumping system, allowing engineers to maintain repeatable pressure conditions during critical manufacturing steps.
Designed for semiconductor vacuum applications, this PACV valve combines position feedback, pressure control capability, and configurable communication interfaces. It is commonly used as a replacement component for mature process tools where maintaining original chamber performance is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VAT Vakuumventile AG |
| Model Number | 65040-PACV-AYU2 |
| Valve Type | Pendulum Control Valve |
| Series | PACV |
| Nominal Size | DN40 |
| Valve Function | Vacuum pressure control and isolation |
| Actuation Method | Stepper motor actuator |
| Position Feedback | Encoder-based position monitoring |
| Minimum Pressure Range | Approx. 1 × 10⁻⁸ mbar |
| Maximum Pressure | Approx. 1.2 bar absolute |
| Control Interface | RS232, analog I/O, optional industrial fieldbus interfaces |
| Application Environment | Semiconductor vacuum process systems |
65040-PACV-AYU2
Field Application & The “Trench” Experience
A semiconductor equipment maintenance team operating a plasma etch platform began seeing unstable chamber pressure during recipe transitions. The process engineers noticed that the pressure response time had increased, creating longer stabilization periods before wafers could enter production.
The maintenance group reviewed pump performance, chamber sealing, and controller communication. After confirming that the vacuum system infrastructure was operating normally, attention moved to the pendulum valve assembly. Replacing the aging VAT 65040-PACV-AYU2 restored consistent pressure control behavior and reduced repeated chamber tuning adjustments.
Common application scenarios include:
- Plasma etching chamber pressure regulation
- CVD / PVD thin-film deposition vacuum control
- Semiconductor load-lock and process chamber isolation systems
Transparency SOP: QA & Testing
A vacuum valve requires more than a visual inspection. Proper evaluation should include mechanical and operational checks.
Inspection and test workflow:
- Mechanical condition review
- Verify valve body condition
- Inspect flange surfaces
- Check actuator movement
- Examine seals and contamination status
- Electrical verification
- Confirm actuator electrical response
- Check encoder feedback signals
- Verify connector condition
- Operational testing
- Verify valve positioning response
- Confirm controller communication
- Check pressure control performance when test equipment is available
Each valve should be matched against the installed tool configuration before installation.
The Veteran’s Tech Trap Guide
⚠️ Do not ignore chamber contamination history.
A replacement valve installed into a contaminated vacuum environment can quickly develop the same symptoms as the original failure.
⚠️ Position calibration matters.
Pendulum valves rely on accurate position feedback. Incorrect setup or missing calibration procedures can affect pressure control accuracy.
⚠️ Confirm flange and configuration details.
VAT offers many vacuum valve variations. Similar-looking models may differ in actuator configuration, controller options, or chamber interface.
PRO TIP: Record the valve position feedback values and controller parameters before removing the original unit. This information can speed up system recovery after replacement.
Dynamic FAQ
Q1. What is the VAT 65040-PACV-AYU2 used for?
The VAT 65040-PACV-AYU2 is a vacuum pendulum control valve used for precision pressure regulation in vacuum process equipment, especially semiconductor manufacturing systems.
Q2. What type of actuator does this VAT valve use?
This model uses a stepper motor actuator with encoder-based position monitoring for accurate valve plate positioning.
Q3. Can the 65040-PACV-AYU2 replace another VAT valve directly?
Direct replacement depends on valve configuration, flange specification, actuator version, and installed equipment requirements. Confirm the complete part number before installation.
Q4. Is the 65040-PACV-AYU2 available as new surplus?
Availability varies by inventory source. Units may be supplied as new surplus, tested used, or refurbished depending on condition.
Q5. What should be checked before installing a refurbished vacuum valve?
Verify flange compatibility, actuator operation, position feedback response, sealing condition, and controller communication before returning the tool to production.
Q6. What warranty is normally provided for this valve?
Warranty coverage depends on supplier condition classification. New surplus and refurbished VAT valves generally have different warranty terms, which should be confirmed before purchase.
