Description
Product Introduction & Engineering Value
When a VM600 rack is protecting a turbine, compressor, pump train, or other high-speed rotating asset, the MPC4 sits directly in the machinery-protection measurement chain. It can process four dynamic signals plus two speed inputs, allowing one card to handle measurements such as relative shaft vibration, casing vibration, displacement, phase, and speed-related parameters.
For replacement work, the exact suffix matters. VM600 MPC4 variants are not simply interchangeable because configuration, safety classification, and associated I/O hardware can differ. Match the complete part number and existing rack/card arrangement before installing a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Vibro-Meter / Meggitt |
| System | VM600 Machinery Protection System |
| Card | MPC4 |
| Part Number | 200-510-071-113 |
| Associated Part | 200-510-111-034 |
| Dynamic Channels | 4 |
| Tachometer Channels | 2 |
| Dynamic Input Range | 0 to +20 V or 0 to −20 V DC; up to ±10 V AC |
| Input Impedance | Approximately 200 kΩ |
| Common-Mode Range | −50 to +50 V |
| CMRR | >60 dB at 50 Hz |
| Crosstalk | Approximately −72 dB |
| Vibration Frequency Range | Approximately 0.1 Hz to 10 kHz |
| Physical Format | 6U × 20 mm VM600/VME-style card |
| Weight | Approximately 0.4 kg |
Published specifications also identify front-panel buffered outputs, programmable broadband/narrowband filtering, configurable alarm and danger thresholds, and live insertion/removal capability.
The four dynamic channels are independently configurable for different measurement requirements. Depending on the sensor and configuration, the MPC4 can process acceleration, velocity, and proximity/displacement-related signals.
Field Application & the “Trench” Experience
A practical failure scenario looks like this: a compressor train is scheduled for a maintenance outage, and one VM600 protection channel begins producing inconsistent vibration data after years of service. The DCS values still appear plausible, but the maintenance team does not want to return the compressor to operation with a questionable protection channel.
The replacement MPC4 is installed in the VM600 rack, the existing sensor wiring and configuration are checked against the maintenance records, and the tachometer channels are verified before startup. The important point is not simply getting the card to power up. The protection thresholds, measurement type, channel assignment, and associated I/O configuration must agree with the original engineering design.
Niche applications
- Steam turbine bearing vibration and shaft-position protection — monitoring radial shaft movement and speed reference signals.
- Centrifugal compressor train monitoring — combining proximity-probe vibration measurements with tachometer information for phase and rotational-speed analysis.
- Feedwater pump or boiler-feed pump protection — detecting abnormal vibration before bearing or coupling damage escalates.
These applications align with the MPC4’s intended machinery-monitoring functions, including vibration, displacement, Smax, eccentricity, thrust position, and housing-expansion measurements.

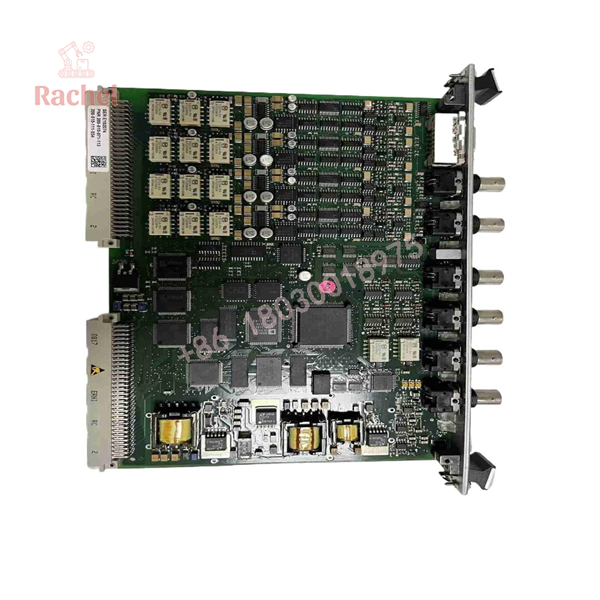

VM600 MPC4 200-510-071-113

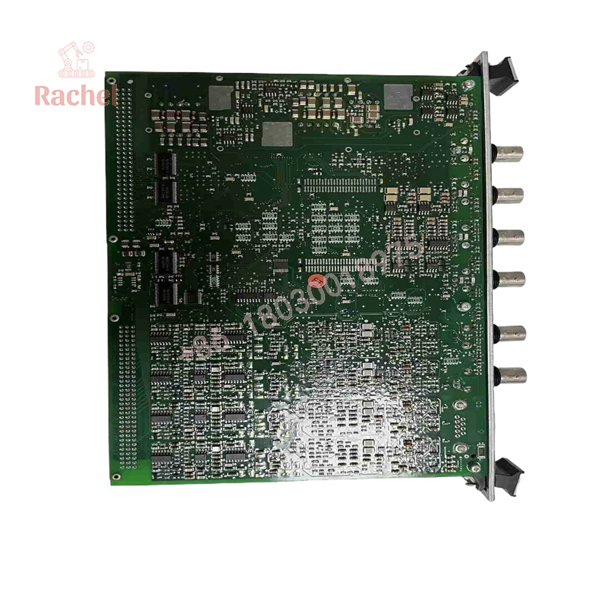

VM600 MPC4 200-510-071-113
Transparency SOP: QA & Testing
For New Surplus or Refurbished stock, a meaningful inspection should go beyond checking whether the front-panel LEDs illuminate.
- Part-number verification — confirm the complete 200-510-071-113 designation and hardware revision against the purchase requirement.
- Physical inspection — examine the PCB, connectors, front-panel BNCs, edge connector, fasteners, and enclosure for damage or contamination.
- Power-up test — verify that the card initializes correctly in a compatible VM600 rack.
- Channel verification — test representative dynamic inputs and confirm expected channel behavior.
- Speed-channel verification — check the tachometer inputs where test equipment and the configured application permit.
- Functional/configuration check — verify alarm processing, measurement configuration, and communication with the associated VM600 hardware.
- Final inspection — record the tested part number, condition, and test results before shipment.
A stock listing from an established automation supplier identifies the 200-510-071-113 as a VM600 machinery protection card and specifies four dynamic channels and two speed channels; however, seller claims of condition should not be treated as OEM certification.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Treating every MPC4 suffix as equivalent.
Do not order solely from the words “VM600 MPC4.” The 200-510-071-113 designation identifies a specific hardware configuration. VM600 documentation and supplier references distinguish standard, separate-circuit, and safety versions. Match the complete ordering number.
⚠️ Trap #2 — Forgetting the associated I/O card.
The MPC4 is part of a VM600 card architecture. Depending on the rack configuration, the associated IOC4T/interface hardware is required for the intended field connections and system operation. Confirm what is actually installed in the rack before treating the MPC4 as a standalone replacement.
⚠️ Trap #3 — Copying alarm settings without checking the sensor configuration.
A replacement card can appear healthy while still being incorrectly configured. Verify sensor type, measurement units, channel assignment, filtering, alarm/danger thresholds, hysteresis, delays, and tachometer settings against the approved machine-protection configuration.
PRO TIP: Photograph or document the existing card’s configuration and wiring before removal. On a critical turbine or compressor train, five minutes spent recording the configuration can save hours of commissioning work.
Dynamic FAQ
Is 200-510-071-113 the MPC4 card number?
Yes. The 200-510-071-113 designation is identified in available technical listings as a Vibro-Meter VM600 MPC4 machinery protection card. It provides four dynamic channels and two tachometer/speed channels.
What is 200-510-111-034?
It is listed in connection with the VM600 MPC4 configuration and should be treated as a separate ordering designation rather than automatically assuming it is identical to 200-510-071-113. Confirm the rack’s installed card/interface arrangement and the exact replacement requirement before purchasing.
What sensors can the MPC4 monitor?
The MPC4’s programmable dynamic inputs can accommodate measurement types representing acceleration, velocity, and displacement/proximity. Its processing functions support parameters including relative and absolute vibration, eccentricity, thrust position, and housing expansion.
Can the MPC4 be replaced while the VM600 rack is operating?
Available documentation and supplier technical information describe the MPC4 as supporting live insertion/removal. Do not interpret that as permission to hot-swap blindly. Follow the site’s VM600 maintenance procedure and confirm the specific rack, safety configuration, and operating state before removing a protection card.
Is New Surplus the same as factory-new OEM stock?
No. New Surplus generally means unused inventory that may have been stored outside the manufacturer’s current distribution channel. It should not automatically be represented as current-production OEM stock. For a critical machinery-protection application, request photographs of the actual unit, complete part number, condition statement, and available test documentation.
What warranty should I expect?
Warranty terms depend on the supplier and condition category. For example, one automation supplier currently advertises a one-year warranty for its remaining parts, but that is the seller’s warranty, not an OEM warranty. For procurement, get the warranty period and return conditions in writing on the quotation.
