Product Introduction & Engineering Value
The Woodward 5501-381 is a legacy MicroNet-series hardware component used within Woodward industrial control architectures. It belongs to the field-interface side of the control system, where correct module identification and cabinet configuration are more important than simply matching physical dimensions.
For a replacement, verify the complete 5501-381 part number against the original cabinet BOM, wiring drawings, associated MicroNet CPU/I/O hardware, and hardware revision. Public documentation for this specific suffix is limited, so unsupported channel counts or electrical ratings should not be treated as confirmed specifications.
Technical Specifications
- Manufacturer: Woodward
- Part Number: 5501-381
- Product Family: MicroNet Digital Control
- Hardware Category: MicroNet field/interface hardware
- Primary Application: Turbine and engine control
- System Architecture: MicroNet modular control system
- Installation: Industrial control cabinet
- Signal Interface: Configuration-dependent
- Associated Hardware: Dependent on the installed MicroNet architecture
- Service Function: Field signal interfacing and system integration
- Replacement Basis: Exact part-number and system-configuration match
Specification caution: I would not publish a specific I/O count, voltage range, connector pinout, or output rating for 5501-381 without a verified Woodward datasheet or a clear photograph of the unit’s nameplate. Those details are frequently copied between similar MicroNet part numbers and can result in an incorrect product page.
Field Application & The “Trench” Experience
A common legacy-control replacement starts with a cabinet that has been running for years without anyone touching its original MicroNet hardware. A technician finds a suspect 5501-381, checks the spare cabinet, and discovers a visually similar Woodward module with a different suffix.
That is where the replacement should stop for identification. The technician records the complete part number, hardware revision, connector arrangement, cabinet location, and associated I/O hardware before deciding whether the spare is actually suitable. Once installed, the affected field signals are checked point-by-point before the turbine is released for startup.
Specific application scenarios include:
- Turbine auxiliary-system permissives — pump, valve, pressure-switch, and equipment-status signals.
- Steam turbine sequencing — field feedback used by startup, shutdown, and operating-state logic.
- Engine or turbine protection interfaces — hardwired status and trip-related signals within a compatible MicroNet installation.

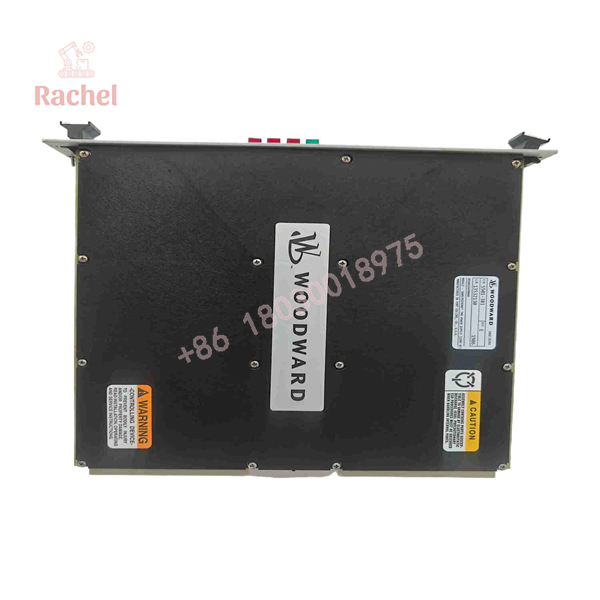

5501-381
5501-381
Transparency SOP: QA & Testing
For New Surplus or refurbished 5501-381 inventory, use a defined inspection sequence:
- Identity: Confirm the exact Woodward 5501-381 marking.
- Visual condition: Inspect PCB surfaces, connectors, housing, mounting points, and labels.
- Revision: Record hardware revision and serial information where available.
- Interface inspection: Check connectors and field interfaces for bent contacts, corrosion, or contamination.
- Functional test: Test the applicable circuits using a compatible MicroNet test setup where available.
- Documentation: Record the condition, test scope, photographs, and warranty supplied with the unit.
A supplier should clearly distinguish New Surplus, Used, and Refurbished condition. Cleaning a used module does not make it New Surplus.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming nearby 5501-series numbers are interchangeable.
They are not automatically equivalent. Match the entire part number and associated system architecture.
⚠️ Trap #2 — Copying specifications from another MicroNet module.
This is particularly dangerous for this part. Similar-looking Woodward hardware can have completely different I/O functions.
PRO TIP: Before ordering, photograph the front label and connector side of the installed 5501-381. If the seller cannot provide a matching identification photo, ask for one.
⚠️ Trap #3 — Replacing hardware without documenting field wiring.
Even when the replacement is correct, an undocumented terminal change can create an I/O commissioning problem. Photograph and label every connection before removal.
Dynamic FAQ
What is Woodward 5501-381?
The 5501-381 is a legacy Woodward MicroNet-series control-system hardware component used within compatible turbine and engine control installations.
Is 5501-381 a CPU?
It should not be identified as a CPU without reference to the specific MicroNet system documentation. It is associated with the MicroNet control hardware architecture rather than being a standalone general-purpose PLC.
What are the exact electrical specifications?
The publicly available information is insufficient to verify a complete electrical specification for 5501-381. For engineering use, confirm voltage, channel count, connector pinout, and signal type from the original Woodward documentation or the installed module.
How can I verify a replacement?
Match the complete 5501-381 part number, hardware revision, physical connector arrangement, cabinet position, and associated MicroNet modules. The system BOM is the primary reference.
Is New Surplus 5501-381 available?
Availability varies because this is legacy Woodward hardware. If purchasing New Surplus, request photographs of the actual unit, confirm that it is unused original inventory, and ask for its test/inspection record.
What warranty applies?
Warranty depends on the supplier and the unit’s condition. Confirm the warranty period and whether the unit was electrically tested before purchase.
