Woodward 5501-470 NETCON CPU_040 Processor Module

Description

Product Introduction

The Woodward 5501-470 is a NETCON CPU_040 processor module used in legacy MicroNet control systems for industrial turbine, compressor, and engine applications. The processor executes application logic, manages communication with distributed I/O modules, and maintains deterministic scan performance required for critical rotating equipment.

Unlike discrete I/O or analog interface modules, the 5501-470 is the controller responsible for program execution. It is the version supplied without LL (Long-Life) memory but fitted with an EMI filter. Before ordering a replacement, verify the complete hardware configuration because similar CPU_040 modules differ in memory options and electromagnetic compatibility features.

Key Technical Specifications

Engineering Note: Woodward also offered 5501-469, which includes LL Memory with an EMI filter. Selecting the wrong CPU variant can complicate controller replacement and application restoration.

Application Scenarios & The “Trench” Experience

A gas turbine trips unexpectedly during peak production.

Every discrete input appears normal.

Power supplies remain stable.

No field device reports a fault.

The controller simply stops executing logic.

To be honest, CPU failures are relatively uncommon compared with power supply or I/O issues. When they occur, however, production usually stops immediately because every control strategy depends on the processor.

Typical Applications

Gas Turbines — Governor control — Executes fuel control, startup sequencing, and protection logic.

Steam Turbines — Speed regulation — Processes overspeed protection and load-sharing algorithms.

Pipeline Compressors — Compressor automation — Coordinates digital and analog I/O while maintaining deterministic scan cycles.

Power Generation — Generator control — Executes auxiliary control functions and plant interlocks.

Industrial Engines — Prime mover control — Supports continuous operation in critical mechanical drive applications.

Field Replacement Example

A compressor station experienced random watchdog resets several times each week. Engineers initially replaced power supplies and communication modules without success. After downloading diagnostic logs, they identified repeated processor exceptions originating from the installed 5501-470. A verified replacement module restored stable operation after the existing application was reloaded and field I/O verification was completed.

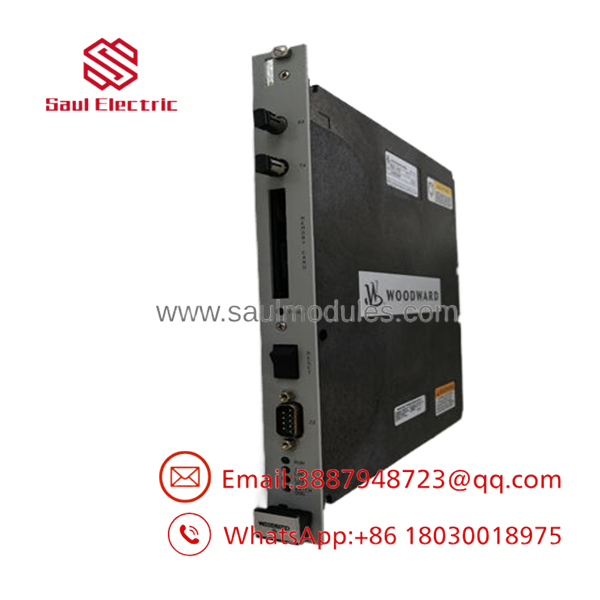

5501-470

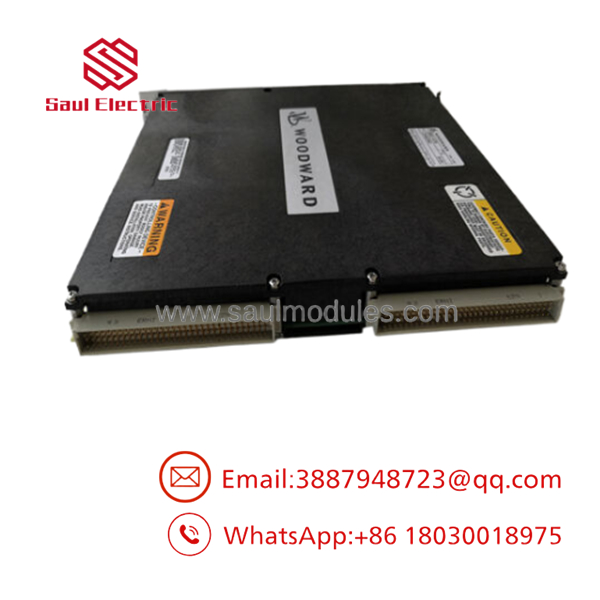

5501-470

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test processor modules on compatible Woodward hardware whenever practical.

• Inbound Inspection
  • Verify Woodward serial number and hardware revision.
  • Inspect PCB assemblies for repairs or corrosion.
  • Examine edge connectors and processor components.
• Live Rig Testing
  • Install the CPU in a compatible MicroNet chassis.
  • Verify successful boot sequence.
  • Confirm communication with installed I/O modules.
  • Execute processor diagnostics.
• Electrical Parameter Checks
  • Verify supply current.
  • Perform extended burn-in testing.
  • Monitor processor temperature and stability.
• Configuration Verification
  • Record hardware revision.
  • Verify processor identification.
  • Confirm compatibility with the customer’s control platform.
• Final QC & Packaging
  • Functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping.
  • Complete serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse the 5501-470 with the 5501-469.
The hardware appears similar, but the memory configuration differs. Always verify the complete part number before ordering.

⚠️ Back up the application before replacing the CPU.
If the controller contains the latest production logic, replacing the hardware without a verified backup can significantly extend recovery time.

❗ Inspect the power supply first.
Unexpected CPU resets often originate from unstable chassis power rather than a defective processor.

⚠️ Verify firmware and controller generation.
MicroNet systems span multiple hardware generations. Confirm CPU compatibility with the installed software and rack configuration before installation.

Frequently Asked Questions (FAQ)

Q1. What is the Woodward 5501-470?

The 5501-470 is a NETCON CPU_040 processor module used in legacy Woodward MicroNet control systems. It executes control programs and coordinates communication between the CPU and system I/O.

Q2. What is the difference between 5501-470 and 5501-469?

The 5501-470 is supplied without LL Memory and includes an EMI filter. The 5501-469 includes LL Memory in addition to the EMI filter. Always verify the installed hardware before selecting a replacement.

Q3. Is the 5501-470 still manufactured?

No. Woodward classifies this processor as a legacy/inactive product. Most available units come from surplus inventory or professionally tested refurbishment channels.

Q4. Can the CPU be replaced while the controller is energized?

No. Removing the processor with power applied can immediately stop program execution and interrupt turbine or compressor control. Isolate power and follow Woodward maintenance procedures before replacement.

Q5. Does replacing the CPU require reloading the application?

Usually, yes. Unless the replacement module already contains the validated application and configuration, the controller program should be restored from a verified engineering backup before returning the equipment to service.

Q6. Why are these processor modules still in demand?

Many industrial gas turbines, steam turbines, compressors, and engine control systems continue operating on legacy MicroNet platforms. Maintaining qualified spare CPU modules is often substantially less expensive than replacing an entire control system.

Q7. What should be verified before installation?

Verify the 5501-470 part number, CPU hardware revision, software compatibility, rack location, application backup, power supply condition, and communication with all installed I/O modules. After installation, perform a complete functional test of startup logic, shutdown protection, communications, and field I/O before returning the machine to operation.
