Woodward 8237-1597 ProTech-GII Overspeed Protector

Product Introduction & Engineering Value

A turbine overspeed protection system has one job that cannot be treated as an ordinary control-loop function: detect an unsafe acceleration condition and initiate the appropriate shutdown action. The Woodward 8237-1597 ProTech-GII provides this dedicated protection function through three independent internal modules and 2-out-of-3 voting architecture.

The HV/HV bulkhead configuration is intended for installations requiring high-voltage power inputs and voted relay outputs. For plants maintaining existing ProTech-GII equipment, the exact part number and revision matter because Woodward has subsequently introduced 8237-2597 as the preferred successor to 8237-1597.

Technical Specifications

The model configuration and three-module architecture are documented by Woodward; dimensional, enclosure, power, temperature, and display specifications are also reported in technical equipment documentation for this exact part number.

Important lifecycle note: 8237-1597 is a non-preferred Woodward part number. Woodward’s Product Change Notification identifies 8237-2597 as the newer preferred model for the same HV/HV bulkhead-mounted voted-relay configuration. Existing 8237-1597 units remain relevant for installed systems and spare-part requirements.

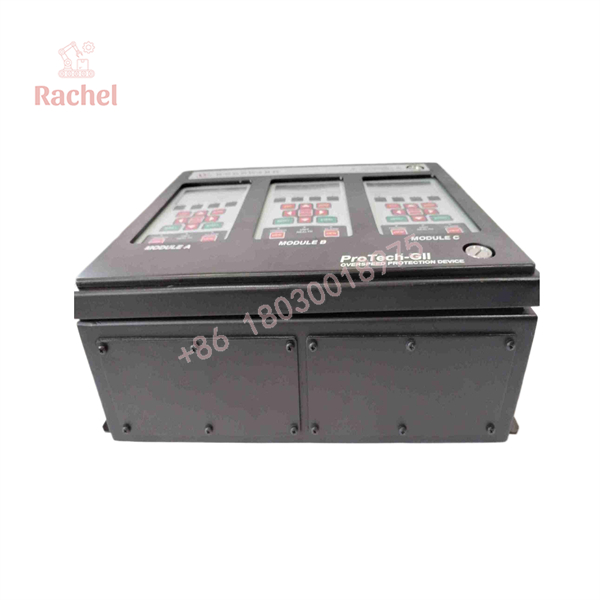

8237-1597

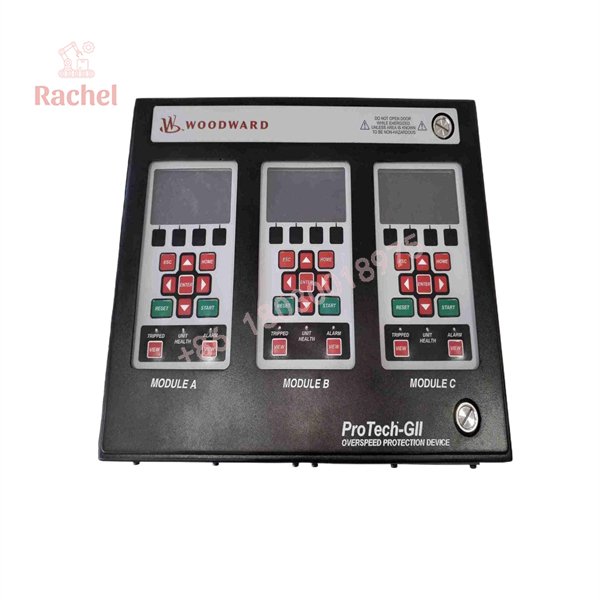

8237-1597

Field Application & the “Trench” Experience

A common replacement scenario is a turbine control cabinet that has been operating for years with a ProTech-GII overspeed protection system. During a planned outage, the maintenance team discovers that one protection unit has developed a hardware fault. The temptation is to order the newest-looking part number and install it without further investigation.

That is where the 8237-1597 requires more attention than a conventional I/O module. The replacement must match the HV/HV configuration, bulkhead mounting arrangement, voted relay architecture, and applicable hardware/software revision. Woodward specifically documents conversion rules between older and newer ProTech-GII models.

Specific application scenarios

• Steam turbine overspeed protection: Dedicated protection around a turbine where the normal governor and the independent overspeed system perform separate safety functions.
• Gas turbine speed protection: Three-channel speed monitoring and voting for shutdown logic where a single erroneous channel should not independently cause the protective decision.
• Hydro turbine protection: Independent overspeed detection for rotating equipment where excessive acceleration can require rapid turbine shutdown.

The ProTech-GII family is designed for turbine and other rotating-equipment overspeed protection rather than ordinary process-control sequencing.

Transparency SOP: QA & Testing

For a New Surplus or refurbished 8237-1597, the useful question is not simply whether the enclosure powers up. A meaningful incoming inspection should address the complete protection assembly.

1. Part-number verification — Confirm the nameplate reads Woodward 8237-1597 and verify the hardware revision and configuration against the required system.
2. Physical inspection — Check the enclosure, terminals, connectors, displays, mounting points, and accessible internal assemblies for shipping damage, corrosion, contamination, or unauthorized modification.
3. Power verification — Confirm the intended supply arrangement before energizing the unit. The 8237-1597 has documented HV/HV configuration requirements.
4. Functional evaluation — Where the appropriate Woodward test equipment and procedures are available, verify module operation, display behavior, configuration, input processing, voting behavior, and relay functions.
5. Configuration review — Compare the replacement unit’s configuration with the plant’s approved protection settings before commissioning.

Woodward documentation states that its ProTech Service Tool is compatible with old and new ProTech-GII models, and that configuration files from older models can be loaded into newer models under the documented conversion framework.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating 8237-1597 and 8237-2597 as automatically interchangeable

They represent the same general HV/HV bulkhead/voted-relay configuration, but Woodward formally identifies 8237-2597 as the preferred newer model. Do not treat a part-number substitution as a plug-and-play approval without checking the unit revision, configuration, and plant documentation.

⚠️ Trap #2 — Ignoring the Rev. D conversion boundary

Woodward states that Field Software Conversion Kit 8929-039 can convert 8237-1597 units at Rev. D or later under the documented compatibility conditions. Units older than Rev. D require factory conversion rather than assuming the field kit applies.

⚠️ Trap #3 — Loading configuration without checking direction of compatibility

Woodward explicitly notes that configuration files from older ProTech-GII models can be loaded into new models, while configuration files from new models cannot be loaded into older models. That distinction matters during a replacement or retrofit.

PRO TIP: Record the existing unit’s complete part number, revision, configuration, and configuration-file version before removing it. For an overspeed protection system, the configuration record is part of the replacement work—not an afterthought.

Dynamic FAQ

What is Woodward 8237-1597?

8237-1597 is a Woodward ProTech-GII overspeed protection device configured for bulkhead mounting, HV/HV operation, voted relays, and voted inputs. It uses three independent internal modules with voting architecture for turbine and rotating-equipment protection.

Is 8237-1597 still available from Woodward?

Woodward identifies 8237-1597 as a non-preferred model and lists 8237-2597 as the newer preferred part number for the corresponding HV/HV bulkhead-mounted voted-relay configuration. Existing 8237-1597 units remain relevant for installed equipment and spare requirements.

Can 8237-2597 replace 8237-1597?

Woodward documents 8237-2597 as the newer model corresponding to 8237-1597. However, replacement should be verified against the existing unit’s revision and configuration rather than treated as an unconditional field substitution. Rev. D or later units have a documented field-conversion path using kit 8929-039.

What does “voted relays” mean on this model?

The 8237-1597 uses a three-module architecture with voting logic. The purpose is to allow the protection system to make its shutdown decision using the configured voting arrangement rather than relying on a single internal channel.

What should I verify before purchasing a New Surplus 8237-1597?

At minimum, verify the exact part number, hardware revision, HV/HV configuration, physical condition, configuration status, and test documentation. For a used or New Surplus unit, request clear nameplate photographs and available test records before committing it to a critical protection application.

What warranty should I expect on a New Surplus unit?

Warranty terms depend on the supplier and the specific unit condition. A supplier should state the warranty period in writing and distinguish New Surplus, refurbished, repaired, and used condition. Do not treat the phrase “new” by itself as evidence that the unit has been recently manufactured or remains a current Woodward production part.

Procurement note: For an installed ProTech-GII system, the safest purchasing specification is the complete Woodward part number 8237-1597 + hardware revision + required configuration, rather than the base number alone. Woodward’s own lifecycle documentation should be checked when determining whether an existing installation should remain on 8237-1597 or be converted to 8237-2597.
