Woodward 8440-2047 Marine Generator Controller easYgen-3500

Description

Product Introduction & Engineering Value

The Woodward 8440-2047 is a marine-configured easYgen-3500 controller for generator-set automation, synchronization, monitoring, and protection. The P1-MARINE configuration adapts the easYgen-3500 platform to marine power-generation installations where classification requirements and generator control functions have to be considered together.

The most important identification details are the 5 A CT configuration and the marine approval package. It should not be confused with the standard easYgen-3500 P1 controller 8440-1934, or with the 1 A marine version 8440-2046. Woodward assigns different part numbers to these configurations.

Technical Specifications

A third-party technical listing reports a 12/24 VDC supply with an 8–40 VDC operating range, Class 0.5 measurement accuracy, and a front-panel size of approximately 282 × 216 × 96 mm. These figures should be treated as secondary-source data and checked against the applicable Woodward 37533 documentation before being used for engineering acceptance.

Field Application & “Trench” Experience

The 8440-2047 is suited to marine generator systems where the controller must coordinate generator operation with the vessel’s electrical distribution system. Typical functions include automatic generator starting and stopping, synchronization, breaker management, electrical measurement, protection, and load-related control.

A common retrofit problem is selecting a controller based only on the easYgen-3500 family name. The marine variant carries a different part number because certification and application requirements matter. Woodward’s catalog separates the marine P1 package from the standard P1 and P2 packages.

Typical application scenarios

• Marine diesel generator sets
• Shipboard auxiliary power systems
• Offshore vessel generator systems
• Marine standby and emergency generator systems
• Multi-generator shipboard power systems
• Existing marine panels requiring replacement of an easYgen controller

For procurement, the original controller’s part number, CT rating, classification requirements, software/revision information, and panel wiring should be checked together.

8440-2047

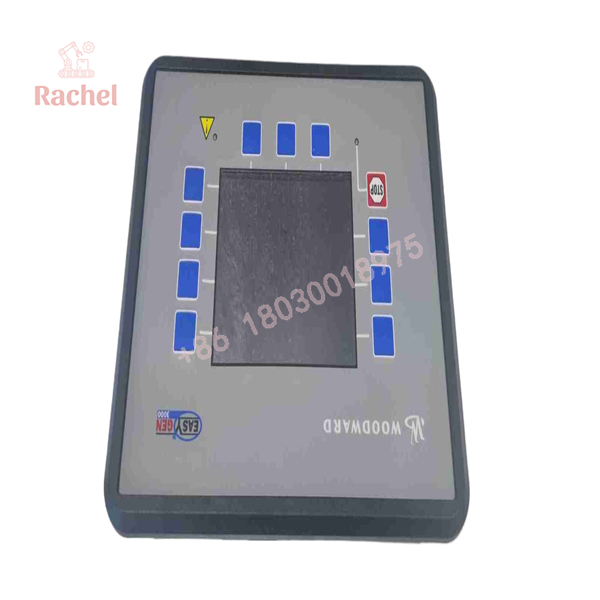

8440-2047

Transparency SOP: QA & Testing

New / New Surplus Inspection

For a New Surplus 8440-2047, verify:

• Woodward nameplate
• Part number 8440-2047
• easYgen-3500-5/P1-MARINE designation
• 5 A CT configuration
• Hardware revision
• Serial number
• Display and keypad condition
• Terminal and connector condition
• Mounting hardware
• Storage and packaging condition

The Woodward product-history system recommends using the product label’s serial number and part number when checking product information, maintenance, service, or upgrade data.

Functional Testing

A proper bench or system test should include:

1. DC power-up and initialization
2. HMI/display operation
3. Generator voltage measurement
4. Generator current measurement
5. Frequency measurement
6. Digital input response
7. Digital output/relay operation
8. Synchronization functions
9. Breaker control and feedback
10. Alarm and shutdown functions
11. Parameter retention
12. Communication interfaces where used

For marine applications, electrical testing alone is not enough. The unit’s classification-specific configuration and certification identification should also be checked.

Veteran’s Tech Trap Guide

Trap 1 — Confusing 8440-2047 with 8440-2046

These are both easYgen-3500 Marine P1 controllers, but 8440-2047 is the 5 A version, while 8440-2046 is the 1 A version.

Pro tip: Check the CT secondary rating before ordering. Do not substitute a 1 A controller for a 5 A application without an engineered solution.

Trap 2 — Using the standard 8440-1934 in a marine-certified application

The standard easYgen-3500 P1 is listed as 8440-1934, while the marine 5 A P1 version is 8440-2047. The marine part carries the additional BV/DNV certification designation.

Pro tip: If the original panel documentation specifies marine classification, match the marine part number rather than treating certification as a cosmetic difference.

Trap 3 — Confusing P1-MARINE with P2

The 8440-2047 is P1-MARINE. It is not the same package designation as the standard 8440-1936 P2 controller discussed earlier. Woodward’s catalog separates these package configurations.

Pro tip: Compare the required I/O and breaker architecture before selecting a replacement.

Trap 4 — Ignoring display revision history

Woodward has documented a display-contrast issue affecting multiple easYgen-3000 part numbers, including 8440-2047. The bulletin states that repeated power cycling could affect display contrast while not affecting other functionality.

Pro tip: When buying used or surplus stock, inspect the display under normal operating conditions and record the hardware/revision information.

Dynamic FAQ

Q1: What is Woodward 8440-2047?
It is the easYgen-3500-5/P1-MARINE genset controller with a 5 A CT input configuration and additional BV and DNV marine approvals.

Q2: What is the difference between 8440-2047 and 8440-2046?
Both are easYgen-3500 Marine P1 controllers. 8440-2047 uses 5 A current inputs, while 8440-2046 uses 1 A current inputs.

Q3: What documentation applies to 8440-2047?
Woodward lists Product Specification 37533 and Manual 37531 for the easYgen-3400/3500 Marine P1 family.

Q4: Is 8440-2047 suitable for marine generator applications?
Yes. It is specifically identified by Woodward as the easYgen-3500-5/P1-MARINE package with additional BV and DNV certification.

Q5: Can 8440-1934 replace 8440-2047 directly?
It should not be treated as a direct equivalent solely from the model name. 8440-1934 is the standard easYgen-3500 P1 5 A version, whereas 8440-2047 is the marine P1 version with additional classification approvals.

Q6: What should be checked when buying a New Surplus 8440-2047?
Verify the complete part number, easYgen-3500-5/P1-MARINE designation, 5 A CT configuration, nameplate/revision information, physical condition, and marine certification markings. For a vessel installation, compare the unit against the vessel’s approved control-system documentation before installation.

Q7: Can the 8440-2047 settings be transferred to another easYgen-3000 controller?
Woodward notes that settings files can be shared across various easYgen-3000 part numbers and revisions, but parameters may be added or removed between versions. Commonly numbered parameters can transfer, while new parameters must be updated manually.

Q8: What is the main procurement detail for 8440-2047?
The three details that should be matched first are easYgen-3500-5/P1-MARINE, 5 A CT input, and the required BV/DNV marine certification. Those distinguish it from several visually similar easYgen-3000 controllers.
