Product Introduction

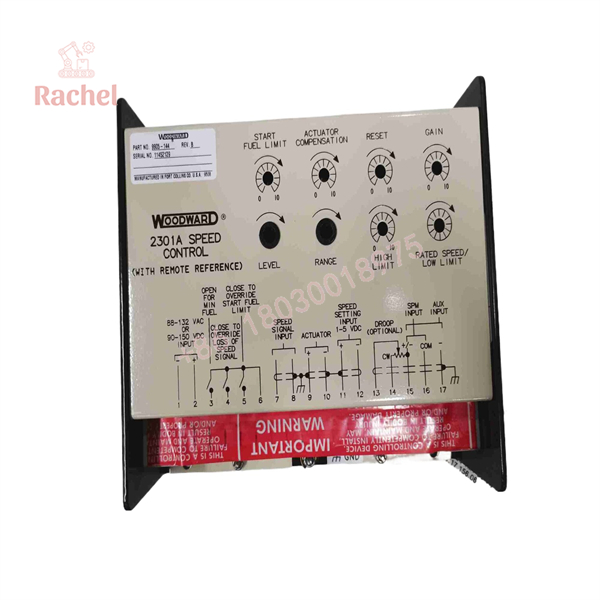

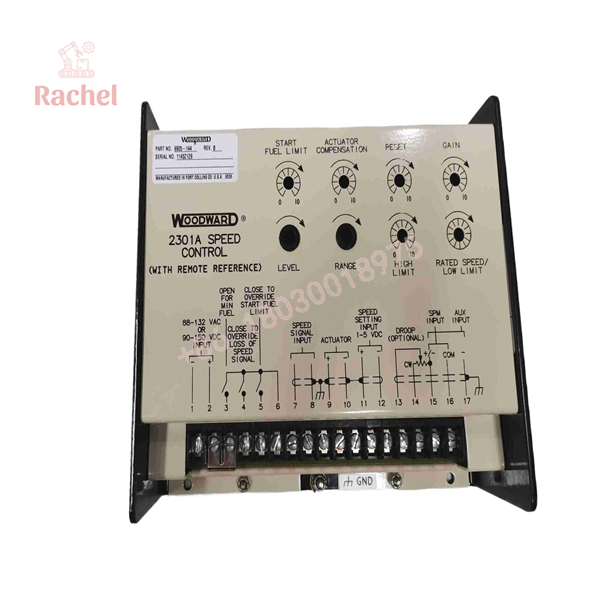

The Woodward 9905-144 is an industrial electronic speed governor from the classic 2301A Load Sharing and Speed Control series. Designed for prime movers such as diesel engines, gas engines, and steam turbines driving mechanical loads or electric generators, it controls actuator positioning to maintain tight frequency regulation under dynamic load shifts.
Operating on a 24 VDC power supply, the 9905-144 features a forward-acting output signal compatible with low-impedance Woodward actuators (such as the EG, EGB, or ProAct series). It supports both standalone Isochronous speed control and Droop mode for paralleling multiple generator sets onto a common bus.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Woodward |
| Part Number | 9905-144 |
| Control Series | 2301A Load Sharing & Speed Control |
| Operating Voltage | 20 to 32 VDC (24 VDC Nominal) |
| Output Type | Forward Acting (0 to 200 mA actuator drive signal) |
| Control Modes | Isochronous or Droop (Selectable via terminal links) |
| Speed Sensor Input | Magnetic Pickup (MPU) 1.5 to 30 Vrms |
| Speed Range | Adjusts across 50 Hz, 60 Hz, and variable speed setups |
| Ambient Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Mounting | Sheet-metal chassis mounting with surface flange |
Application Scenarios & The “Trench” Experience
During a emergency grid blackout, a critical hospital backup generator failed to synchronize onto the emergency bus due to severe speed hunting on the legacy governor. The original speed control board had suffering potentiometer drift and deadband decay from years of thermal stress. Swapping in a pre-calibrated Woodward 9905-144 control, connecting the 24V bus and MPU leads, and setting the gain/stability trims restored stable 60Hz frequency control in under 20 minutes, allowing the generator to pick up site emergency loads smoothly.
Target Applications:
- Emergency Standby Generators: Providing high-speed governor response for diesel and gas engines powering emergency power systems.
- Parallel Generator Skids: Balancing kilowatt load sharing between multiple prime movers operating on an isolated or utility-tied bus.
- Industrial Steam Turbines: Controlling governor valves on mechanical drive turbines driving pumps and compressors.
9905-144
9905-144
Transparency SOP: Quality Assurance & Testing
Governor hardware requires exact calibration before entering service. Every Woodward 9905-144 unit completes a full bench-testing loop prior to shipment:
- Inbound Mechanical Inspection: Inspection of terminal block screws, potentiometer pots, chassis metalwork, and conformal coating.
- Power Supply & Component Check: Verifying 24 VDC internal power regulation, zener diode protection, and ripple suppression.
- Signal Generator Bench Test: Simulating Magnetic Pickup (MPU) frequency inputs across low, nominal, and overspeed thresholds to verify speed signal processing.
- Actuator Drive Loop Test: Connecting a simulated 0–200 mA actuator load to verify dynamic Gain, Stability, and Reset potentiometer adjustments under step-change inputs.
- Anti-Static Protective Packaging: Cleaned, sealed in static-shielding bags, and packaged in high-density protective foam containers.
The Veteran’s Tech Trap Guide
- ⚠️ Confirm whether you need Forward Acting or Reverse Acting! The 9905-144 is a Forward Acting control (increasing speed signal increases actuator current). Installing a forward-acting unit in place of a reverse-acting system (e.g., fuel-to-close) will cause the engine to runaway to overspeed upon power-up.
- ❗ Shield your Magnetic Pickup (MPU) wiring. Always use twisted-shielded cable for the MPU speed signal leads, grounding the shield at the control chassis end only. Unshielded MPU lines will pick up electrical noise from battery chargers or alternators, resulting in speed jitters and actuator hunting.
- ⚠️ Set Gain and Stability potentiometers before cranking. Before starting the engine with a replacement 9905-144, turn the Gain and Stability pots to mid-position (50%). Starting with Gain turned all the way up will cause violent actuator oscillations and engine surging upon start.
- ❗ Check for grounded actuator wiring. Ensure neither side of the actuator output circuit is shorted to battery ground. A grounded actuator lead will damage the internal output driver transistors on the board.
Frequently Asked Questions
Q: What is the main difference between a Woodward 2301A High Voltage and Low Voltage control?
A: Low-voltage units like the 9905-144 operate on 20–32 VDC battery supplies. High-voltage 2301A models operate on 85–132 VAC / 90–150 VDC utility feeds. Always match input voltage ratings to avoid destroying internal power components.
Q: Can I use the 9905-144 for both single generator units and parallel installations?
A: Yes. The 9905-144 supports Isochronous mode for standalone units, as well as Droop mode and active load sharing (when connected to compatible Woodward load sharing lines) for parallel generator operation.
Q: What actuator types can the 9905-144 drive directly?
A: It is designed to drive standard 0–200 mA analog actuators, including the Woodward EG-3P, EG-6P, EGB, and ProAct series.
Q: How do I select between Isochronous and Droop mode?
A: Mode selection is made via external terminal connections. Opening or closing specified jumper terminals on the board switches the control between Isochronous (constant speed regardless of load) and Droop (speed drops proportionally with load).
Q: What warranty is provided on surplus Woodward 9905-144 modules?
A: All inspected, bench-tested surplus and reconditioned 9905-144 speed controls include a full 12-month replacement warranty.
