Woodward 9907-019 Speed Governor Controller

Description

Product Introduction

The Woodward 9907-019 is a field-proven 505 digital governor controller engineered specifically for controlling single-actuator or single-automatic extraction steam turbines. Built to manage critical speed governing, overspeed protection, and load control, this standalone unit processes magnetic pickup (MPU) signals and executes real-time PID algorithms to drive electro-hydraulic turbine actuators. It acts as the primary brain for maintaining precise rotor speed under varying electrical or mechanical plant loads.

Unlike generalized PLCs that require complex custom programming for steam applications, the 9907-019 features field-configurable menu-driven software optimized directly for steam turbine dynamics. Its rugged front-panel display and keypad allow engineers to set critical parameters—such as critical speed avoidance bands, valve limiters, and start-up ramps—directly at the turbine skid. With built-in fault detection and redundant speed sensor inputs, it protects expensive turbomachinery from destructive overspeed events.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:15 AM at a chemical processing plant during a storm. Lightning strikes the grid, causing a sudden loss of electrical load while a critical 5 MW steam turbine drive is running full tilt. The legacy 9907-019 controller on the skid experiences a power supply board failure, losing speed feedback tracking and causing the trip valve to slam shut. The boiler steam header pressure spikes, and the plant faces a complete process shutdown costing $60,000 an hour. Having a pre-configured, tested 9907-019 replacement module ready to drop into the panel door gets the steam drive back under automated governor control in under 30 minutes.

• Refinery Mechanical Drive Turbines: Governing speed on boiler feed pumps, compressors, and induced draft fans.
• Paper Mill & Textile Steam Skids: Maintaining tight speed regulation for industrial backpressure steam turbines.
• Combined Heat and Power (CHP) Facilities: Managing steam turbine generators tied to local distribution grids.
• Marine Steam Propulsion Auxiliaries: Regulating auxiliary turbo-generators and main feed pump turbines.

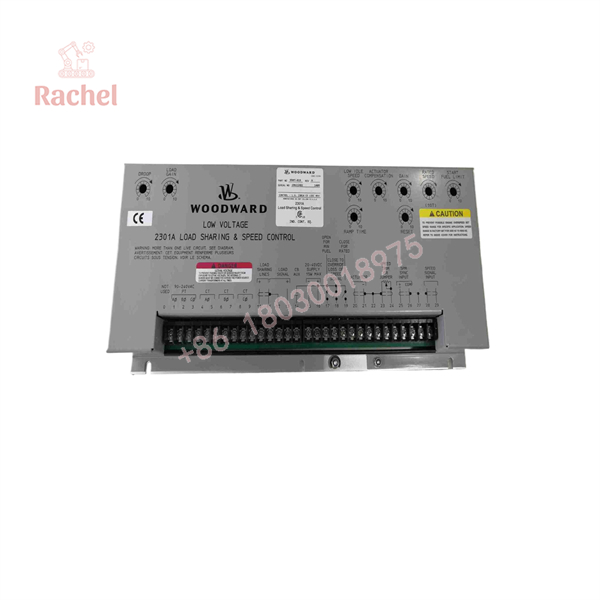

9907-019

Transparency SOP: Quality Assurance & Testing

We understand that turbine governors are safety-critical components. Every Woodward 9907-019 controller undergoes a strict testing regimen:

1. Inbound Visual & Hardware Inspection: We check for keypad membrane integrity, display screen condition, terminal block wear, and OEM serial seal authenticity.
2. Power Bench Test & Boot Sequence: The controller is powered up via a regulated 24 VDC supply to verify internal power rail voltages, boot ROM code execution, and backlight display operation.
3. Dual-Channel Frequency Injection Test: Using dual precision signal generators, we simulate 0–15 kHz MPU speed signals to verify frequency measurement accuracy, speed loop response, and overspeed trip logic execution.
4. I/O & Actuator Current Loop Calibration: All 4–20 mA analog inputs and output actuator driver channels are swept from 4 mA to 20 mA to verify loop linearity and valve position calibration.
5. Relay Contact & Modbus Handshake Checks: Every output relay contact is cycled under electrical load, and serial communication ports are tested with a Modbus tester to confirm register read/write stability.

The Veteran’s Tech Trap Guide

• ⚠️ Back Up Your Configuration Architecture First: Before disconnecting a dead or malfunctioning 9907-019 unit, write down every single program parameter from the front panel display (or extract via Woodward Watch Window / ServLink). Drop-in replacement units will NOT work until the exact speed ramps, PID gains, and valve curves are entered.
• ❗ Never Disconnect MPU Shielding at Both Ends: Connect the speed sensor cable shield to the designated ground terminal on the 9907-019 unit ONLY. Grounding both ends creates a ground loop that introduces high-frequency noise, causing false overspeed trips or speed jitter.
• ⚠️ Confirm Voltage Range Requirements: The 9907-019 model is designed for 18–32 VDC power. Do NOT apply 120/240 VAC mains voltage directly to the power terminals unless an external high-voltage power supply option is fitted, or you will instantly blow the internal fuse and power rail components.
• ❗ Verify Hand-Off To Overspeed Trip Systems: The 505 controller contains software overspeed protection, but it should NEVER be used as the sole overspeed safety device. Always ensure a separate, independent mechanical or electronic trip system (like a Woodward ProAct or Peak 150) is functional before starting the turbine.

Frequently Asked Questions

Q: Can I replace a Woodward 9907-019 with a newer 505D unit?

A: Yes, but it requires wiring modifications and panel mechanical cut-out changes. The newer 505D models have a different footprint and updated wiring harness configurations. Keeping an exact 9907-019 unit on hand allows a direct 1-to-1 swap without redesigning your control panel door or field wiring.

Q: How do I clear an overspeed trip lockout on the front panel?

A: Once the turbine speed drops below the reset threshold, press the RESET key on the front keypad or trigger the configured discrete “Remote Reset” contact input.

Q: What should I do if the display shows a “Speed Sensor Fault”?

A: Check the passive magnetic pickup (MPU) resistance at the field terminals (typically 50–300 Ω). If the MPU is intact, check the gap between the gear teeth and sensor tip, or measure the AC voltage output (must be greater than 1.0 Vrms at cranking speed).

Q: Does this unit support Modbus communication for SCADA integration?

A: Yes. The 9907-019 includes built-in serial ports configured for Modbus RTU protocol, allowing full remote monitoring of turbine speed, valve position, operational states, and alarm logs.

Q: What warranty is provided with surplus or refurbished 9907-019 modules?

A: Every unit supplied carries a comprehensive 12-month operational warranty covering full hardware and functional performance.
