Description
Product Introduction & Engineering Value
Imagine the frustration of dropping a replacement governor board into a critical multi-engine panel only to realize your localized control transformer loop outputs 115 VAC, while your spare parts box only contains 24 VDC modules. The Woodward 9907-028 solves this exact high-voltage infrastructure constraint, carrying an onboard universal AC/DC internal power transformer designed to run directly off plant switchgear busses without external step-down hardware.
This module is a staple in older utility-backed processing facilities because its heavy duty input stage tolerates significant line sag and transient surges without dropping the actuator output signal. By handling the core speed calculations on a high-voltage backplane, it completely separates sensitive magnetic pickup (MPU) signals from the noisy industrial grid environment.
Technical Specifications
Because this 2301A variant operates across high internal potentials and interfaces with standard current transformers, its core parameters are best mapped through detailed, bolded specification boundaries:
- Mains Input Power Compatibility: Accepts 85 to 250 VAC (at 50 to 400 Hz) or 90 to 150 VDC line feeds directly.
- Actuator Output Reach: Pure 0 to 160 mA continuous DC loop current matched for standard 30 to 35 ohm internal terminal coils.
- MPU Frequency Threshold: Minimum 1.0 VAC RMS pickup sensitivity capable of sorting engine pulse frequencies up to 25,000 Hz.
- Generator CT Feedback: Rated for standard industrial 0 to 5.0 Amp secondary transformer configurations across active phases.
- Load Sharing Loop Interface: Differential ±4.5 VDC load-sharing line matching standard legacy analog parallels.
- Proportional Gain Range: Linear adjustment potentiometer capable of shifting response ratios over a 10-to-1 dynamic window.
- Environmental Temperature Limit: Fully operational across an open ambient range of -40 to +70 degrees Celsius.
- Physical Enclosure Protection: Sheet metal backplane with conformal coated internal PCB layers to resist sulfur haze and moisture tracking.
Field Application & The “Trench” Experience
We were dispatched to an aging municipal water pumping station where the main backup generator—a massive 16-cylinder diesel block—would trip on overspeed whenever the main line pumps disconnected from the utility grid. The existing governor board could not handle the sudden off-load surge because its low-voltage power supply was dipping below its operating threshold under the inductive snap-back. We replaced the old unit with a high-voltage 9907-028, landing a direct 115 VAC control line right onto the main terminals. After dial-tuning the Actuator Compensation potentiometer to damp out the fuel rack’s natural frequency, we performed a full-load drop. The engine recovered within 400 milliseconds, holding a tight speed profile without overspeeding.
- Municipal Water Plant Pumping Units: Managing islanded backup diesel blocks with direct AC line control infrastructure.
- Remote Mining Utility Synchronizers: Governing heavy mechanical load transitions where 24 VDC batteries are impractical or unavailable.
- Paper Mill Steam Turbine Governors: Driving specialized high-impedance steam valve actuators using dedicated local high-voltage rails.

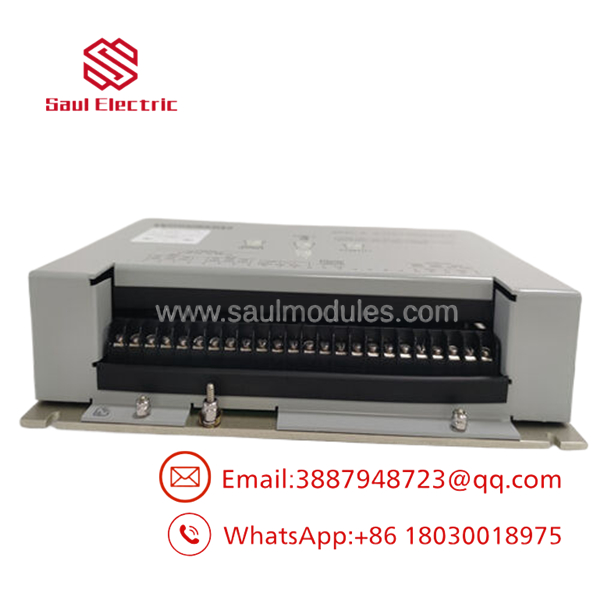

- 9907-028

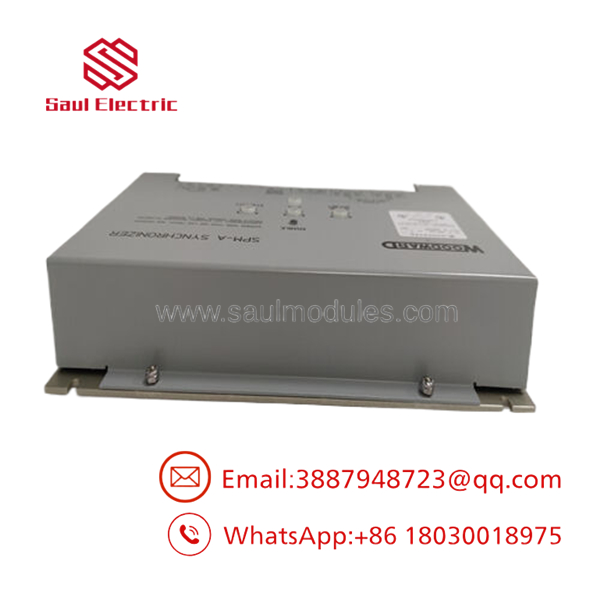

- 9907-028
Transparency SOP: QA & Testing
Our test-bench validation protocol treats the 9907-028 with strict precision before it leaves the dock:
[Visual QC Check] -> Structural inspect of high-potential barriers & pot screws.
|
[Mains Voltage Test] -> Hook up unit to a variable 230 VAC line to verify power rail stability.
|
[Signal Simulation] -> Inject a 10 kHz MPU signal to confirm frequency tracking accuracy.
|
[Dynamic Loop Test] -> Load the 160 mA actuator output against a 35-ohm dummy load for 4 hours.
|
[Hi-Pot Isolation] -> Run a 1,500 VAC dielectric test to ensure zero leakage to the chassis.
The Veteran’s Tech Trap Guide
⚠️ THE HIGH-VOLTAGE BLOWOUT RISK: Never confuse the terminal groupings on the 9907-028. Because this chassis shares the same physical footprint as low-voltage versions like the 9907-018, landing a 230 VAC power line onto an adjacent input terminal meant for a low-current 5A CT circuit will instantly vaporize the board’s internal tracing and ruin the entire controller.
PRO TIP: When dealing with engines that sit idle for long periods in humid rooms, the top-mounted potentiometers can build up a fine layer of surface oxidation. Before powering up the machine for commissioning, gently rotate each pot screw back and forth three full times to scrape the contact surface clean, then return it exactly to your original tuning mark.
Dynamic FAQ
- Q: Does this high-voltage 9907-028 require an external auxiliary 24 VDC battery supply to boot up?
- A: No. The unit is completely self-contained and boots its internal logic directly from your incoming 115/230 VAC or high-voltage DC lines.
- Q: Can I use this specific module to drive a 0 to 20 or 4 to 20 mA digital current valve actuator?
- A: Not directly. The 9907-028 outputs a 0 to 160 mA signal optimized for proportional hydraulic actuators. To drive a 4-20 mA loop, you must run the signal through a Woodward current-converter box.
- Q: How do I select between 115 VAC and 230 VAC input modes on the terminal block?
- A: Voltage ranges are determined by your physical jumper connections on the main terminal strip. Be sure to reference the wiring diagram printed on the faceplate before closing the line breaker.
- Q: Are these high-voltage units backed by a warranty since they are often used for legacy retrofits?
- A: Absolutely. Every single certified New Surplus or Refurbished 9907-028 module includes our full 1-year operational replacement warranty, complete with signed validation reports from our testing lab.
