Description
Product Introduction
The Woodward 9907-029 is a dedicated 505E digital governor controller engineered specifically for industrial steam turbines featuring automatic extraction or admission functions. Unlike standard single-actuator controls, this unit manages complex decoupling algorithms to regulate turbine speed/load and extraction header pressure simultaneously. It drives two independent hydraulic valve actuators (HP valve and extraction valve) to maintain steady electrical output even when plant process steam demands swing wildly.
Operating as a standalone panel-mounted brain, the 9907-029 eliminates the need for expensive custom PLC ladder logic to handle non-linear steam map decoupling. Its operator keypad and protective housing allow field engineers to tune PID loops, adjust critical speed avoidance bands, and configure valve ratio limits right on the turbine skid. With redundant speed sensor inputs and integrated trip logic, it delivers tight speed governing while safeguarding heavy rotating assets against overspeed conditions.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Woodward |
| Part Number | 9907-029 |
| Control Family | 505E Digital Speed & Extraction Control |
| Power Supply Input | 18 to 32 VDC (High Voltage option available on select sub-variants) |
| Speed Sensor Inputs | 2 Independent Passive MPU or Active Proximity Probe Channels (1 Hz to 15 kHz) |
| Analog Inputs | 6 Configurable Channels (4–20 mA, extraction pressure, remote speed setpoint, cascade) |
| Analog / Actuator Outputs | 2 Dedicated Actuator Drivers (4–20 mA / 0–200 mA) + 4 Configurable Readout Outputs |
| Discrete Inputs | 16 Optically Isolated Contact Inputs (Internal 24 VDC supply) |
| Discrete Relay Outputs | 8 Form C Relays (Rated 5 A @ 28 VDC / 250 VAC) |
| Communication Ports | Dual RS-232 / RS-422 / RS-485 Serial Ports supporting Modbus RTU |
| Operating Temperature | -20°C to +60°C ambient enclosure range |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:45 AM at a paper mill. A sudden pressure spike on the main steam header trips an upstream pressure regulator, forcing the steam turbine’s extraction valve to hunt violently. The aging 9907-029 controller on the panel door experiences an analog input staging failure, causing the HP valve and extraction valve to cross-decouple incorrectly. Turbine speed surges toward the trip limit, threatening a full plant power blackout that costs $70,000 an hour. Swapping in a pre-tested 9907-029 spare module and reloading the site configuration matrix gets both valve actuators re-stabilized before the boiler trips.
- Paper & Pulp Mills: Controlling extraction steam headers supplying paper drying rolls while maintaining generator grid synchronization.
- Petrochemical & Refinery Facilities: Managing admission/extraction steam drives for large process gas compressors.
- District Heating Cogeneration Plants: Regulating heating steam export lines while balancing electrical output on backpressure steam turbines.
- Chemical Plant Utility Skids: Handling automated steam header pressure control across multi-stage drive turbines.

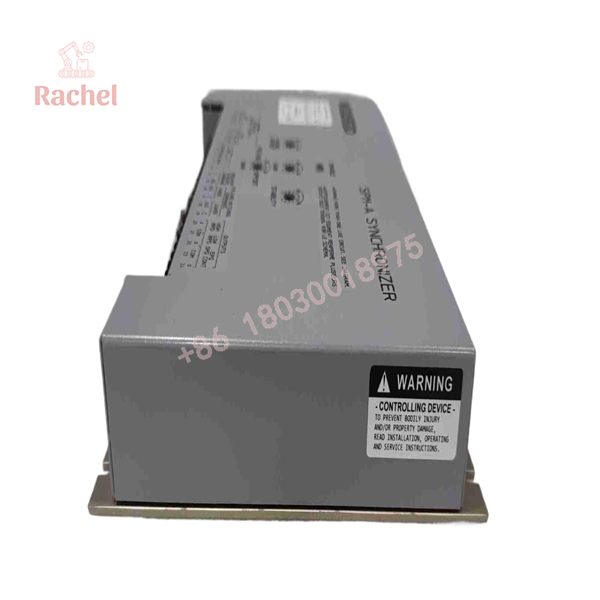

9907-029

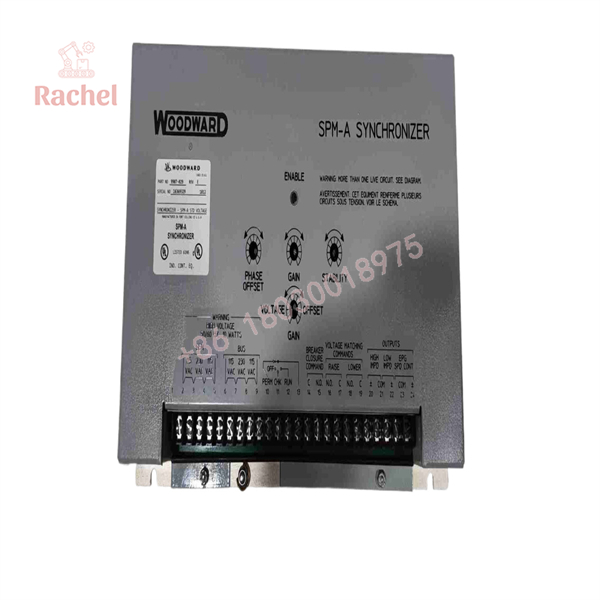

9907-029

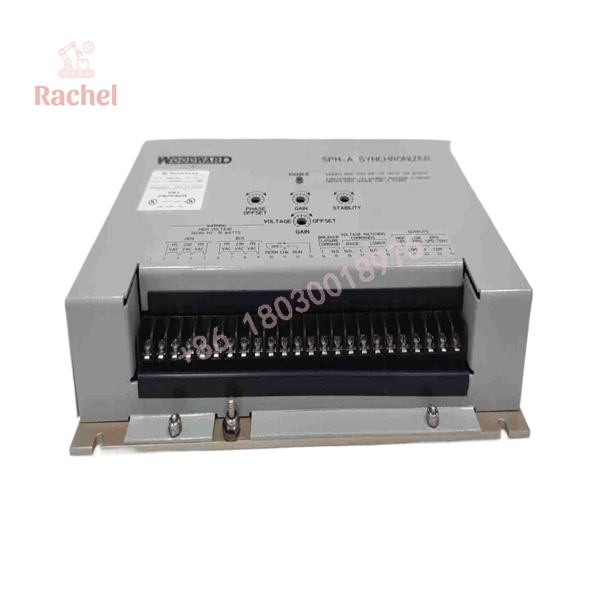

9907-029
Transparency SOP: Quality Assurance & Testing
We recognize that turbine governors are safety-critical assets. Every Woodward 9907-029 unit undergoes a rigorous multi-step bench verification process before shipment:
- Inbound Visual & Hardware Audit: We inspect front panel membrane keypads, display backlights, rear terminal strip headers, and OEM serial tags for wear or thermal fatigue.
- Power-On & Internal Rail Check: The unit is powered up on a regulated 24 VDC test bench to check current draw, internal DC-DC converter stability, and bootloader execution.
- Dual-Frequency MPU Signal Injection: Using precision signal generators, we feed dual 0–15 kHz pulse signals into the MPU channels to verify speed measurement linearity and overspeed trip circuit response times.
- Decoupling Algorithm & Dual Actuator Loop Sweep: We drive both 4–20 mA actuator output channels across their full span while simulating shifting speed and extraction pressure inputs to ensure proper 505E steam map matrix tracking.
- Relay Load & Serial Modbus Verification: Every output relay contact is load-tested, and serial ports are polled using a Modbus analyzer to confirm register read/write integrity.
The Veteran’s Tech Trap Guide
- ⚠️ Do NOT Mix Up 505 and 505E Program Maps: The 9907-029 is a 505E (Extraction) controller. Do not attempt to flash or clone a standard 505 (single-actuator, non-extraction) program file into this unit, as the internal steam map matrix calculation will fail to initialize.
- ❗ Document the Decoupling Matrix Before Pulling the Unit: Before removing a faulty controller, manually record all ratio limits, steam map corner points, extraction pressure setpoints, and PID gains from the display menu. If the unit won’t boot, extract the parameters from site engineering archives or WatchWindow files.
- ⚠️ Ground Speed Cable Shields at the Governor Only: Connect MPU cable shielding strictly to the dedicated terminal pin on the 9907-029. Shield grounding at both the sensor tip and the controller chassis creates ground loops that introduce electrical noise, triggering false speed spikes or sensor fault alarms.
- ❗ Verify Actuator Output Impedance: Check whether your electro-hydraulic actuators require 4–20 mA control signals or low-impedance 0–200 mA coil drivers. Verify jumper configurations on the rear board to prevent overloading the output driver stage.
Frequently Asked Questions
Q: What is the primary difference between a Woodward 9907-019 and a 9907-029?
A: The 9907-019 is a standard 505 controller designed for single-actuator steam turbines. The 9907-029 is a 505E model designed for dual-actuator extraction or admission steam turbines requiring integrated decoupling calculations.
Q: Can I use the 9907-029 on a turbine that doesn’t use extraction control?
A: Yes, you can disable the extraction control function in the software menu to operate the unit as a standard single-actuator speed controller, though a standard 505 unit is typically used for single-valve applications.
Q: How do I clear a “Speed Sensor Loss” alarm on the front panel?
A: Verify that field MPU resistance measures between 50 Ω and 300 Ω at the wiring terminals. Ensure the AC voltage generated by the pickup sensor is at least 1.0 Vrms during turbine cranking, then press the front panel RESET key.
Q: Does this unit support remote monitoring via plant DCS systems?
A: Yes. The 9907-029 features built-in RS-232/RS-422/RS-485 serial interfaces running Modbus RTU protocol, allowing full read/write access for remote speed setpoints, extraction pressure targets, valve position feedbacks, and alarm logs.
Q: What warranty coverage applies to surplus or refurbished 9907-029 units?
A: Every unit supplied carries a complete 12-month operational warranty covering all hardware and functional capabilities.
