Woodward 9907-029 2301A Electronic Load Sharing Controller

Description

Product Introduction

The Woodward 9907-029 is a 2301A Electronic Load Sharing and Speed Control designed for diesel engines, gas engines, steam turbines, and gas turbines driving synchronous generators. It regulates prime mover speed while providing accurate load sharing for generators operating individually or in parallel. The controller supports both isochronous and droop operating modes.

Unlike a synchronizer, the 9907-029 directly controls the governor actuator rather than breaker synchronization. It receives engine speed feedback from a magnetic pickup, adjusts actuator current, and maintains generator frequency as electrical load changes. One thing to watch out for is that this model is forward-acting. Installing it where a reverse-acting governor is required will produce incorrect fuel control response.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The replacement governor arrives.

Everything is wired correctly.

The engine starts.

Then speed slowly drifts every time the load changes.

Maintenance begins adjusting gain and stability.

Nothing improves.

In our field experience, the problem is often simpler. Someone installed the wrong controller variant. The engine required a reverse-acting governor, but a forward-acting 9907-029 was installed. The controller was operating exactly as designed—it simply wasn’t the correct model.

Typical Applications

Power Plants — Standby generator control — Maintains engine speed and stable system frequency during load changes.

Oil & Gas — Gas engine compressor stations — Controls engine speed while supporting stable process operation.

Marine Power — Auxiliary generators — Maintains generator frequency during parallel operation.

Industrial Manufacturing — Cogeneration systems — Shares active load between multiple engine-driven generators.

Water & Wastewater — Emergency pumping stations — Regulates diesel engine speed during utility outages.

Field Replacement Example

A municipal power station experienced unstable frequency after replacing a failed governor controller. The actuator, magnetic pickup, and alternator all passed inspection. Engineers eventually compared the original controller against the replacement and discovered that the previous installation used a reverse-acting model while the new unit was a 9907-029 forward-acting controller. Installing the correct governor restored stable engine operation without modifying any field wiring.

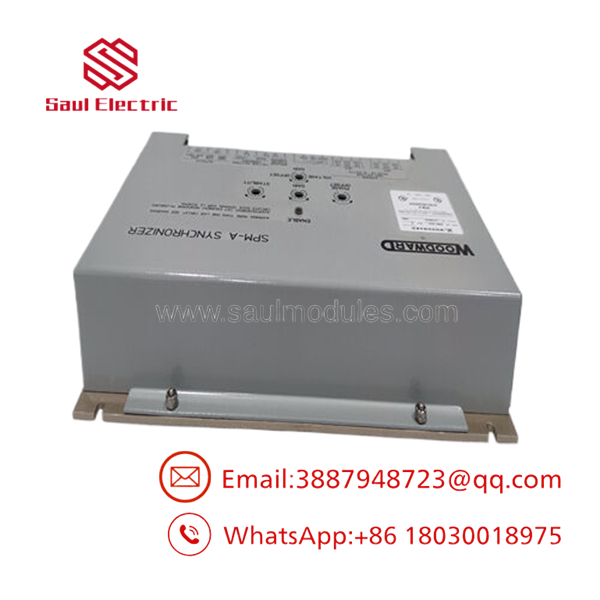

9907-029

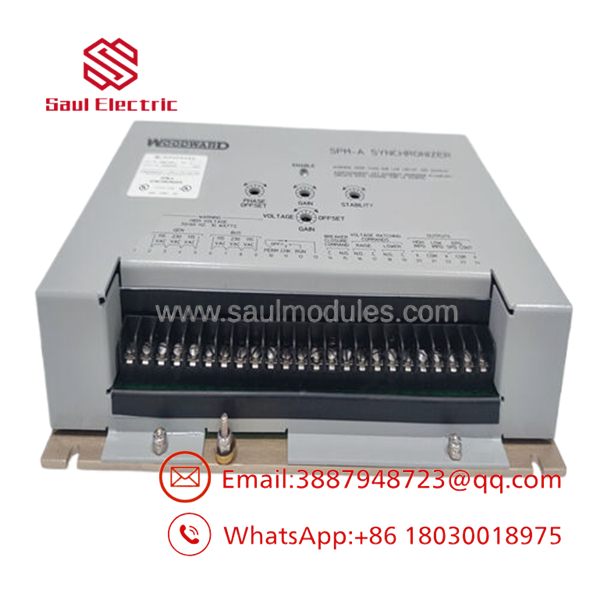

9907-029

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible Woodward governor test platforms whenever practical.

• Inbound Inspection
  • Verify Woodward part number and serial number.
  • Inspect housing, terminals, connectors, and adjustment potentiometers.
  • Check for corrosion, overheating, and previous repairs.
• Live Rig Testing
  • Verify power-up sequence.
  • Simulate magnetic pickup frequency.
  • Confirm actuator output response.
  • Test load-sharing circuitry.
  • Verify deceleration ramp operation.
• Electrical Parameter Checks
  • Verify 20–40 VDC power input.
  • Measure actuator current output.
  • Test analog and digital circuits.
  • Confirm stable governor response.
• Firmware & Configuration Verification
  • Record hardware identification.
  • Verify calibration.
  • Confirm proper adjustment ranges.
• Final QC & Anti-static Packaging
  • Complete operational inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping.
  • Full serial-number traceability.

The Veteran’s Tech Trap Guide

⚠️ Verify actuator direction before ordering.
The 9907-029 is a forward-acting governor controller. Installing it where a reverse-acting governor is required will immediately create unstable speed control.

⚠️ Don’t overlook the deceleration ramp.
Unlike many other 2301A models, the 9907-029 includes a deceleration ramp. If the replacement controller lacks this feature, engine shutdown characteristics may change.

❗ Check the magnetic pickup first.
Weak MPU signals often produce hunting, overspeed alarms, or unstable frequency. Replacing the controller won’t fix damaged speed sensors or incorrect sensor gaps.

⚠️ Save every adjustment before removing the old controller.
Governor gain, droop, rated speed, idle speed, and actuator calibration are usually tuned during commissioning. Recording those settings before replacement saves hours during startup.

Frequently Asked Questions (FAQ)

Q1. What is the Woodward 9907-029?

The 9907-029 is a Woodward 2301A Electronic Load Sharing and Speed Control designed to regulate engine speed and share generator load in diesel, gas engine, steam turbine, and gas turbine applications.

Q2. Is the 9907-029 forward-acting or reverse-acting?

It is a forward-acting controller with a 0–200 mA actuator output for single-actuator applications.

Q3. Does this model include a deceleration ramp?

Yes. The 9907-029 includes the optional deceleration ramp, allowing controlled engine deceleration during shutdown or speed reduction.

Q4. Does the controller support isochronous and droop operation?

Yes. It supports both isochronous operation for constant-speed applications and droop mode for parallel generator operation.

Q5. Can it be replaced while the engine is running?

No. Removing the governor controller while the engine is operating interrupts speed regulation and may trigger engine shutdown or overspeed protection. Always isolate the equipment before replacement.

Q6. Why is this controller still widely used?

Many industrial power plants, marine vessels, compressor stations, and standby generator systems continue using the proven 2301A platform. Keeping qualified spare controllers on site is often considerably less expensive than redesigning an existing governor system.

Q7. What should be verified before installation?

Confirm the 9907-029 part number, forward-acting configuration, 20–40 VDC power supply, actuator compatibility, magnetic pickup signal quality, speed range selection, governor tuning parameters, load-sharing wiring, and protection settings. Before returning the engine to service, perform idle-speed verification, rated-speed testing, load acceptance, and parallel load-sharing validation.
