Product Introduction & Engineering Value
Few machinery overhauls carry higher stakes than migrating a massive industrial steam turbine away from an unpredictable mechanical-hydraulic governor system. The Woodward 9907-167 completely simplifies this modernization process, providing an integrated, menu-driven digital platform engineered explicitly to execute complex valve split-range calculations and critical speed-band protections.
I have installed this particular low-voltage variant across numerous refinery utility decks because its dense field-terminal configuration eliminates the need for peripheral analog signal converters. The module’s rugged display face delivers immediate visualization of critical machine parameters, helping operations teams identify sticky governor valves or governor loop hunting before a localized process upset triggers a complete facility blackout.
Technical Specifications
The operational parameters and terminal configurations for this digital governor platform are detailed below:
| Technical Control Metric | Hardware Constraint / Operational Rating |
| Logic Supply Voltage Input | 18 to 32 VDC continuous rating (24 VDC nominal station rail) |
| MPU/Proximity Speed Inputs | 2 independent, high-frequency isolated magnetic sensor channels |
| Analog Input Channels | 6 multi-range inputs supporting standard 4 to 20 mA process loops |
| Analog Output Channels | 6 programmable outputs configured exclusively for 4 to 20 mA loops |
| Discrete Input Capacity | 16 internally excited contact sensing ports |
| Discrete Relay Outputs | 8 heavy-duty Form-C relay sets rated for 2.0 A at 28 VDC |
| Serial Communication Ports | Dual isolated RS-422/RS-485 connections running Modbus RTU |
| Operational Enclosure Rating | NEMA 4X front panel display washdown classification |
Field Application & The “Trench” Experience
We were executing an emergency controls retrofit on a 15-megawatt generator-drive steam turbine inside a chemical processing facility. The existing system suffered from chronic drift during seasonal ambient temperature swings, which introduced dangerous frequency oscillations whenever process steam pressures varied. We replaced the legacy hardware with a 9907-167, utilizing its critical speed avoidance logic to safely bypass the turbine’s natural structural resonance zones during the initial startup roll. The new controller held the steady-state grid speed to within less than 0.1% accuracy, providing reliable load-sharing operations even when upstream boiler headers experienced sudden pressure drops.
- Refinery Boiler Feed Pump Regulation: Governing variable-speed high-pressure mechanical drive turbine loops.
- Industrial Cogeneration Plant Parallel Control: Automatically adjusting generation load profiles while maintaining fixed extraction steam headers for factory processes.
- Paper Mill Waste Heat Recovery Loops: Executing rapid start-to-load sequencing utilizing automated warm-up time maps.
Transparency SOP: QA & Testing
Our internal validation protocol targets the 9907-167 with strict functional procedures before field deployment:
- Enclosure Integrity Check: The front membrane keypad and underlying vacuum-fluorescent display lines are checked for response and crisp illumination.
- Dual-Channel Loop Synthesis: Dual frequency generators feed simulated MPU signals up to 15 kHz to test the controller’s redundant speed validation routines.
- I/O Grid Loading: All 6 analog inputs and 6 outputs are mapped across precision 4-20 mA multi-meters to confirm exact linear response values.
- Modbus Stress Profiling: Serial communication registers are queried continuously over a 12-hour testing window to guarantee flawless data interface integration.

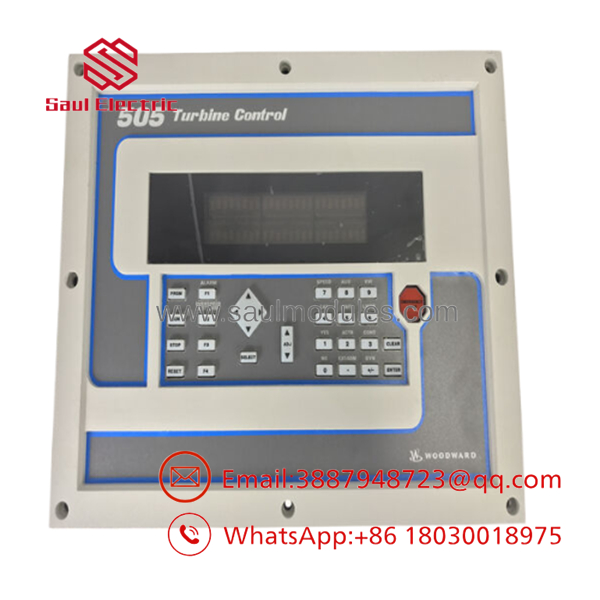

- 9907-167

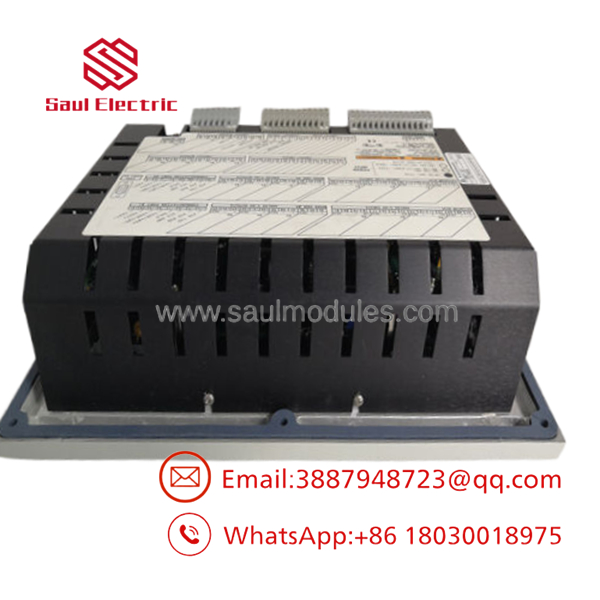

- 9907-167
The Veteran’s Tech Trap Guide
⚠️ THE LOW-VOLTAGE TRANSIENT RISK: The 9907-167 is a 24 VDC nominal unit. If your power supply lines share a rail with large hydraulic starter solenoids or heavy DC pump motors, the voltage drop during motor starting can pull the supply rail down below 18 VDC. This will cause the 505 controller to execute an immediate emergency processor reset, instantly tripping the steam turbine offline.
PRO TIP: When configuring your magnetic speed pickups, never guess the internal gear tooth count. Entering an incorrect tooth value in the initial configuration menu will cause the controller to calculate an incorrect shaft speed, which can cause the governor to instantly trip the unit on overspeed the first time the turbine begins to accelerate.
Dynamic FAQ
- Q: Can I use this 9907-167 controller to manage a dual-valve extraction steam turbine?
- A: Yes. The 505 operating software contains integrated matrices designed to calculate split-range demands for both high-pressure inlet valves and secondary extraction control manifolds.
- Q: How does the controller protect against an accidental overspeed scenario if an MPU fails?
- A: The system utilizes two independent speed channels. If one channel loses its signal, the software shifts seamlessly to the secondary sensor while triggering an internal system warning flag.
- Q: Is it necessary to connect an external computer to program the 505 parameters?
- A: No. All calibration parameters, tuning constants, and setpoints can be entered directly using the front panel keypad and the clear display screen.
- Q: Do your New Surplus 9907-167 controllers ship with full factory documentation and testing sheets?
- A: Yes. Every unit ships complete with a full technical parameters validation summary, signed bench test logs, and our comprehensive 12-month operational replacement warranty.
