Description
Core Product Summary (Brand / Model / Key Attributes)
The XP Power F8B6D4A3G3 is a configured model within the F8 series of modular AC-DC power supplies. The F8 platform is a high-power, slot-based system that accepts multiple plug-in output modules to create multi-output configurations.
It is designed for industrial, medical, and technology applications requiring flexible, high-reliability power conversion from a wide-range AC input. Exact output voltage/current combinations are defined by the specific module configuration encoded in the model number.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Configurable modular AC-DC power supply |
| Series | XP Power F8 |
| Platform power | Up to 800 W |
| Input | 100–240 VAC, 50/60 Hz |
| Construction | Modular chassis with plug-in output modules |
| Maximum slots | Up to 6 output module slots |
| Cooling / options | Configurable (forced-air variants available) |
| Safety | Designed to relevant industrial and ITE standards (series level) |
Note: Detailed output ratings (voltages, currents, and isolation) for the exact F8B6D4A3G3 configuration are defined by the installed output modules and are not published as a fixed single-output datasheet. Refer to the official XP Power F8 series documentation or configuration tool for the precise output map of this order code.
Detailed Product Overview
The F8B6D4A3G3 belongs to XP Power’s F8 modular power platform. The F8 series uses a common AC input front-end that accepts multiple single-, dual-, or triple-slot output modules. This architecture allows system designers to create custom multi-output power supplies while maintaining a single mechanical footprint and shared safety certifications.
The platform supports a wide universal AC input and is rated for continuous operation at up to 800 W depending on input voltage, cooling, and module combination. Output modules are available in a broad range of voltages and power levels, enabling combinations that would otherwise require several discrete power supplies.
Because the exact electrical outputs of any F8 unit are determined by the modules installed, the full model number (F8B6D4A3G3) encodes the specific module types and positions. Users requiring precise voltage, current, ripple, or isolation data for this configuration should consult the official XP Power configuration documentation or contact XP Power application support with the complete part number.
The modular approach simplifies inventory for OEMs that need multiple power variants and allows field reconfiguration in some cases (subject to thermal and safety limits).

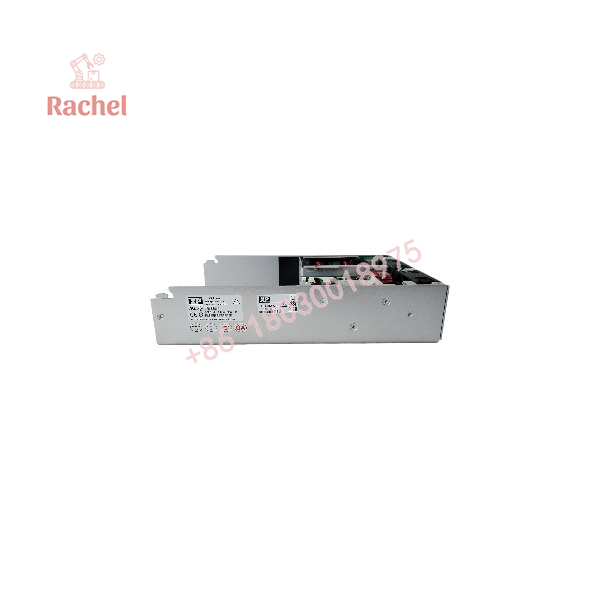

F8B6D4A3G3

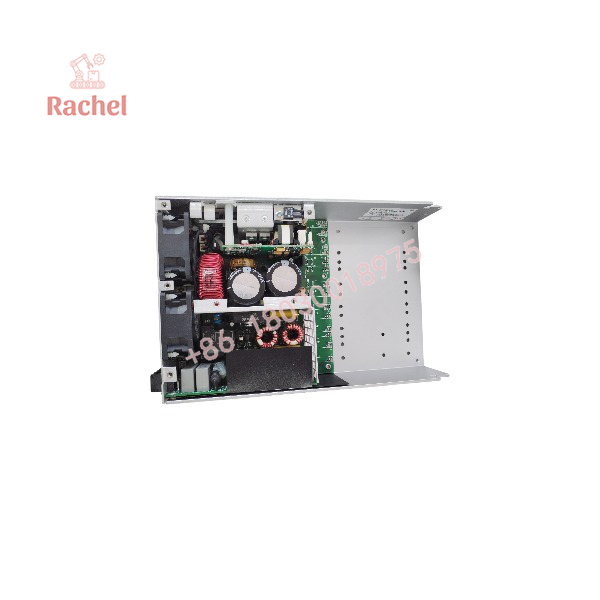

F8B6D4A3G3
Engineering Selection Highlights
- Modular F8 platform supports up to six output module slots for flexible multi-rail designs.
- Universal 100–240 VAC input covers global mains requirements.
- Up to 800 W total power capability in a single chassis.
- Configured model number uniquely identifies the installed output modules.
- Suitable for industrial, medical, and semiconductor-equipment applications requiring multiple regulated rails.
- Shared mechanical and safety platform reduces qualification effort across power variants.
Dimensions, Mounting & Connection Notes
Mechanical dimensions, mounting hole patterns, and connector locations follow the standard F8 series chassis. Exact details depend on the cooling option and module complement. Refer to the official XP Power F8 series mechanical drawings and the configuration sheet for F8B6D4A3G3.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Input power | 100–240 VAC, 50/60 Hz | Standard IEC inlet or terminal block (variant dependent) |
| Output configuration | Defined by modules encoded in F8B6D4A3G3 | Confirm exact voltages/currents with XP Power |
| Cooling | Forced-air options available | Check thermal derating for the specific configuration |
| Mounting | Chassis / rack / system integration | Follow F8 series mechanical drawings |
| Safety standards | Series-level industrial / ITE approvals | Verify applicability to the final configured unit |
FAQ
What is the XP Power F8B6D4A3G3?
It is a configured multi-output AC-DC power supply based on the XP Power F8 modular platform.
How much power can it deliver?
The F8 platform is rated up to 800 W, subject to input voltage, cooling, and the specific modules installed.
What are the exact output voltages?
The outputs are determined by the plug-in modules encoded in the model number F8B6D4A3G3. Consult XP Power documentation or support for the precise configuration.
Is it a fixed-output or configurable supply?
It is a factory-configured modular supply. The chassis accepts different output modules to create the required voltage/current combination.
What input voltage does it accept?
Universal 100–240 VAC, 50/60 Hz.
Verification & Troubleshooting Notes
Always verify the exact output configuration using the official XP Power part-number decoder or configuration tool before design-in or replacement. Confirm that the installed modules match the application voltage and current requirements and that adequate cooling is provided for the total load. Check input fuse rating and protective earthing in accordance with the F8 series installation guidelines.
For full electrical specifications, thermal derating curves, and safety documentation specific to F8B6D4A3G3, contact XP Power or an authorized distributor with the complete model number.
