Yaskawa IBRC-6052R Motoman Robot Relay I/O Board

Description

Product Introduction

The Yaskawa JANCD-IBRC-6052R is a specialized relay I/O interface board engineered for legacy Motoman robot controllers, including the MRC and XRC control cabinet platforms. Designed to handle discrete field-level signals, the IBRC-6052R acts as the electromechanical bridge between low-voltage controller logic and high-power cell hardware like pneumatic grippers, solenoid valves, safety light curtains, and interlocking gates.

Built with industrial-grade electromagnetic relays and optocoupler isolation, the board prevents electrical noise, voltage surges, and ground loops in harsh welding or stamping environments from reaching the robot’s main CPU. When an aging IBRC-6052R board suffers relay contact welding or trace damage from a shorted field solenoid, entire automated cells lock up with I/O communication alarms. Swapping in a pre-tested, direct replacement board gets the arm moving again without reprogramming job files.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

We received a midnight service request from a tier-1 automotive exhaust manufacturer after a robotic MIG welding cell stalled during shift production. The Motoman robot stopped mid-seam, locking the fixture clamps and throwing a continuous I/O handshake fault. Troubleshooting showed that an inductive load from an un-suppressed pneumatic valve short-circuited an output channel on the IBRC-6052R board, welding the relay contacts closed. Sourcing a new controller architecture would have required days of re-wiring end-of-arm tooling and converting job code. Dropping in a bench-verified IBRC-6052R replacement board restored relay switching and brought the welding cell back online in under 30 minutes.

• Robotic Arc & Spot Welding: Managing clamp interlocks, wire feed permissives, and weld controller start/stop signals.
• Material Handling & Palletizing: Controlling pneumatic vacuum grippers, mechanical latches, and conveyor indexers.
• Press Tending & Metal Stamping: Interfacing robot safety zones with high-speed mechanical press interlocks.
• Automotive Body-in-White Lines: Routing discrete tool-change confirmation and fixture clamp feedback signals.

IBRC-6052R

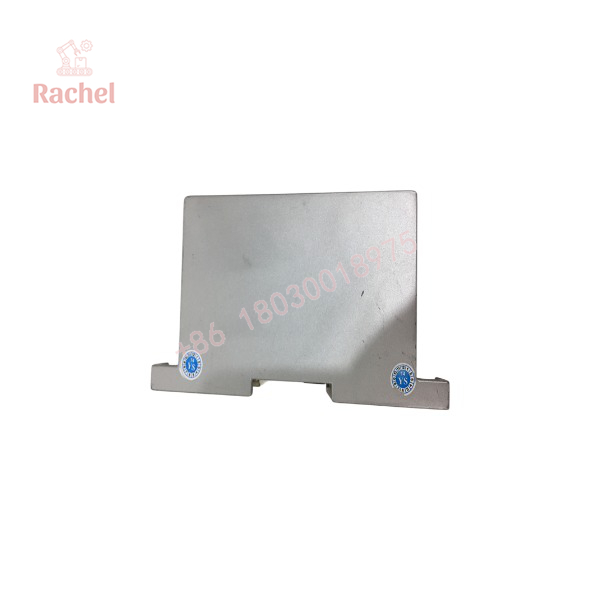

IBRC-6052R

Transparency SOP: Quality Assurance & Testing

We do not drop-ship unverified surplus circuit boards. Every Yaskawa IBRC-6052R board undergoes a strict 5-step engineering bench check before entering static-shielded storage:

1. Inbound Physical Inspection: Audit multi-pin edge connectors, check relay housings for heat discoloration, inspect traces for arc marks, and verify OEM serial tags.
2. Cold Component & Resistance Audit: Test internal clamping diodes, trace paths, and coil resistance across every relay channel to confirm zero shorted windings.
3. Power-On Logic Handshake: Insert the board into a test controller rack to verify 24VDC logic rail power regulation and onboard LED diagnostic status.
4. Full Channel I/O Actuation: Individually actuate every input and relay output channel under rated load, verifying contact resistance and clean open/close switching state transitions.
5. Clean & Anti-Static Packaging: Clean board surfaces with isopropyl solvent, blow out dust from headers, and wrap the unit in ESD anti-static bubble packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Inductive Kickback Protection: The most common cause of relay failure on the IBRC-6052R board is driving un-suppressed inductive loads (like 24VDC solenoid valves or magnetic contactors). Always verify that flyback diodes or surge suppressors are installed across external field coils. Running without coil suppression will cause inductive kickback voltage spikes that weld or burn out the onboard relay contacts.

❗ Verify Ribbon Cable Keying: When installing the replacement board, pay close attention to multi-pin ribbon cables and harness headers. Forcing misaligned or backwards connectors can bend backplane pins or short the 24V control voltage directly into sensitive logic lines.

⚠️ Check Field Wiring Before Power-On: If your previous IBRC-6052R board suffered blown traces or melted relay covers, do not plug in the new board without megger-testing or inspecting the field wiring first. A short-circuited 24V field cable or crushed end-of-arm tooling harness will instantly destroy the replacement board’s output relays the moment you actuate the output.

Frequently Asked Questions (FAQ)

Q: Is the JANCD- board hot-swappable?

A: No. Always switch off incoming main breaker power to the Motoman robot controller cabinet before removing or inserting any internal circuit boards or ribbon cables. Hot-swapping can damage the backplane bus and cause micro-arcing on edge connectors.

Q: What is the difference between IBRC-6052R and other JANCD-IBRC boards?

A: The 6052R variant specifically incorporates onboard electromechanical relays for direct switching of field signals. Other IBRC board revisions may feature transistor-only (NPN/PNP open collector) outputs or different input channel counts.

Q: Do I need to reload controller software parameters when replacing this board?

A: No. The IBRC-6052R is a hardware I/O interface board. CMOS system memory and robot job files reside on the main CPU and memory cards. Replacing this board is a direct 1:1 hardware swap.

Q: Can burnt relay channels on an old board be repaired?

A: Yes, damaged relays and trace lines can often be repaired down to the component level, but swapping in a complete bench-tested surplus board is recommended for immediate line recovery.

Q: What warranty coverage comes with this replacement board?

A: Every Yaskawa IBRC-6052R board supplied comes backed by a full 12-month operational replacement warranty from our component testing facility.
