Product Introduction
The Yaskawa JZNC-XIU01B is a system I/O interface and contactor unit engineered specifically for Yaskawa Motoman XRC robot controller cabinets. Serving as a crucial communication bridge between the main XRC central processing unit (CPU) and external cell automation, the XIU01B manages discrete digital input/output channels, safety fence interlocks, emergency stop lines, and teach pendant enable signals.
When an aging Motoman XRC controller throws persistent safety circuit alarms or drops cell I/O handshakes due to blown channel buffers inside the JZNC-XIU01B, replacing the unit with a bench-verified replacement restores full cell communication without requiring complete cabinet rewiring or job code modifications.
Key Technical Specifications
| Parameter | Value / Specification |
| Model Number | JZNC-XIU01B |
| Manufacturer | Yaskawa Electric / Motoman Robotics |
| Compatible Controller | Motoman XRC Series Cabinet (e.g., UP, SK, EA Series Robots) |
| Module Type | System Input/Output Interface Rack |
| Supported Functions | E-Stop Interlocks, Cell Safety Gates, System I/O Routing |
| Connectors | High-Density Ribbon Headers & Multi-Pin Plugs |
| Internal Power | 24V DC Backplane Bus Powered |
| Mounting Format | Internal Cabinet Sub-Rack Slide Mount |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
Application Scenarios & The “Trench” Experience
A tier-1 automotive supplier hit a line stoppage when an XRC-controlled arc welding robot locked out with an un-clearable “External E-Stop Open” alarm despite all physical safety fence gates being closed and healthy. System diagnostics traced the fault to a failed optocoupler line and damaged logic trace on the JZNC-XIU01B interface unit, caused by an upstream 24V power surge from a damaged wire harness. Sourcing a new controller architecture would have required days of re-programming and cell re-certification. Swapping out the faulty module for a pre-tested JZNC-XIU01B rack cleared the false safety fault and brought the cell back into production in under 45 minutes.
- Robotic Arc & Spot Welding Cells: Routing welding torch interlocks, gas purge signals, and robot safety circuit signals.
- Automotive Stamping & Transfer Lines: Managing press synchronizations, light curtain feedback, and part-present sensors.
- Material Handling & Palletizing: Interfacing conveyor control permissives and safety door latches to the XRC CPU.
- Machine Tending Operations: Handshaking CNC door open/close and part clamp/unclamp status with the robot logic.

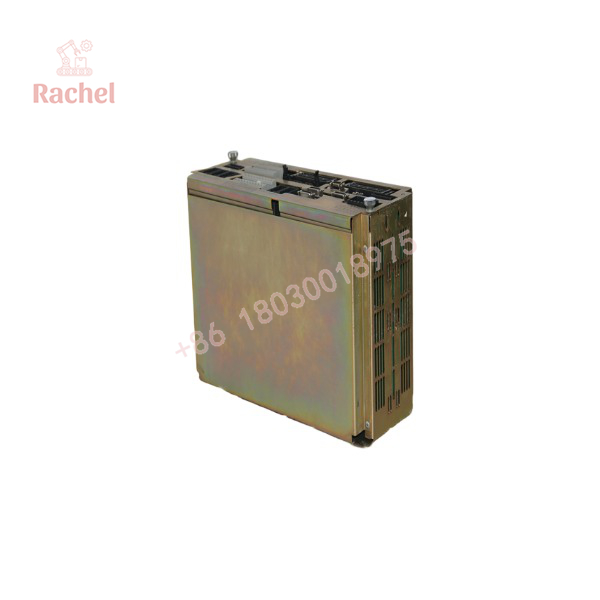

JZNC-XIU01B

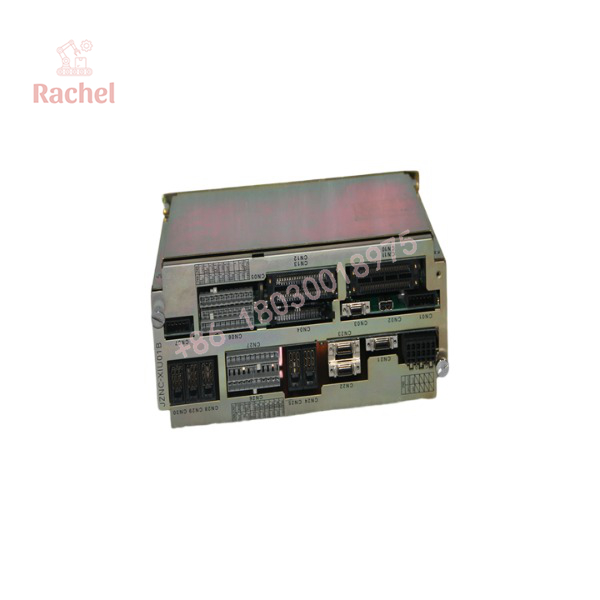

JZNC-XIU01B
Transparency SOP: Quality Assurance & Testing
Every Yaskawa JZNC-XIU01B interface unit undergoes a rigorous 5-step engineering check before entering static-shielded storage:
- Inbound Visual Audit: Inspect all multi-pin header connectors, ribbon latch clips, PCB trace lines, and card cage housing for cracks, heat damage, or pin corrosion.
- Power Rail Resistance Check: Test internal 24V supply and logic ground buses with a digital multimeter to confirm zero dead shorts before energizing.
- Backplane & Boot Diagnostic: Install the unit into an active Motoman XRC test cabinet to verify system initialization, power LED indicators, and zero CPU boot errors.
- I/O & Safety Loop Verification: Toggle safety gate loops, teach pendant hold switches, and discrete I/O points to confirm clean signal switching across all channel paths.
- Clean & Anti-Static Packaging: Clean card cage surfaces, apply connector protective covers, and package the unit in heavy metallic static-shielding material.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Power Off Before Cable Insertion! Never connect or disconnect ribbon cables or pin headers on the JZNC-XIU01B while main cabinet power is ON. Hot-plugging cable harnesses can cause voltage transients that permanently damage internal buffer ICs or trip main backplane fuses.
❗ Pin Alignment Integrity: Take extreme care when seating ribbon cable plugs into the high-density headers on the front face of the XIU01B. Bending or offsetting a single pin will cause misrouted I/O signals, leading to intermittent safety circuit alarms or false sensor readings.
⚠️ Field Surge Suppression: If your cell uses external 24V inductive solenoids or relay coils wired into the system I/O, ensure flyback diodes are installed across those external loads. Unsuppressed inductive spikes returning through field cables are the leading cause of channel driver failure on the JZNC-XIU01B.
Frequently Asked Questions (FAQ)
Q: Is the JZNC-XIU01B interchangeable with MRC series I/O units?
A: No. The JZNC-XIU01B is designed specifically for the Motoman XRC cabinet architecture. Legacy MRC units use different backplane connections and internal bus protocols.
Q: Do I need to reload robot program parameters after replacing the JZNC-XIU01B?
A: No. The JZNC-XIU01B is a hardware interface card rack. Robot jobs, CMOS memory, and system parameters are stored on the main XRC CPU card, making this a direct hardware swap.
Q: What are the main causes of E-Stop circuit faults on this board?
A: Common causes include blown input optocouplers, shorted internal trace paths due to external wire pinches, or loose multi-pin harness connections.
Q: What warranty coverage comes with this unit?
A: Every Yaskawa JZNC-XIU01B unit supplied includes a full 12-month operational replacement warranty from our component testing facility.
