Yokogawa AAI143-S00 Isolated 16-Channel Analog Input Module

Description

Product Introduction

The Yokogawa AAI143-S00 is a high-density, 16-channel channel-isolated analog input card designed for Yokogawa CENTUM VP and CS 3000 Distributed Control Systems (DCS). Serving as a high-reliability interface for critical process instrumentation, the module samples 4-20mA DC current signals from pressure, temperature, level, and flow transmitters.

Unlike standard non-isolated modules (such as the AAI141 series), the AAI143 features full galvanic isolation between individual channels as well as between field wiring and system backplane logic. This design protects sensitive DCS processing units from severe ground loops, common-mode voltage spikes, and field wiring faults in complex industrial plant layouts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a large chemical plant processing unit where field transmitters are distributed across multiple grounding grids hundreds of meters apart. An electrical ground potential difference between two distant tanks causes heavy common-mode currents on field cables. If connected to a non-isolated input card, ground loops will distort 4-20mA signals across adjacent loops, generating erratic level readings in the control room. Swapping in or specifying the channel-isolated Yokogawa AAI143-S00 isolates each loop electronically, eliminating cross-channel signal distortion and maintaining true process values despite field ground shifts.

Primary Field Applications:

• Chemical & Petrochemical Facilities: Long-distance field signal loops prone to ground potential shifts and severe electrical noise.
• Refining & Distillation Units: High-accuracy critical flow and pressure loops where cross-channel fault propagation must be prevented.
• Power Generation Facilities: Turbogenerator auxiliary loops and boiler control systems requiring high noise immunity against heavy VFD drives and power electronics.

AAI143-S00

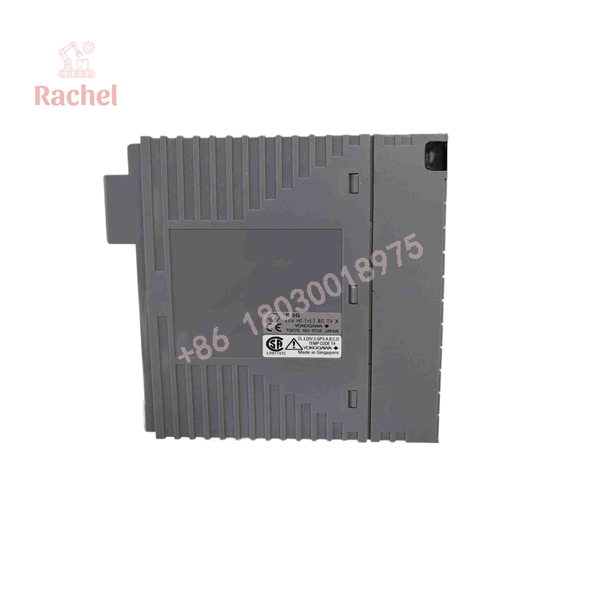

AAI143-S00

Transparency SOP: Quality Assurance & Testing

DCS input hardware directly governs plant automation safety. Every Yokogawa AAI143-S00 module undergoes a rigorous 5-step hardware qualification procedure before entering shippable inventory:

1. Inbound Visual & Physical Audit: Comprehensive check of backplane edge connectors, terminal shield plating, guide rails, and circuit board components.
2. Backplane Boot & Node Diagnostics: Mounting the card into a live CENTUM VP test node (RIO/FIO subrack) to verify 5V DC power-up handshakes and status LED diagnostics.
3. 16-Channel Galvanic Isolation Test: Verifying channel-to-channel resistance and testing withstand voltage across isolated channel groups.
4. Precision 4-20mA Calibration Sweep: Applying multi-point current inputs (4mA, 8mA, 12mA, 16mA, 20mA) across all 16 channels using calibrated signal calibrators to confirm ADC conversion accuracy within \pm 0.1\% FS.
5. ESD Cleaning & Protective Packaging: Contact restoration, anti-static vacuum wrapping, and high-density foam shipping protection.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ AAI143 (Isolated) vs. AAI141 (Non-Isolated): While both modules fit standard FIO subracks and process 16 channels of 4-20mA signals, their internal power and grounding architectures are fundamentally different. AAI143 channels are individual isolated circuits, whereas AAI141 channels share a common field ground. Replacing an AAI143 with an AAI141 in a rack with ground loops will immediately cause signal errors!
• ❗ Confirm HART Requirement (-S00 vs. -H00): The -S00 suffix indicates a standard analog module without HART communication. If your asset management system (FieldMate) relies on HART digital pass-through for transmitter diagnostics or calibration, you must order the -H00 or -H50 variant instead.
• ⚠️ Verify Terminal Block Wiring Assemblies: The AAI143 module pairs with specific terminal blocks (e.g., KS1 screw terminal or pressure clamp blocks). When replacing a card in the field, ensure the terminal block assembly matches the module pins securely to avoid intermittent open-circuit faults.
• ❗ Mind System Builder Slot Configuration: When swapping an AAI143-S00 into a slot previously configured for a different card type, update and download the I/O module definition in CENTUM System Builder to ensure correct address mapping.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Yokogawa AAI143-S00 hot-swappable in a running CENTUM rack?

A: Yes, Yokogawa FIO modules support hot-swapping under power. However, ensure associated control loops are placed into manual mode or bypassed in software before extracting the module.

Q: Does the AAI143-S00 provide 2-wire loop power to field transmitters?

A: No, the AAI143 is a current input card. External 24V DC field loop power must be supplied via field power distribution terminal blocks or active 4-wire transmitters.

Q: What is the main benefit of channel-to-channel isolation on the AAI143-S00?

A: Channel-to-channel isolation prevents electrical faults or ground loops on one field transmitter from affecting measurements on adjacent channels, delivering higher system availability and fault isolation.

Q: What warranty is provided with this surplus Yokogawa module?

A: Every Yokogawa AAI143-S00 module supplied from our inventory carries a full 12-month direct replacement warranty.

Q: Why purchase new surplus or refurbished AAI143 modules instead of ordering direct from Yokogawa?

A: OEM factory lead times for specialized DCS cards can take several months. Sourcing verified surplus or refurbished inventory resolves emergency downtime immediately while maintaining 100% OEM hardware compatibility.
