Yokogawa ADV551-P00 Digital Output Module

Description

Product Introduction

The Yokogawa ADV551-P00 is a high-density 32-channel digital output module built for Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Operating within the FIO bus architecture, it converts digital control instructions from Field Control Stations (FCS) into 24V DC transistor switching outputs to actuate field solenoids, interposing relay coils, pilot lamps, and alarm annunciators across process facilities.

Engineered for continuous industrial processing, the ADV551-P00 provides full optical channel-to-bus isolation to protect central control processors against aggressive field transients. It natively supports both single-card operation and dual-redundant pair configurations (when installed alongside a matching unit in adjacent slots), guaranteeing high availability for critical safety loops and process interlocks.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A unexpected trip on an offshore platform or refining unit due to a dropped digital output module can stop a multi-million-dollar production stream instantly. When a solenoid-driven block valve fails to actuate because an output channel transistor shorted, the DCS controller throws output readback mismatch errors. Swapping the bad card with a fresh ADV551-P00 module in a dual-redundant slot setup allows seamless online replacement without taking the controller offline or interrupting adjacent output channels.

• Oil & Gas Refining – Controlling ESD (Emergency Shutdown) solenoid valves, burner management relays, and pump permissives.
• Chemical Processing – Driving pneumatic direction valves, dosing pump contactors, and automated batching valves.
• Power Generation – Interfacing boiler trip interlocks, turbine auxiliary relay coils, and local status alarm light trees.
• LNG Terminals & Storage – Managing cryogenic valve positioners and remote isolation valves across field manifolds.

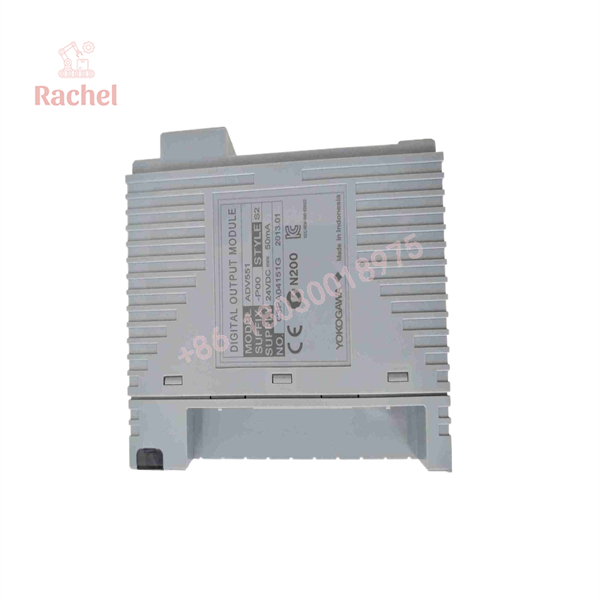

ADV551-P00

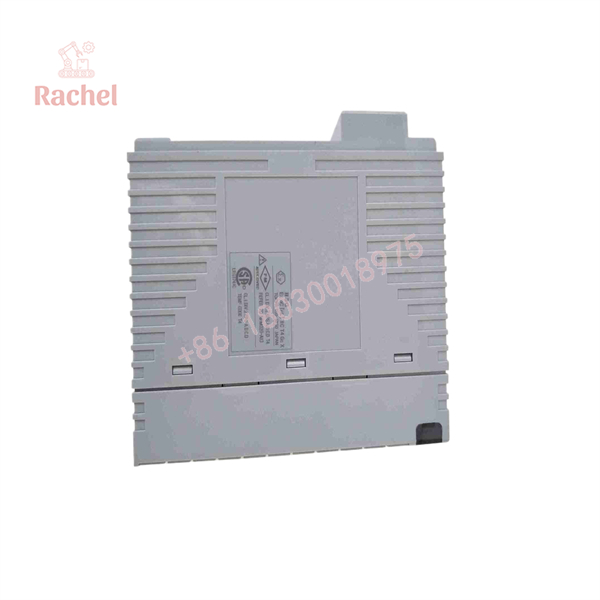

ADV551-P00

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Yokogawa CENTUM FIO test racks. Every surplus or refurbished ADV551-P00 undergoes a strict 5-stage verification process before shipping:

1. Inbound Physical Inspection: Complete check of backplane edge connectors, terminal block mounting clips, side latches, and internal PCB solder joints for thermal discoloration.
2. Backplane Power-On & LED Diagnostics: Module inserted into an active Yokogawa ER bus / FIO node unit; internal power rails, heartbeat status, and READY LED verified.
3. Active Channel Load Testing: All 32 output channels individually loaded with 24V DC / 100 mA test loads; verified clean switching times, off-state leakage bounds, and voltage drop across driver transistors.
4. Dual-Redundant Pair Failover Test: Paired with an adjacent unit on a CENTUM CS 3000 test rack; simulated live card extraction to confirm zero-glitch automatic failover to the backup card.
5. Memory Clear & Anti-Static Packaging: Node software registers cleared, terminal contacts inspected, and unit sealed in ESD-safe static shielding packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Watch Out for Suffix / Style Differences (-P00 vs -S00 vs /S2): Verify whether your project requires standard coating, basic functionality (-P00), or conformal coating for harsh environments (/S2). Ensure your replacement card suffix aligns with existing station definitions in System View to prevent I/O type mismatch warnings on boot.

❗ Observe External 24V DC Field Power Connections: The transistor output drivers require external 24V DC field power supplied via the pressure clamp terminal block or ribbon cable connector. If the module’s status LED shows normal status but no field devices actuate, check the field-side 24V supply fuses feeding the terminal unit (e.g., KS cable or pressure terminal block).

⚠️ Mind the Max Current Limits per Group: While each channel supports up to 0.1A (100 mA), switching high-density inductive loads across all 32 channels simultaneously can exceed total group heat dissipation thresholds. Always verify that total load per 16-channel common group stays below 1.2A.

❗ Always Use Flyback Diodes on DC Solenoids: The ADV551-P00 switches DC loads. Connecting raw unsuppressed solenoid coils or heavy DC contactors directly to the terminal block without flyback suppression diodes across the load will generate massive inductive voltage spikes that degrade the transistor switching arrays over time.

Frequently Asked Questions (FAQ for Conversion)

Q: Can the ADV551-P00 be replaced online without shutting down the controller?

A: Yes. In a dual-redundant configuration, you can hot-swap a faulty ADV551-P00 module while the system is running live without disturbing process control. Even in single-card setups, pulling the module won’t crash the FCS CPU, though active field outputs on that specific card will turn off.

Q: What is the difference between the ADV551 and the ADV561?

A: The ADV551 is a 32-channel 24V DC digital output module (0.1A/channel), whereas the ADV561 is a higher-current 64-channel or specialized output module variant. Always match the exact module model to your existing CENTUM I/O assignment tree.

Q: Does the ADV551-P00 support sinking or sourcing field wiring?

A: Depending on how the external field power supply and common lines are wired at the terminal block (or system cable connector like the AKB331 / KS cable interface), the ADV551-P00 can accommodate sinking or sourcing wiring schemes.

Q: Is the Yokogawa ADV551-P00 compatible with both CENTUM CS 3000 and CENTUM VP?

A: Yes. The ADV551 belongs to the standard Yokogawa FIO family and is fully supported by both CENTUM CS 3000 and CENTUM VP Field Control Stations (FCS).

Q: What warranty is provided with this module?

A: All our new surplus and bench-tested refurbished Yokogawa modules come backed by a full 12-month direct replacement warranty. If the module fails during normal operating conditions within one year, we will swap it out immediately from our stock.
