Yokogawa AAI543-H00 Isolated 16-Channel Analog Output Module

Description

Product Introduction

The Yokogawa AAI543-H00 is a high-density, 16-channel isolated analog output module engineered for Yokogawa CENTUM VP and CS 3000 Distributed Control Systems (DCS). Serving as a primary control interface, it converts digital controller demands into precise 4-20mA DC current loop signals to command control valve positioners, speed drives, and actuators across process plants.

The -H00 suffix indicates integrated HART digital communication pass-through across all 16 channels, enabling control systems and asset management tools (such as Yokogawa FieldMate) to perform online valve diagnostics, partial stroke testing (PST), and smart positioner status monitoring. Featuring full galvanic isolation between individual channels, the AAI543-H00 protects output loops from destructive ground loops and common-mode electrical noise.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical refining unit running continuous high-pressure cracking. An aging analog output card driving four main fuel gas control valve positioners develops a grounding short on channel 3. On a non-isolated module, that ground fault would propagate across adjacent channels, causing multiple fuel valves to jump position or fail closed—triggering an unexpected emergency plant trip. Swapping in or specifying the channel-isolated Yokogawa AAI543-H00 prevents fault propagation entirely. The isolated architecture contains ground shifts to the single affected loop, allowing operators to safely re-establish precise valve positioning without losing the unit.

Primary Field Applications:

• Refining & Petrochemical Processing: High-precision command loops driving smart control valve positioners and variable frequency drives (VFDs).
• Power Generation Facilities: Boiler feed pump drive speed regulation, turbine steam bypass valves, and air damper control.
• Oil & Gas Production Skids: Wellhead choke valve regulation and separator level control valves requiring HART diagnostics.

AAI543-H00

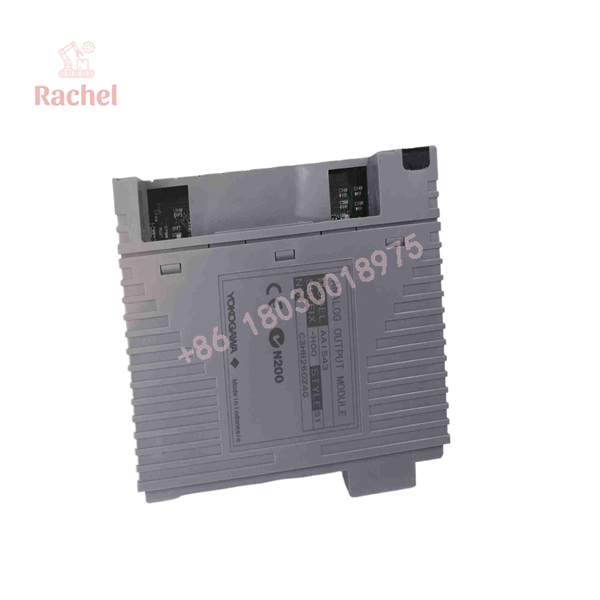

AAI543-H00

Transparency SOP: Quality Assurance & Testing

DCS analog output cards directly actuate final control elements in high-risk plant loops. Every Yokogawa AAI543-H00 module undergoes a rigorous 5-step hardware qualification procedure before entering shippable inventory:

1. Inbound Visual & Mechanical Audit: Comprehensive check of backplane connectors, guide rails, terminal shield plating, and circuit board components.
2. Backplane Boot & Node Diagnostics: Inserting the module into a live CENTUM VP test node (RIO/FIO subrack) to verify 5V DC power-up handshakes and diagnostic LED states.
3. 16-Channel Isolation & Resistance Test: Verifying channel-to-channel galvanic isolation and measuring drive output voltage under maximum rated load resistance (750\ \Omega).
4. Precision 4-20mA Output Calibration: Sweeping DAC output commands across all 16 channels (4mA, 8mA, 12mA, 16mA, 20mA) with calibrated digital multimeters to confirm accuracy within \pm 0.1\% FS.
5. HART Pass-Through Verification: Interfacing with smart positioners to confirm bi-directional HART communication and FieldMate diagnostic polling.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ AAI543 (Output) vs. AAI143 (Input): Ensure you are installing an output card! AAI543 drives current out to actuators (0–750 \Omega load), whereas AAI143 measures current in from field transmitters. Mismatches in slot assignment will trigger hardware mismatch errors in the DCS controller.
• ❗ Verify HART Software Configuration (-H00 vs. -S00): If replacing a non-HART output module (AAI543-S00) with an AAI543-H00, you must update the module type definition in CENTUM System Builder to activate HART pass-through polling.
• ⚠️ Check Output Load Loop Resistance: The AAI543 can drive up to 750\ \Omega per channel. If field wiring runs are excessively long or paired with high-impedance positioners exceeding 750\ \Omega, current saturation will occur, preventing full 20mA output range.
• ❗ Mind Interlocks Before Live Hot-Swapping: While Yokogawa FIO modules support hot-swapping under power, pulling an active AAI543 card will cause all 16 driven 4-20mA loops to drop to 0mA (or fail-safe state). Always put downstream loops into manual, mechanical bypass, or lock-out position prior to card extraction!

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Yokogawa AAI543-H00 hot-swappable in a running CENTUM rack? A: Yes, Yokogawa FIO modules support hot-swapping under power. However, ensure that all 16 final control elements (valves, drives) are placed in manual bypass before extracting the module to avoid unintended process trips.

Q: What is the main difference between AAI543-S00 and AAI543-H00? A: The -S00 variant is a standard analog 4-20mA output module without HART capability. The -H00 variant supports bi-directional HART protocol communication over the 4-20mA signal for remote smart valve positioner diagnostics.

Q: Does the AAI543-H00 require external power to drive the 4-20mA loops? A: No, the AAI543-H00 is an active output card powered directly from the CENTUM system backplane, supplying the current loop voltage required to drive connected field devices.

Q: What warranty is provided with this surplus Yokogawa module? A: Every Yokogawa AAI543-H00 module supplied from our inventory carries a full 12-month direct replacement warranty.

Q: Why purchase new surplus or refurbished AAI543 modules instead of ordering direct from Yokogawa? A: OEM factory lead times for specialized DCS cards can take several months. Sourcing verified surplus or refurbished inventory resolves emergency outages immediately while maintaining 100% OEM hardware compatibility.
